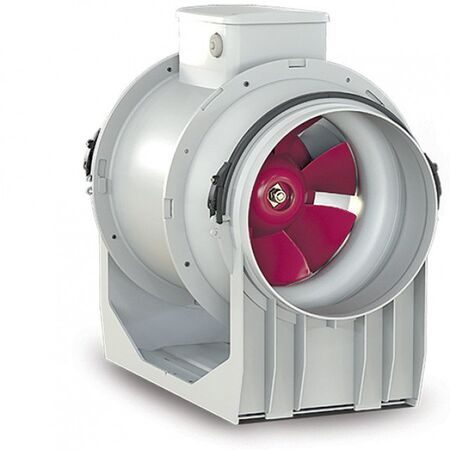

Inline Duct Fan 125mm 25W 250m³ h White Allvent

BRAND: Allvent
SKU: ALV17145
$283.90 List price: $343.60
Free pick up (over 25 kg or over 1 meter)
Contact us for delivery cost
30 Days Return Electricians Unlock Trade Access
Allvent in-line duct fan with 125mm, 250m³ h airflow, 25W. Ideal for bathroom and kitchen ventilation.
Technical Specifications
  • Voltage: 220–240V, 50/60Hz
  • Speed: Low
  • Motor Power: 25W
  • Current: 0.11 Amps
  • RPM: 1570
  • Max Airflow: 250 m³/h
  • Max Pressure: 69.4 Pa
  • Noise Level: 27.5 dB(A) at 3m
  • Max Operating Temperature: 33.9°C
  • Dimensions (H x L x W): 125mm x 150mm x 125mm
  • Weight: 60 kg
Key Features
  • Designed to fit into small spaces
  • Easily removed to facilitate maintenance
  • Optimised air flow for maximised performance and increased efficiency
  • Minimal noise emissions
  • High flow rates and flow around the axis of the impeller
  • Long-life motors with shafts mounted on ball bearings for virtually maintenance-free operation
  • Timer models available
Professional Installation Requirements
  • Professional installation by a qualified electrician or ventilation specialist is recommended to ensure optimal performance and compliance with local regulations.
Applications
  • Residential ventilation for small spaces
  • Ventilation in bathrooms, kitchens, and utility rooms
  • Suitable for residential buildings requiring efficient airflow
Standards & Compliance
  • Complies with AS/NZS 60335 for electrical safety of household and similar electrical appliances
Environmental Benefits
  • Optimised airflow reduces energy consumption
  • Long-life motor reduces waste and replacement frequency
  • Low noise emissions contribute to a better living environment
Warranty Information

Standard manufacturer warranty applies. Please refer to Allvent for specific warranty details.

Available Now

The Allvent Vortice Lineo Series is available now for immediate purchase. Ideal for residential ventilation applications requiring efficient airflow in compact spaces.

Exhaust Fan Airflow Calculator






This calculator follows relevant Australian standards to ensure reliable and compliant performance. It provides an estimated recommendation based on user inputs.
Users must verify specifications before purchasing.
