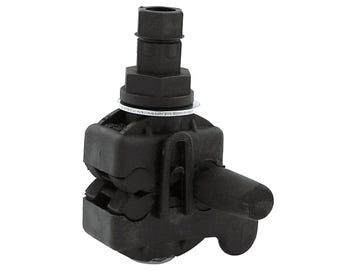

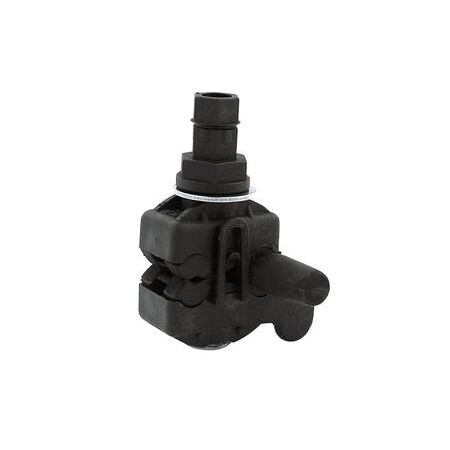

Insulation Piercing Connector 95-10mm² | Live Installation | Corrosion Resistant | ABC Cable by Cabac
Cabac Insulation Piercing Connector 95-10mm2 is designed for tapping off low voltage XLPE insulated Aerial Bundled Cable (ABC) using a unique insulation piercing technique, allowing safe live installation and corrosion resistance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Ins. Piercing Conn. 95-10mm2
Brand: Cabac
SKU: IPC95/10
Alternatively Known As: IPC Connector, Insulation Piercing Connector for ABC, Live Tap Connector, ABC Cable Connector
Technical Specifications
- Suitable for main cable range: 95 mm²
- Suitable for branch cable range: 10 mm²
- Installation torque controlled by hex nut shearing
- Compatible with Aluminium and Copper conductors
- Installation can be performed live without removing insulation
- Dimensions (H x L x W): 30mm x 80mm x 50mm
- Weight: 0.1 kg
Key Features
- Unique insulation piercing technique for easy connection without removing insulation
- Can be installed fully live, enhancing safety and reducing downtime
- Hex nut shears at correct torque to ensure proper installation
- Suitable for all weather applications and corrosion resistant
Professional Installation Requirements
- Installation should be performed by a qualified electrician using a 13 mm spanner to ensure correct torque and safe live connection.
Applications
- Tapping off low voltage XLPE insulated Aerial Bundled Cable (ABC)
- Suitable for Aluminium and Copper cables
- Outdoor overhead line electrical connections
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Reduces need for cable stripping and additional materials, minimizing waste
- Corrosion resistant design extends product life, reducing replacement frequency
Warranty Information
Standard manufacturer warranty applies. Please refer to Cabac warranty terms for details.
Available Now
The Cabac Insulation Piercing Connector 95-10mm2 is available now for immediate purchase. Ideal for overhead line electrical connections and ABC cable tapping.
