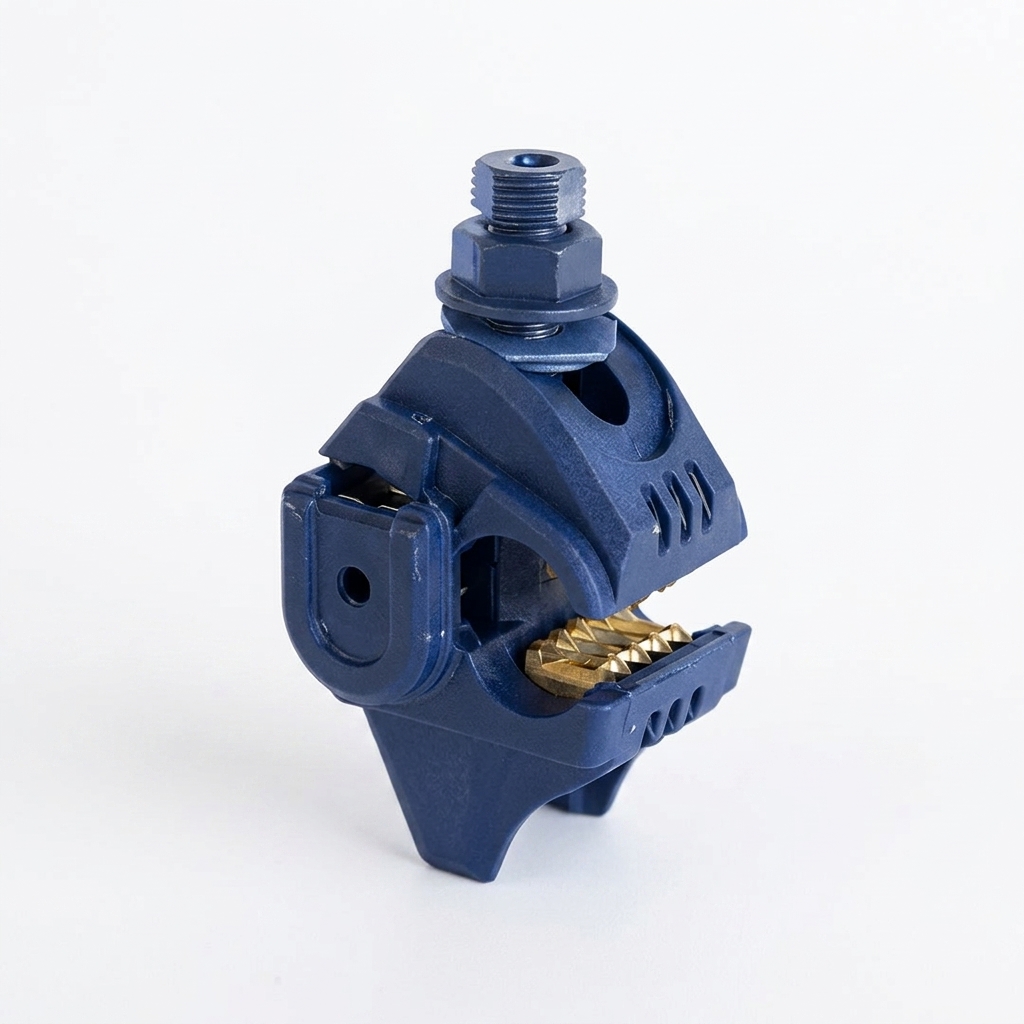

Insulation Piercing Connector IPC 7-95 AL 6-35mm² Repelec
The Insulation Piercing Connector IPC 7-95 AL 6-35mm² is designed for safe and efficient connections in electrical distribution networks.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Insulation Piercing Connector IPC 7-95 AL/6-35mm² | UV Resistant | Tool-Free Installation | by Repelec
Brand: Repelec
SKU: DULK471
Alternatively Known As: Insulation Piercing Connector, IPC Connector, LV ABC Connector, DULK471, Overhead Line Connector
Technical Specifications
- Main conductor size: 7-95mm²
- Branch conductor size: 6-35mm²
- Compatible with aluminium and copper conductors
- Insulation material: UV and weather resistant polymer
- Shear head bolt for secure installation
- Maximum voltage: 1kV (Low Voltage applications)
- Operating temperature: -30°C to +60°C
- Dimensions (H x L x W): 80mm x 40mm x 60mm
- Weight: 0.25 kg
Key Features
- Suitable for aluminium and copper conductors
- Accommodates main conductor size 7-95mm² and branch conductor size 6-35mm²
- Fully insulated piercing connector for safe live line installation
- UV and weather resistant housing
- Corrosion-resistant materials for long-term durability
- Tool-free installation with shear head bolt
Professional Installation Requirements
- Installation should be performed by a licensed electrician or trained professional to ensure safety and compliance with local regulations.
Applications
- Electrical distribution networks
- Overhead low voltage power lines
- Street lighting connections
- Residential and commercial electrical installations
Standards & Compliance
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Reduces the need for conductor stripping, minimizing waste
- UV and weather resistant for long service life
- Corrosion-resistant materials reduce maintenance and replacement frequency
Warranty Information
12 months warranty against manufacturing defects.
Available Now
The Repelec IPC 7-95 AL/6-35mm² Insulated Piercing Connector (DULK471) is available for immediate purchase. Ideal for overhead low voltage power line connections in residential, commercial, and utility applications.
