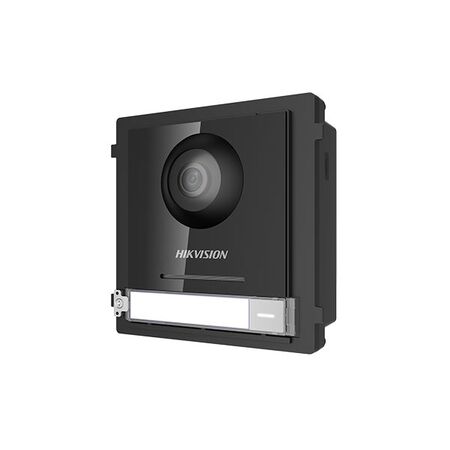

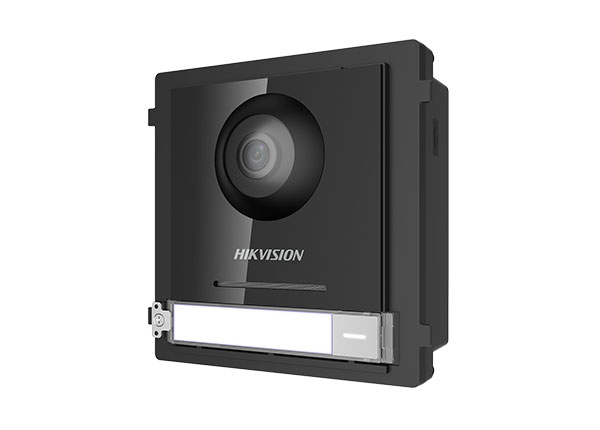

Intercom Door Station DS-KD8003-IME1 Hikvision
Hikvision intercom door station from the DS-KD8003 modular range. Ideal for video intercom installs at building entries.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Hikvision DS-KD8003-IME1 Video Intercom Module, Hikvision Modular Door Station, IP Video Entry Panel
Technical Specifications
- Camera: 2 MP fisheye video camera
- Video Resolution: Main stream 1920 × 1080; sub stream 720 × 480
- Field of View: Horizontal 180°; vertical 96°
- Video Compression: H.264
- Audio: Built-in omnidirectional microphone and loudspeaker
- Audio Compression: G.711 U at 64 Kbps
- Network Interface: 10/100 Mbps self-adaptive Ethernet
- Network Protocols: TCP/IP and RTSP
- Power Supply: 12 VDC or IEEE 802.3af PoE
- Power Consumption: 4 W maximum
- Relay Outputs: 2 relays, rated up to 30 VDC and 1 A
- Protection Rating: IP65
- Operating Temperature: -40°C to 55°C
- Installation: Flush or surface mounting
- Dimensions (H x L x W): 99.8mm x 98mm x 43.9mm
- Weight: 0.375 kg
Key Features
- 2 MP high-definition video intercom functionality
- Wide-angle fisheye camera for entrance monitoring
- Integrated infrared supplementary lighting for low-light operation
- Built-in microphone and speaker with noise suppression and echo cancellation
- Access control and door-release integration
- Two relay outputs for lock or gate control
- Tamper alarm input
- Modular design compatible with Hikvision DS-KD series sub-modules
- Single physical call button with customisable nameplate
- Suitable for outdoor building-entry installations
Professional Installation Requirements
- Installation should be performed by a suitably qualified security or communications technician. Connection to electric locks, gates or other access-control equipment must follow the device wiring instructions and applicable Australian electrical and communications requirements.
Applications
- Apartment and multi-residential building entrances
- Commercial and office building access points
- Residential gates and entry doors
- Apartment complexes and gated communities
- Integrated video intercom and electronic access-control systems
- Outdoor visitor communication and door-release applications
Standards & Compliance
- AS/NZS 62368.1 — relevant Australian/New Zealand safety standard for audio, video, information and communications technology equipment; product-specific Australian conformity should be verified before installation
- AS/NZS 4417.2 — relevant framework for electrical equipment classification and Regulatory Compliance Mark requirements; Australian RCM status should be confirmed for the supplied unit
Environmental Benefits
- PoE and low-voltage 12 VDC operation can simplify system power distribution and reduce cabling requirements
- Maximum power consumption of approximately 4 W supports low operating energy use
- IP65-rated construction is designed for outdoor exposure and may extend service life in suitable installations
- Modular design allows individual intercom functions or sub-modules to be upgraded or replaced without replacing the complete entry system
Warranty Information
Hikvision Australia warranty support is provided through authorised distribution partners. The published Hikvision Australia five-year premium warranty list does not specifically identify the DS-KD8003-IME1, so the applicable warranty term should be confirmed with the authorised Australian seller at purchase.
Available Now
Available through Hikvision and authorised Australian security, access-control and intercom distributors. Regional firmware, support and warranty eligibility should be confirmed for Australian-supplied units.
