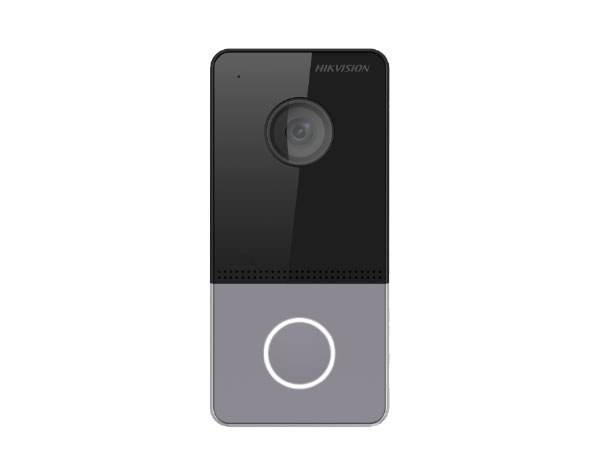

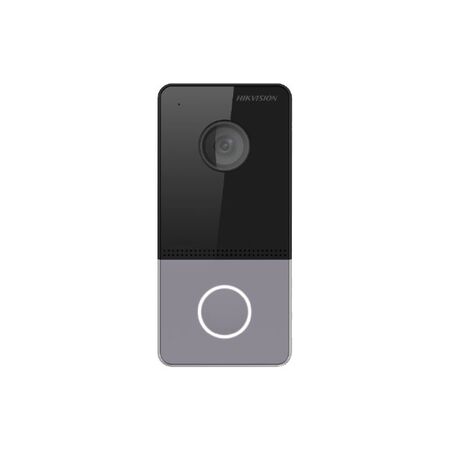

Intercom Door Station DS-KV6113-WPE1 Hikvision
Hikvision intercom door station from the DS-KV6113 range. Ideal for video intercom installs at building entries.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Hikvision Villa Door Station, Hikvision IP Video Door Station, Hikvision Intercom Entry Panel
Technical Specifications
- Camera: 2 MP HD camera
- Video resolution: Main stream 1920 × 1080p or 720p; sub stream 704 × 576
- Field of view: Horizontal 129°; vertical 75°
- Video compression: H.264
- Night vision: IR supplementary lighting
- Wide dynamic range: True WDR
- Audio: Built-in omnidirectional microphone and loudspeaker
- Audio processing: Noise suppression and echo cancellation
- Card reader: Built-in Mifare card reader
- User capacity: Up to 2,000 users
- Network interface: 10/100 Mbps Ethernet
- Wireless connectivity: Wi-Fi 802.11b/g/n
- Power supply: Standard IEEE 802.3af PoE or 12 VDC
- Power consumption: Less than 10 W
- Lock control: 1 relay, maximum 30 VDC, 2 A
- Door contact input: 1
- Exit button input: 1
- Installation: Surface mounting
- Ingress protection: IP65
- Operating temperature: -40°C to +55°C
- Operating humidity: 10% to 95%, non-condensing
- Dimensions (H x L x W): 138mm x 27mm x 65mm
- Weight: 0.265 kg
Key Features
- One-touch visitor calling to a compatible indoor station
- Remote door release through the intercom system or compatible Hik-Connect ecosystem
- 2 MP camera with IR illumination and wide-angle viewing
- Built-in Mifare card reader for access control
- Wi-Fi connectivity for reduced installation cabling
- Standard PoE or 12 VDC operation
- Integrated microphone and loudspeaker with echo cancellation
- Weather-resistant IP65 housing for outdoor entry points
- Web-based configuration support
- Tamper input and door contact interface
Professional Installation Requirements
- Installation and commissioning should be completed by a suitably qualified security or electrical installer. Use appropriate low-voltage, network and door-release wiring, with any mains-powered equipment and electrical installation carried out in accordance with AS/NZS 3000:2018 and local requirements.
Applications
- Residential villa and townhouse entrances
- Small commercial building entry points
- Office and reception access control
- Gated properties and pedestrian entry gates
- Video visitor communication and remote door release
- Outdoor IP-based intercom installations
Standards & Compliance
- Applicable electronic access control guidance: AS/NZS IEC 60839.11.2:2019
- Electrical installation and wiring guidance where applicable: AS/NZS 3000:2018
Environmental Benefits
- PoE operation can reduce separate power cabling and simplify installation material use
- Low power consumption of less than 10 W supports efficient continuous operation
- Durable IP65 outdoor construction can extend service life and reduce replacement waste
- Electronic components should be recycled through appropriate e-waste channels at end of life
Warranty Information
Hikvision Australia advertises a five-year manufacturer warranty for eligible products manufactured after 1 March 2022. Confirm model and purchase-channel eligibility with the authorised Australian distributor before sale.
Available Now
Available through Hikvision and authorised Australian security, access-control and electrical distributors.
