Trade Discount 25%

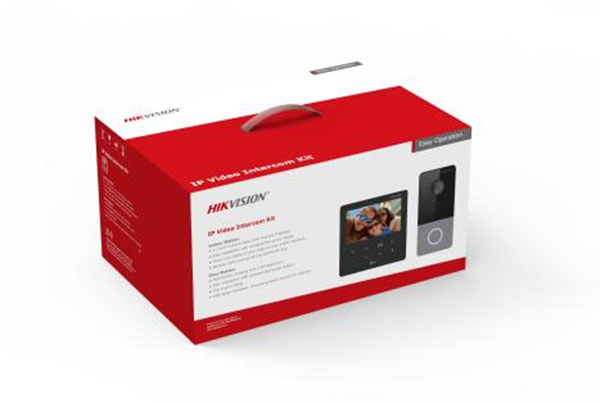

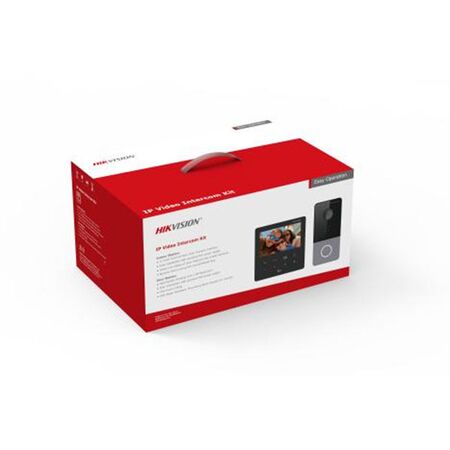

Intercom Kit Value Series Hikvision
Hikvision Value Series intercom kit features the Value Series intercom range. Ideal for intercom installs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Hikvision DS-KIS606-P, Hikvision Villa Intercom Kit, Hikvision IP Video Door Entry Kit
Technical Specifications
- Kit Model: DS-KIS606-P
- Included Devices: DS-KV6113-PE1(C) door station, DS-KH6110-WE1 indoor monitor and DS-KABV6113-RS rain shield
- Camera Resolution: 2MP, up to 1920 × 1080p
- Indoor Display: 4.3-inch colour screen, 480 × 272 resolution
- Field of View: 131° horizontal, 78° vertical
- Night Vision: Infrared illumination up to 3 m
- Connectivity: Ethernet, Wi-Fi and SIP protocol support
- Power Supply: 12 VDC or IEEE 802.3af PoE
- Door Station Protection: IP65
- Access Control: MIFARE card reader, up to 10,000 cards and 2,000 users
- Door Release: One relay output, rated up to 30 VDC, 2 A
- Audio: Two-way audio with noise suppression and echo cancellation
- Expansion Capacity: Supports up to 16 linked indoor stations
- Operating Temperature: Approximately -40°C to +55°C
- Dimensions (H x L x W): 138mm x 65mm x 27mm
- Weight: 0.8 kg
Key Features
- Complete one-to-one IP video intercom kit for villa and residential entry applications
- 2MP outdoor door station with one-press call button
- Compact 4.3-inch indoor monitor with touch controls
- Remote answering and door-release control through the Hik-Connect mobile application
- Built-in MIFARE card reader for controlled entry
- Supports either 12 VDC power or PoE network connection
- IP65-rated outdoor station for protection against dust and water ingress
- Includes surface-mount rain shield and two power supplies
- Expandable with additional compatible indoor stations
Professional Installation Requirements
- Installation and configuration should be performed by a suitably qualified security or electrical installer. Any mains-powered equipment, network cabling and electric lock connection must comply with applicable Australian requirements, including AS/NZS 3000 where relevant.
Applications
- Residential villa and home entry systems
- Small office and commercial premises access control
- Single-entrance video door entry
- Remote visitor identification and door release
- Integration with Hikvision security and Hik-Connect systems
Standards & Compliance
- AS/NZS IEC 60839.11.1:2019, electronic access control systems and components, where applicable
- AS/NZS IEC 60839.11.2:2019, application guidelines for electronic access control systems
- AS/NZS 3000:2018, electrical installations, where mains-powered equipment or associated wiring is installed
Environmental Benefits
- PoE capability can reduce the need for separate power cabling and associated installation materials
- Low-voltage operation can support efficient distributed power arrangements
- Durable outdoor-rated construction may extend service life and reduce replacement waste
Warranty Information
Hikvision intercom systems supplied through authorised Australian distributors are commonly covered by a 3-year back-to-base manufacturer warranty; confirm the applicable terms with the supplying distributor.
Available Now
Available through Hikvision and authorised Australian distributors.
