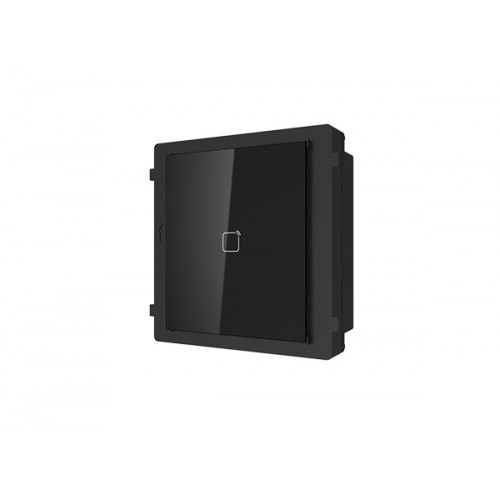

Intercom Mifare Card Reader Module Hikvision
Hikvision intercom Mifare card reader module for modular door stations. Ideal for video intercom installs needing card entry.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Hikvision Modular Door Station Card Reader, MIFARE-1 Card Reader Module, KD8 Card Reader Module
Technical Specifications
- Model: DS-KD-M
- Card Technology: MIFARE-1
- Card Frequency: 13.56 MHz
- Compatibility: Hikvision KD8 modular door station systems
- Installation: Flush mounting or surface mounting
- Ingress Protection: IP65
- Power Consumption: 0.8 W
- Operating Temperature: -40°C to +55°C
- Operating Humidity: 10% to 95% RH, non-condensing
- Application Environment: Outdoor
- Net Weight: 160 g
- Dimensions (H x L x W): 100mm x 33.7mm x 98.5mm
- Weight: 0.16 kg
Key Features
- Enables card-based door unlocking when integrated with a compatible Hikvision modular door station
- Supports MIFARE-1 cards at 13.56 MHz
- Designed for Hikvision IP, two-wire IP and modular intercom configurations
- IP65-rated housing for outdoor door station applications
- Suitable for flush-mount and surface-mount installations
- Modular design allows the card reader to be added to a configurable door station
Professional Installation Requirements
- Installation and configuration should be completed by a suitably qualified security or low-voltage technician. The module must be installed with a compatible Hikvision modular door station and mounting bracket, with access-control wiring completed in accordance with the system manufacturer's instructions.
Applications
- Residential apartment and villa entrances
- Commercial building access points
- Gated communities and controlled residential developments
- Schools, clinics and office entrances
- Door-entry systems requiring MIFARE card access
Standards & Compliance
- AS/NZS IEC 60839.11.2:2019 provides applicable guidance for the installation and operation of electronic access control systems and accessory equipment; product-specific certification was not stated in the manufacturer datasheet.
Environmental Benefits
- Low operating power consumption of 0.8 W can help minimise energy use in continuously operating access-control systems
- IP65-rated construction supports longer service life in suitable outdoor installations, reducing premature replacement waste
- Modular design allows the reader module to be replaced or upgraded separately rather than replacing the complete door station
Warranty Information
Warranty is subject to Hikvision Australia authorised-distributor terms and the applicable product contract. Hikvision Australia advises confirming the product warranty period with the authorised distributor before purchase; the published RMA policy does not state a universal period for this model.
Available Now
Available through Hikvision and authorised Australian security, intercom and access-control distributors.
