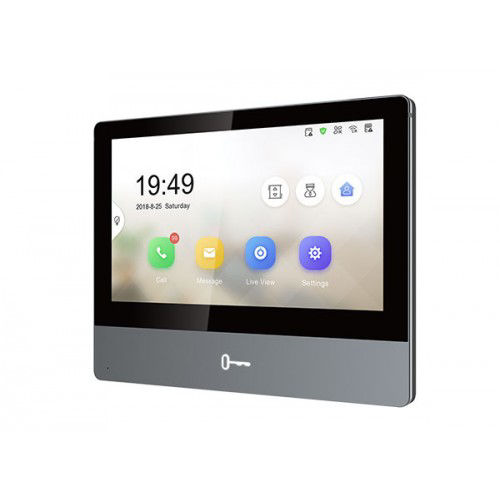

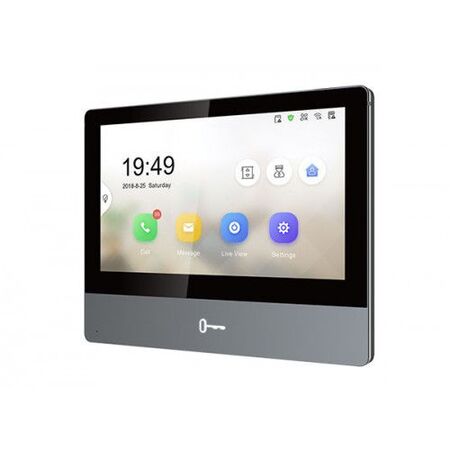

Intercom Room Station Gen2 7 Inch Hikvision
Hikvision Gen2 intercom room station features a 7 inch screen. Ideal for video intercom installs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Hikvision 7 Inch Video Intercom Indoor Station, Hikvision Network Indoor Station, Hikvision Pro Series Indoor Station
Technical Specifications
- Model: DS-KH6320-WTE1
- Display: 7-inch colour TFT capacitive touch screen
- Display Resolution: 1024 × 600
- Operating System: Embedded Linux
- Memory: 128 MB RAM, 32 MB flash
- Network Interface: 1 x RJ-45 10/100 Mbps self-adaptive port
- Wireless Network: 2.4 GHz Wi-Fi, IEEE 802.11b/g/n
- Network Protocols: TCP/IP, SIP, RTSP
- Audio: Built-in omnidirectional microphone and loudspeaker
- Audio Compression: G.711U, G.711A and G.722.1 at 64 Kbps
- Alarm Inputs: 8
- Relay Outputs: 2, maximum 30 VDC 0.3 A
- RS-485: 1 half-duplex interface
- TF Card Support: Up to 128 GB, subject to firmware and card compatibility
- Power Supply: IEEE 802.3af standard PoE or 12 VDC/1 A
- Power Consumption: Up to 6 W
- Operating Temperature: -10°C to 55°C
- Operating Humidity: 10% to 90% RH, non-condensing
- Installation: Surface mounted
- Application Environment: Indoor
- Dimensions (H x L x W): 140mm x 200mm x 15.1mm
- Weight: 0.355 kg
Key Features
- 7-inch colour touchscreen for video intercom operation
- Supports video calls with compatible Hikvision door stations and indoor extensions
- Remote door release and visitor communication through Hik-Connect mobile control
- Live viewing of linked door stations and network cameras
- Supports Wi-Fi connectivity as well as wired Ethernet
- Built-in noise suppression and echo cancellation
- Eight alarm inputs and two relay outputs for integrated security functions
- Supports up to 16 linked indoor extensions, 17 doorphones and 16 network cameras
- TF card support for captured images and alarm records
Professional Installation Requirements
- Installation should be carried out by a suitably qualified security or communications technician. PoE, low-voltage power, network, alarm and relay wiring must follow the manufacturer’s instructions. Any mains-voltage electrical work must be completed by a licensed electrician in accordance with applicable Australian requirements.
Applications
- Residential video intercom systems
- Apartment and multi-dwelling access control
- Office and commercial building entry systems
- Indoor monitoring of compatible Hikvision door stations and cameras
- Security systems requiring alarm inputs, relay outputs or elevator-control integration
Standards & Compliance
- AS/NZS 62368.1:2018 is the applicable safety standard framework for audio/video and information and communications technology equipment; product-specific Australian conformity should be confirmed from the supplier.
- AS/NZS 3820 applies to the essential safety requirements for electrical equipment; installation and supply requirements should be verified for the Australian market.
Environmental Benefits
- Low operating power consumption of up to 6 W helps reduce energy use during continuous operation.
- Electronic solid-state construction and indoor installation can support a long service life, reducing replacement frequency and associated waste.
- TF-card storage and network connectivity can reduce the need for separate recording hardware in suitable installations.
Warranty Information
Hikvision Australia warranty support is subject to the applicable product warranty and contract terms. Confirm the warranty period and conditions with the authorised Australian distributor before purchase.
Available Now
Available through Hikvision and authorised Australian security, access-control and communications distributors.
