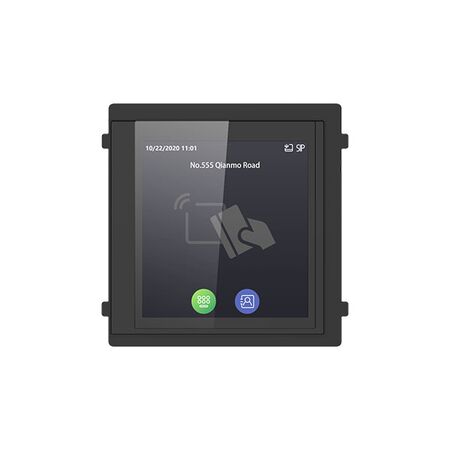

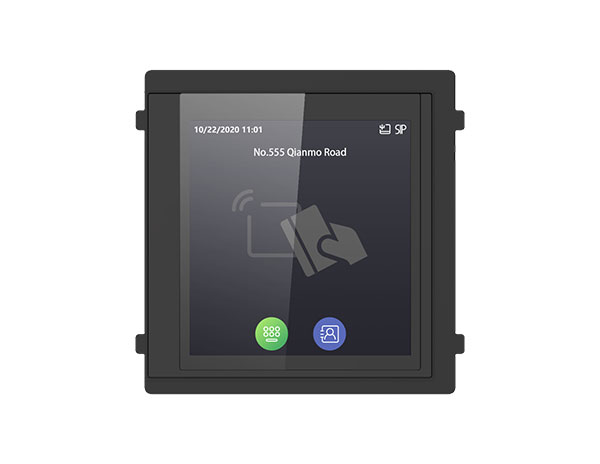

Intercom Touch Display Module Hikvision
Hikvision intercom touch display module features a touch display. Ideal for Hikvision intercom installs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Hikvision Modular Door Station Touch and Display Module, Hikvision Intercom Touchscreen Module, DS-KD-TDM Mifare Display Module
Technical Specifications
- Display: 4-inch IPS touch screen
- Display Resolution: 480 × 480 pixels
- Brightness: Adjustable, maximum 500 cd/m²
- Operating System: Linux
- Memory: 128 MB RAM, 32 MB ROM
- Card Reader: 13.56 MHz Mifare card reader
- Card Reading Distance: Up to 2 cm
- Wireless Network: AP mode
- Interfaces: Two cascading interfaces, reserved TF card slot, 8-bit DIP switch
- Power Supply: 12 VDC supplied by the main module
- Power Consumption: ≤ 4 W
- Protection Rating: IP65 and IK08
- Operating Temperature: -20°C to 60°C
- Operating Humidity: 10% to 95%, non-condensing
- Installation: Flush mounting or surface mounting
- Capacity: Stores up to 2,000 contacts
- Dimensions (H x L x W): 100mm x 35mm x 100mm
- Weight: 0.23 kg
Key Features
- 4-inch colour touchscreen for dialling, PIN-code unlocking, contact lists and advertising content
- Integrated 13.56 MHz Mifare card reader
- Supports up to 2,000 stored contacts
- IP65 weather protection and IK08 impact resistance
- Adjustable display brightness up to 500 cd/m²
- Supports multiple languages
- Designed for modular Hikvision IP video intercom door stations
- Suitable for flush or surface installation
Professional Installation Requirements
- Installation should be performed by a qualified security or electrical technician. The module must be integrated with a compatible Hikvision main module and supplied with 12 VDC in accordance with the manufacturer’s wiring and installation instructions.
Applications
- Residential apartment and townhouse entry systems
- Commercial and office building intercoms
- Multi-tenant access control installations
- Hikvision modular IP video intercom door stations
- Door entry systems requiring contact-list, PIN and Mifare access functions
Standards & Compliance
- AS/NZS 62368.1:2026 — applicable safety standard for audio, video, information and communication technology equipment; confirm product-specific declaration and RCM status for Australian-market stock
Environmental Benefits
- Low operating power consumption of up to 4 W can reduce energy use during continuous operation
- IP65 and IK08 protection can extend service life and reduce replacement waste in exposed installations
- Electronic components are identified by the manufacturer as subject to RoHS requirements in applicable regional documentation
Warranty Information
Hikvision warranty coverage is subject to the applicable Australian authorised-distributor terms. Australian Hikvision sellers commonly specify a three-year warranty for genuine local products; confirm the warranty period and RMA conditions at purchase.
Available Now
Available through Hikvision and authorised Australian security and electrical distributors, subject to regional model and stock availability.
