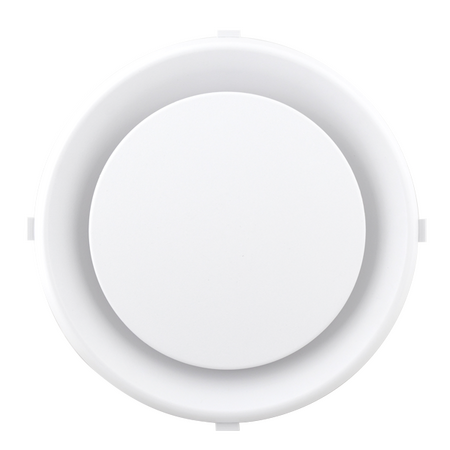

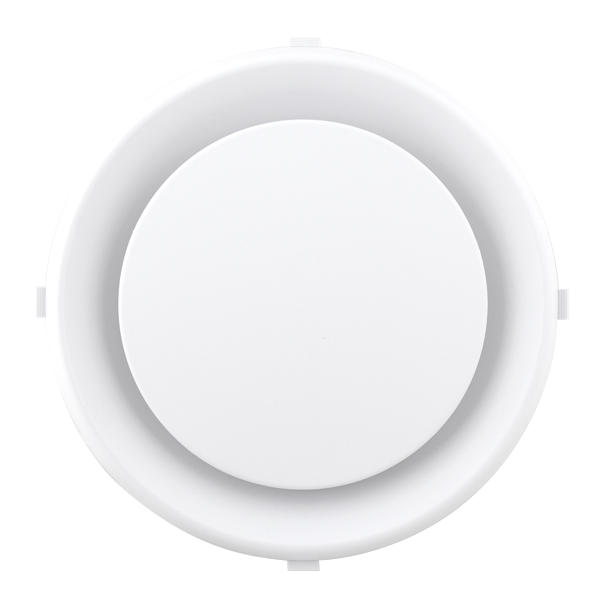

Internal Ceiling Louvre 250mm Adjustable | Discreet Design | High-Quality Galvanised Steel | Dual Slot Option by Fantech
Enhance your ventilation with the Internal Ceiling Louvre 250mm Adjustable, featuring a discreet design and high-quality galvanised steel construction. Ideal for residential bathrooms and ensuites, it offers dual slot options for increased airflow and works seamlessly with various ducted ventilation systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Internal Ceiling Louvre 250mm Adjustable | Discreet Design | High-Quality Galvanised Steel | Dual Slot Option by Fantech
Brand: Fantech
SKU: IALG250
Alternatively Known As: Internal Ceiling Vent, Adjustable Ceiling Grille, Bathroom Ceiling Louvre, Ventilation Grille 250mm
Technical Specifications
- Duct Diameter: 250mm
- Oval Spigot Diameter AØ: 245mm
- Oval Spigot Diameter BØ: 390mm
- Depth C: 16mm
- Depth D: 100mm
- Hole Cutout Diameter: 345mm
- Single slot cut out size: 525 x 50mm
- Dual slot cut out size: 525 x 95mm
- Dimensions (H x L x W): 50mm x 250mm x 525mm
- Weight: 1.5 kg
Key Features
- Discreet design that blends with architecturally designed bathrooms and ensuites
- Works with duct mounted, roof mounted, or external wall mounted fans
- High quality galvanised steel cushion head box
- Oval spigot allows 150mm duct connection
- Available in single slot or dual slot for additional airflow
Professional Installation Requirements
- Installation by a qualified HVAC technician or licensed tradesperson is recommended to ensure proper fit and optimal ventilation performance.
Applications
- Residential: Bathrooms, ensuites, internal ceiling ventilation
- Commercial: Suitable for ducted ventilation systems in various buildings
Standards & Compliance
- Complies with AS/NZS 1680 – Interior Lighting and Workplace Illumination
Environmental Benefits
- Enhances ventilation efficiency reducing energy consumption of ventilation fans
- Durable galvanised steel construction promotes long product life and reduces waste
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Fantech Internal Ceiling Louvre 250mm Adjustable is available now for immediate purchase. Ideal for residential bathroom and ensuite ventilation applications.
