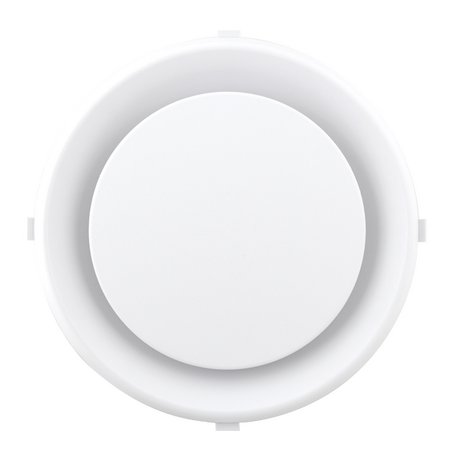

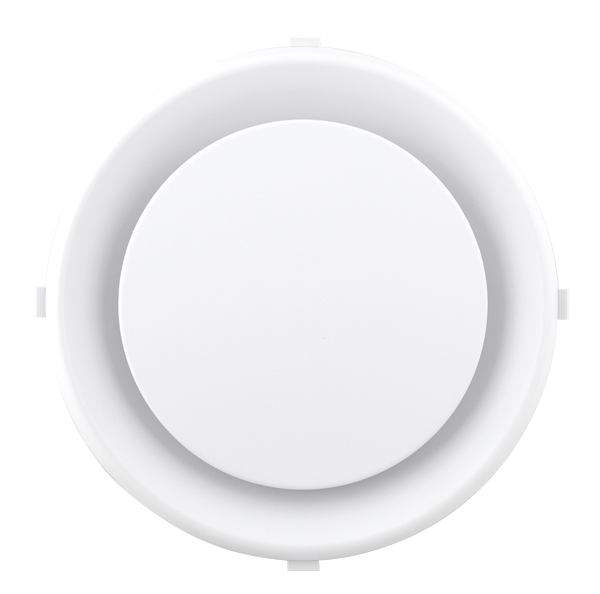

Internal Ceiling Louvre 300mm Adjustable | Galvanised Steel | Dual Slot Option | Discreet Design by Fantech
Enhance your ventilation with the Internal Ceiling Louvre, featuring a 300mm duct diameter and high-quality galvanised steel construction. Ideal for residential and commercial applications, this adjustable louvre offers a discreet design and dual slot option for improved airflow.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Internal Ceiling Louvre 300mm Adjustable | Galvanised Steel | Dual Slot Option | Discreet Design by Fantech
Brand: Fantech
SKU: IALG300
Alternatively Known As: Internal Ceiling Vent, Ceiling Air Louvre, Adjustable Ceiling Grille
Technical Specifications
- Duct Diameter: 300mm
- Oval Spigot Diameter: 150mm duct connection
- Single Slot Cut Out Size: 525 x 50mm
- Dual Slot Cut Out Size: 525 x 95mm
- Material: Galvanised steel cushion head box
- Dimensions (H x L x W): 50mm x 300mm x 525mm
- Weight: 1.5 kg
Key Features
- Discreet design that blends with architecturally designed bathrooms or ensuites
- Works with duct mounted, roof mounted, or external wall mounted fans
- High quality galvanised steel cushion head box
- Oval spigot allows 150mm duct connection
- Available in single slot or dual slot for additional airflow
Professional Installation Requirements
- Professional installation by a qualified HVAC technician or tradesperson is recommended to ensure proper fit and ventilation performance.
Applications
- Residential: Bathrooms, ensuites, internal ceiling ventilation
- Commercial: Suitable for ducted ventilation systems in various buildings
Standards & Compliance
- Complies with AS/NZS 1680 – Interior Lighting and Workplace Illumination
Environmental Benefits
- Enhances ventilation efficiency reducing energy consumption of HVAC systems
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Fantech Internal Ceiling Louvre 300mm Adjustable is available for immediate purchase, ideal for residential and commercial internal ventilation applications.
