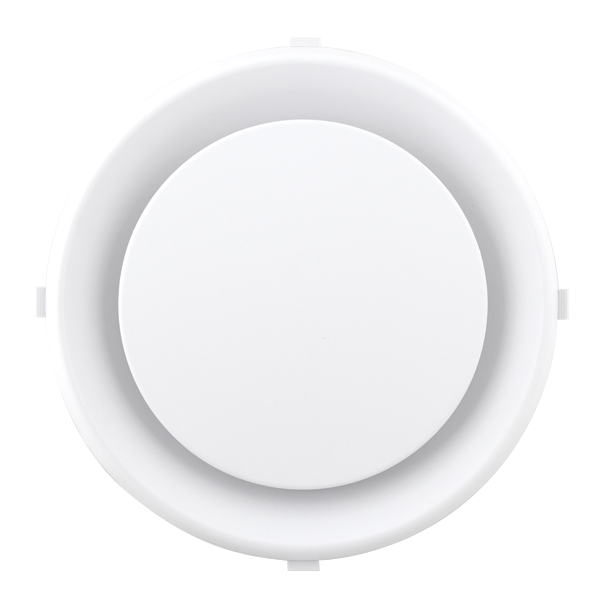

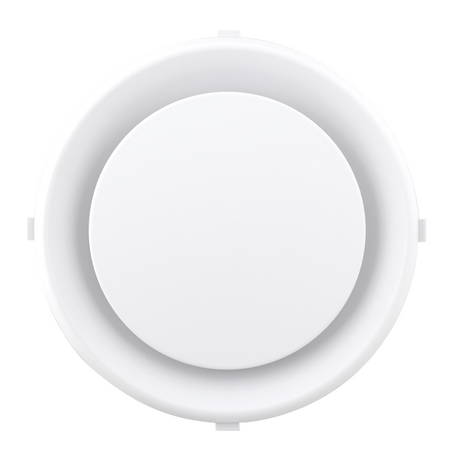

Internal Grille Round 100mm | Galvanised Steel | Dual Slot Option | Ideal for Bathrooms by Fantech
Enhance your bathroom ventilation with this 100mm internal grille, featuring a high-quality galvanised steel construction and dual slot option for increased airflow. Perfect for residential bathrooms and ensuites, it ensures efficient ventilation and improved indoor air quality.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Internal Grille Round 100mm | Galvanised Steel | Dual Slot Option | Ideal for Bathrooms by Fantech
Brand: Fantech
SKU: IDVSS100
Alternatively Known As: Internal Ventilation Grille, Bathroom Vent Grille, Round Duct Grille 100mm
Technical Specifications
- Duct Diameter: 100mm
- AØ (Outer Diameter): 140mm
- C (Depth): 58mm
- Single slot cut out size: 525 x 50mm
- Dual slot cut out size: 525 x 95mm
- Material: Galvanised steel cushion head box
- Oval spigot allows 150mm duct connection
- Dimensions (H x L x W): 58mm x 140mm x 140mm
- Weight: 0.5 kg
Key Features
- Discretely blends into architecturally designed bathrooms or ensuites
- High quality galvanised steel cushion head box
- Oval spigot allows 150mm duct connection
- Available with single slot or dual slot for additional airflow
Professional Installation Requirements
- Installation by a qualified HVAC technician or licensed professional is recommended to ensure proper fit and ventilation performance.
Applications
- Residential bathrooms and ensuites
- Works with duct mounted fans
- Works with roof mounted fans
- Works with external wall mounted fans
Standards & Compliance
- Complies with AS/NZS 1680 – Interior Lighting and Workplace Illumination
Environmental Benefits
- Supports efficient ventilation to improve indoor air quality
- Durable materials reduce need for frequent replacement
Warranty Information
Standard manufacturer warranty applies. Please refer to Fantech warranty terms.
Available Now
The Fantech Internal Grille Round Stainless 100mm is available for immediate purchase, ideal for residential bathroom and ensuite ventilation applications.
