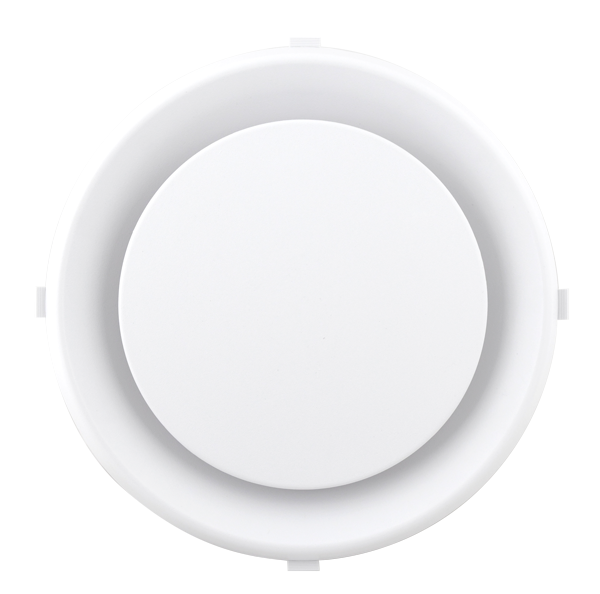

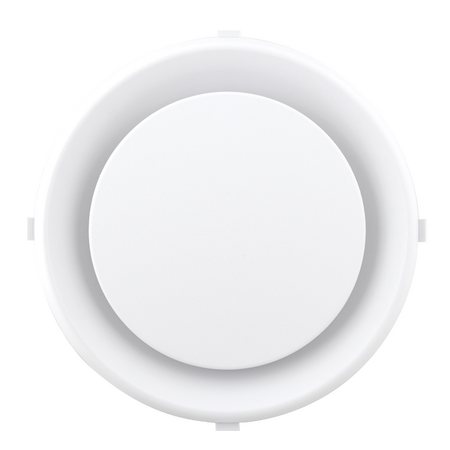

Internal Grille Round 150mm | High Quality Galvanised Steel | Dual Slot Airflow | Discreet Design by Fantech
Enhance your bathroom ventilation with this 150mm internal grille, featuring high-quality galvanised steel construction and dual slot airflow options. Ideal for residential bathrooms and ensuites, it discreetly blends into your decor while improving air circulation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Internal Grille Round 150mm | High Quality Galvanised Steel | Dual Slot Airflow | Discreet Design by Fantech
Brand: Fantech
SKU: IDVSS150
Alternatively Known As: Internal Ventilation Grille, Round Vent Cover, Bathroom Air Grille, Duct Grille 150mm
Technical Specifications
- Duct Diameter: 150mm
- Oval Spigot Diameter (AØ): 217mm
- Depth (C): 70mm
- Single slot cut out size: 525 x 50mm
- Dual slot cut out size: 525 x 95mm
- Material: Galvanised steel cushion head box
- Dimensions (H x L x W): 70mm x 217mm x 217mm
- Weight: 0.5 kg
Key Features
- Discretely blends into architecturally designed bathrooms or ensuites
- High quality galvanised steel cushion head box
- Oval spigot allows 150mm duct connection
- Available with single slot or dual slot for additional airflow
Professional Installation Requirements
- Installation by a qualified HVAC technician or licensed professional is recommended to ensure proper fit and ventilation performance.
Applications
- Residential bathrooms and ensuites
- Works with duct mounted fans
- Works with roof mounted fans
- Works with external wall mounted fans
Standards & Compliance
- Complies with AS/NZS 1680 – Interior Lighting and Workplace Illumination
Environmental Benefits
- Enhances ventilation efficiency reducing energy consumption of fans
- Durable stainless steel construction reduces need for frequent replacements
Warranty Information
Standard manufacturer warranty applies. Please refer to Fantech warranty policy for details.
Available Now
The Fantech Internal Grille Round Stainless 150mm is available for immediate purchase, ideal for residential bathroom and ensuite ventilation applications.
