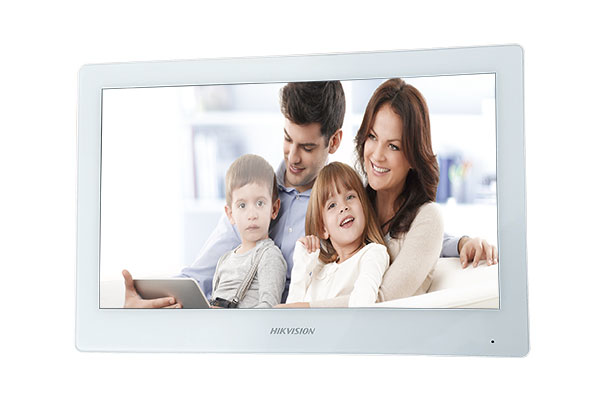

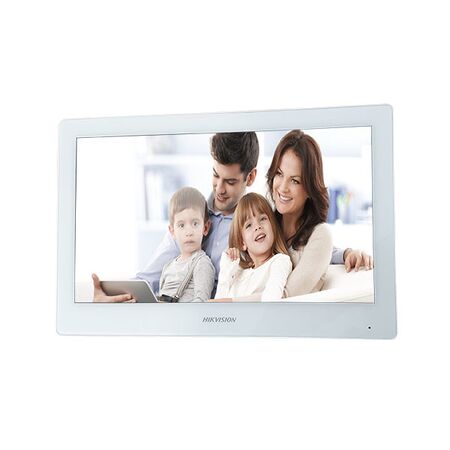

IP Intercom Room Station 10 Inch White Hikvision
Hikvision IP intercom room station features a 10 inch screen and white finish. Ideal for video intercom installs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Hikvision 10-inch IP Indoor Station, Hikvision All-in-One Indoor Station, Hikvision Video Intercom Room Station
Technical Specifications
- Model: DS-KH9510-WTE1(B)
- Display: 10.1-inch colour IPS touchscreen
- Display Resolution: 1024 x 600
- Operating System: Built-in Android
- Network Interface: 1 x RJ-45, 10/100 Mbps self-adaptive
- Network Protocols: TCP/IP, SIP and RTSP
- Wireless Connectivity: 2.4 GHz Wi-Fi, IEEE 802.11b/g/n
- Power Supply: 12 VDC, 1 A or IEEE 802.3af standard PoE
- Maximum Power Consumption: 12 W
- Alarm Inputs: 8
- Alarm Output: 1
- Lock Control: 1 relay, maximum 30 VDC, 0.3 A, plus 1 high/low-level relay
- TF Card Support: Up to 128 GB
- Installation: Surface mounting
- Operating Temperature: -10°C to 50°C
- Operating Humidity: 10% to 90% relative humidity, non-condensing
- Application Environment: Indoor
- Dimensions (H x L x W): 166mm x 254mm x 26.65mm
- Weight: 0.875 kg
Key Features
- 10.1-inch touchscreen for video intercom and access control functions
- Built-in Hik-Connect application for integrated Hikvision device management
- Supports Android application installation and third-party software integration
- Two-way audio and video communication with compatible door stations
- Live viewing of compatible Hikvision cameras and door stations
- Standard PoE connectivity simplifies networked installation
- Wi-Fi connectivity for flexible network integration
- Supports remote door unlocking through compatible intercom systems
- White finish suitable for residential, apartment and commercial interiors
Professional Installation Requirements
- Installation should be performed by a suitably qualified security or communications installer. Connection to door-lock relay circuits, auxiliary 12 VDC power and network infrastructure should follow the manufacturer's instructions and applicable Australian electrical and communications requirements.
Applications
- Residential video intercom systems
- Apartment and multi-dwelling access control
- Commercial office entrances and reception areas
- Clinics, schools and other controlled-access buildings
- Indoor monitoring and management of compatible Hikvision security devices
Standards & Compliance
- AS/NZS 62368.1 is the relevant safety standard for audio, video, information and communication technology equipment; verify the product's Australian RCM and certification documentation before installation.
Environmental Benefits
- Standard PoE can reduce the need for separate power cabling and power supplies in compatible installations
- Low maximum power consumption of 12 W supports reduced operating energy use
- Durable electronic hardware can reduce replacement frequency and associated waste when correctly installed and maintained
Warranty Information
Hikvision warranty coverage is subject to the applicable Australian distributor or supply contract terms. Purchase through an authorised Australian Hikvision distributor for local warranty and RMA support; confirm the warranty period at purchase.
Available Now
Available through Hikvision and authorised Australian security, access-control and communications distributors.
