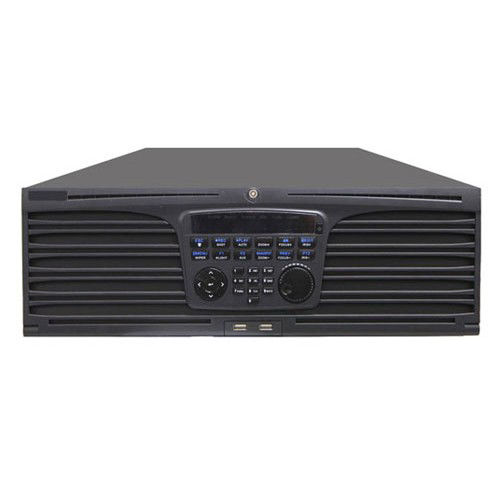

IP NVR 32 Channel No HDD Hikvision
Hikvision IP NVR features 32 channels and no HDD supplied. Ideal for CCTV and security installs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Hikvision 32-Channel Network Video Recorder, Hikvision 32CH CCTV NVR, 32-Channel 2U 4K NVR
Technical Specifications
- IP Camera Inputs: 32 channels
- Maximum Camera Resolution: Up to 12 MP
- Incoming Bandwidth: 320 Mbps; 200 Mbps with RAID enabled
- Outgoing Bandwidth: 256 Mbps; 200 Mbps with RAID enabled
- Video Compression: H.265+, H.265, H.264+, H.264 and MPEG4
- Synchronous Playback: 16 channels
- HDD Interfaces: 8 hot-swap SATA interfaces
- Maximum HDD Capacity: Up to 10 TB per drive
- RAID: RAID 0, 1, 5, 6 and 10
- eSATA: 1 interface
- Network Interfaces: 2 x RJ-45 Gigabit Ethernet
- Video Outputs: 2 x HDMI, 2 x VGA and optional CVBS
- Audio: 2-channel audio output and 1-channel two-way audio
- Alarm Interfaces: 16 inputs and 4 outputs
- Power Supply: 100–240 V AC, 50–60 Hz
- Operating Temperature: -10°C to 55°C
- Operating Humidity: 10% to 90%, non-condensing
- Chassis: 19-inch rack-mounted 2U
- Hard Drive Supply: No HDD supplied
- Dimensions (H x L x W): 92mm x 465mm x 445mm
- Weight: 10 kg
Key Features
- Supports up to 32 network cameras
- Up to 12 MP live view, recording and playback support
- 320 Mbps incoming bandwidth for high-capacity IP video systems
- Eight hot-swap HDD bays for expandable surveillance storage
- RAID 0, 1, 5, 6 and 10 support for storage redundancy
- H.265+ compression helps reduce recording storage requirements
- Dual Gigabit Ethernet ports
- Independent HDMI and VGA output groups
- Supports Hikvision and compatible third-party network cameras
- Suitable for rack-mounted commercial and industrial CCTV installations
Professional Installation Requirements
- Installation should be performed by a suitably qualified security or electrical technician. The NVR requires mains electrical connection, network configuration, HDD installation and commissioning in accordance with the manufacturer's instructions and applicable Australian requirements.
Applications
- Commercial CCTV systems
- Industrial and warehouse surveillance
- Retail and shopping-centre security
- Education and institutional security installations
- Large residential and strata security systems
- Centralised recording for multi-camera IP surveillance networks
Standards & Compliance
- AS/NZS 62676.1.1:2020, Video surveillance systems for use in security applications — general system requirements
- AS/NZS 62676.1.2:2020, Video surveillance systems for use in security applications — performance requirements for video transmission
- AS/NZS 62676.4:2020, Video surveillance systems for use in security applications — application guidelines
Environmental Benefits
- H.265+ video compression can reduce storage requirements compared with older compression formats, potentially reducing storage hardware demand and energy use.
- RAID and hot-swap storage support can improve system resilience and extend the usable life of installed surveillance hardware.
- No HDD is supplied, allowing installers to select appropriately sized surveillance-rated drives and replace storage independently of the recorder.
- Designed for long-term commercial surveillance use, helping reduce replacement frequency and electronic waste.
Warranty Information
Hikvision documentation for the DS-9632NI-I8 specifies a 36-month warranty. Australian warranty eligibility is subject to authorised distribution, proof of purchase and the applicable Hikvision Australia warranty terms.
Available Now
The DS-9632NI-I8 is listed as discontinued on Hikvision's global product page; availability is subject to remaining stock through Hikvision authorised Australian distributors.
