IP Video Intercom Kit DS-KIS602 Hikvision
Hikvision IP video intercom kit, model DS-KIS602. Ideal for video intercom installs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Hikvision Modular IP Video Intercom Bundle, Hikvision Villa Video Intercom Kit, DS-KIS602 Intercom System
Technical Specifications

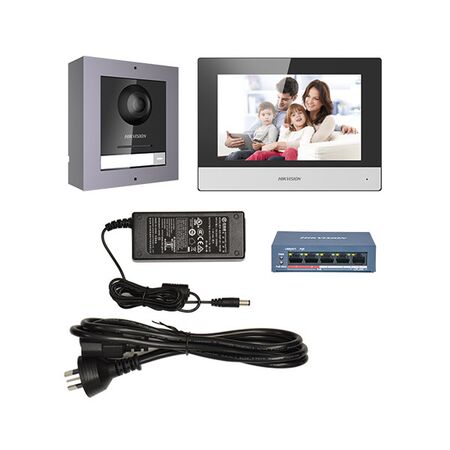

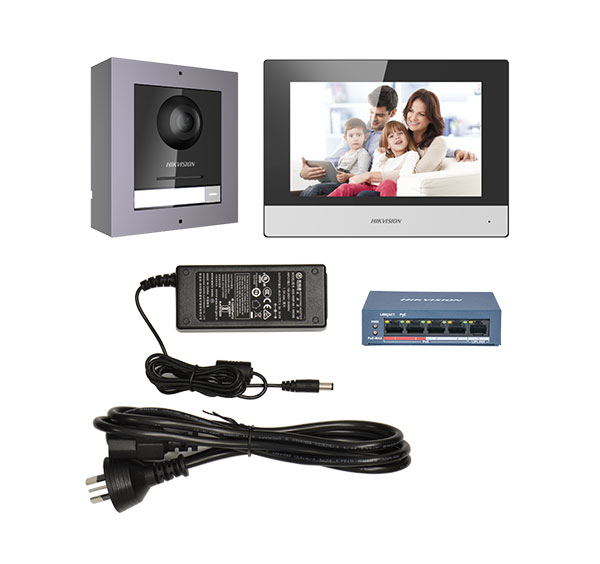

- Kit Contents: DS-KD8003-IME1 modular door station, DS-KD-ACW1 surface mounting frame, DS-KH6320-WTE1 indoor station, PoE switch, power supply and 16 GB TF card
- Door Station Camera: 2 MP fisheye camera with IR supplement lighting
- Door Station Viewing Angle: Horizontal 146°, vertical 82°
- Indoor Station Display: 7-inch colour capacitive touchscreen
- Indoor Station Resolution: 1024 × 600 pixels
- Network: 10/100 Mbps Ethernet, Wi-Fi 802.11 b/g/n and standard PoE
- Video Compression: H.264
- Audio: Noise suppression and echo cancellation
- Door Station Protection: IP65
- Access Control: Door unlocking through the indoor station, client software or Hik-Connect mobile application
- Door Station Expansion: Supports up to 8 sub-modules
- PoE Switch: Four PoE ports plus one 10/100 Mbps Ethernet port
- Storage: Supplied 16 GB TF card; indoor station supports TF cards up to 128 GB
- Operating Temperature: Door station -40°C to 60°C; indoor station -10°C to 55°C
- Dimensions (H x L x W): 120mm x 300mm x 250mm
- Weight: 2.475 kg
Key Features
- Complete IP video intercom kit for a single villa, house or entrance
- 2 MP outdoor door station with fisheye camera, IR illumination and wide viewing angle
- 7-inch indoor touchscreen for answering calls, live viewing and door release
- Hik-Connect mobile app support for remote intercom and unlocking
- Standard PoE connectivity simplifies network and power distribution
- IP65-rated door station suitable for exposed entrance locations
- Modular door station design supports additional access-control modules
- Built-in recording and image storage using the supplied 16 GB TF card
Professional Installation Requirements
- Installation should be performed by a suitably qualified security, communications or electrical installer. Configure the IP network, PoE equipment, door-release wiring and any mains-powered equipment in accordance with manufacturer instructions and applicable Australian requirements.
Applications
- Residential villa and house entrances
- Small commercial building access points
- Gate and pedestrian-door intercom systems
- Schools, offices and reception entrances
- Remote visitor identification and door release
Standards & Compliance
- AS/NZS IEC 60839.11.2:2019 - application guidelines for electronic access control system planning, installation, commissioning, maintenance and documentation
Environmental Benefits
- PoE networking combines power and data over Ethernet, reducing separate cabling and power-adaptor requirements
- Low-power networked components help limit operating energy consumption
- Replaceable and expandable modular components can extend system service life and reduce complete-system replacement waste
- TF-card recording can reduce the need for additional dedicated recording hardware in smaller installations
Warranty Information
Typically supplied with a 3-year Hikvision Australia or authorised-distributor warranty for eligible products, subject to the seller’s terms, proof of purchase and Australian Consumer Law. Confirm coverage for the complete intercom kit before purchase.
Available Now
Available through Hikvision and authorised Australian security, electrical and communications distributors; confirm current stock and regional model availability with the supplier.
