IP Video Intercom Kit DS-KIS604-S Hikvision
Hikvision IP video intercom kit, model DS-KIS604-S. Ideal for video intercom installs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Hikvision Villa Video Intercom Kit, IP Video Doorphone Kit, Network Video Intercom Bundle
Technical Specifications

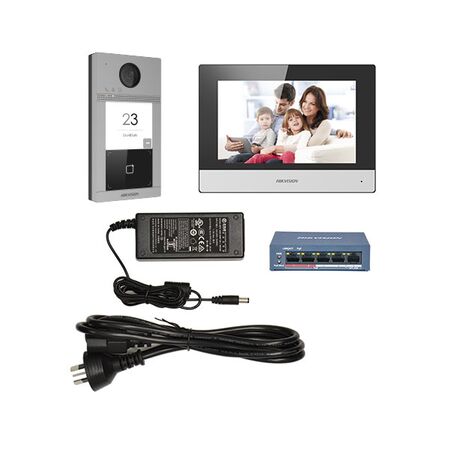

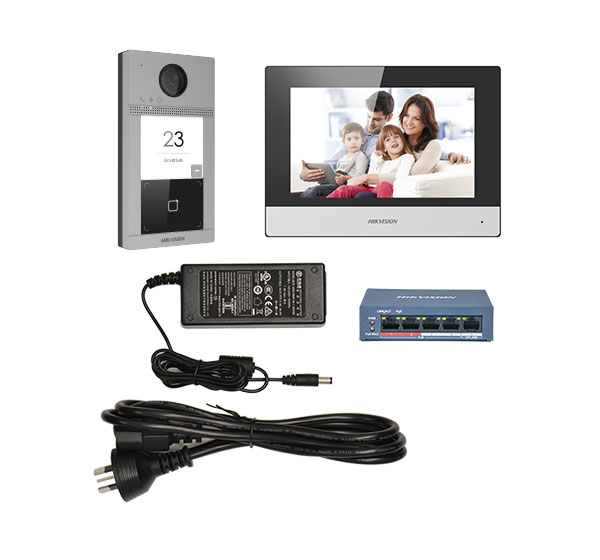

- Kit Components: Villa door station, 7-inch indoor station, 4-port PoE switch, TF card and power supply
- Door Station Camera: 2 MP HD camera with IR illumination and low-light support
- Indoor Display: 7-inch colour TFT capacitive touchscreen
- Display Resolution: 1024 x 600 pixels
- Network: 10/100 Mbps Ethernet and 2.4 GHz Wi-Fi 802.11b/g/n
- Power Supply: Standard IEEE 802.3af PoE or 12 VDC
- Indoor Station Power Consumption: Up to 6 W
- Door Station Protection: IP65 and IK08
- Storage: TF card support up to 32 GB on the specified model variant
- Audio: Built-in microphone and loudspeaker with noise suppression and echo cancellation
- Access Control: Remote unlocking with two relay outputs
- Connectivity: TCP/IP, SIP and RTSP
- Door Station Operating Temperature: -40 °C to 53 °C
- Indoor Station Operating Temperature: -10 °C to 55 °C
- Dimensions (H x L x W): 200mm x 140mm x 29mm
- Weight: 1.2 kg
Key Features
- Single-call-button villa or house intercom solution
- 2 MP outdoor door station with IR support for low-light viewing
- 7-inch indoor touchscreen for two-way video and audio communication
- Hik-Connect mobile app support for remote answering and unlocking
- Standard PoE simplifies power and network cabling
- IP65 and IK08 rated door station for outdoor installation
- Supports linked cameras, door stations and indoor extensions
- Includes a 4-port PoE switch for connecting the kit components
- TF card storage for captured images and messages
Professional Installation Requirements
- Installation should be performed by a suitably qualified security or electrical installer. PoE networking, power supply, door-lock interfaces and access-control wiring must be installed in accordance with the manufacturer's instructions and applicable Australian electrical requirements.
Applications
- Residential villas and houses
- Small offices and commercial premises
- Gated homes and entry doors
- Security-conscious apartment or townhouse entrances
- Remote visitor verification and door release applications
Standards & Compliance
- AS/NZS 3820: relevant essential safety requirements for electrical equipment; verify the supplied regional variant's compliance documentation
- AS/NZS 62368.1: applicable audio, video and information and communication technology equipment safety standard; verify exact product certification
- AS/NZS 4268: applicable radio equipment standard for the integrated Wi-Fi function; verify exact regional approval
- AS/NZS 3000: applicable to fixed electrical installation and wiring work where relevant
Environmental Benefits
- PoE and low-voltage DC operation can reduce the need for separate power cabling and associated installation materials
- Modular door station, monitor and switch components can be serviced or replaced individually, potentially extending system life
- Digital visitor verification and remote unlocking can reduce unnecessary travel to the entry point
- TF card recording provides local storage without requiring continuous cloud transmission
Warranty Information
Hikvision warranty support is available through authorised Australian distribution channels. The manufacturer's published five-year warranty programme applies only to listed premium project-oriented product series, and the DS-KIS604-S intercom kit is not identified in that published list; confirm the applicable warranty period with the authorised seller at purchase.
Available Now
Availability may depend on the regional model suffix and lifecycle status. Check current stock and Australian-region compatibility with Hikvision or an authorised Australian distributor.
