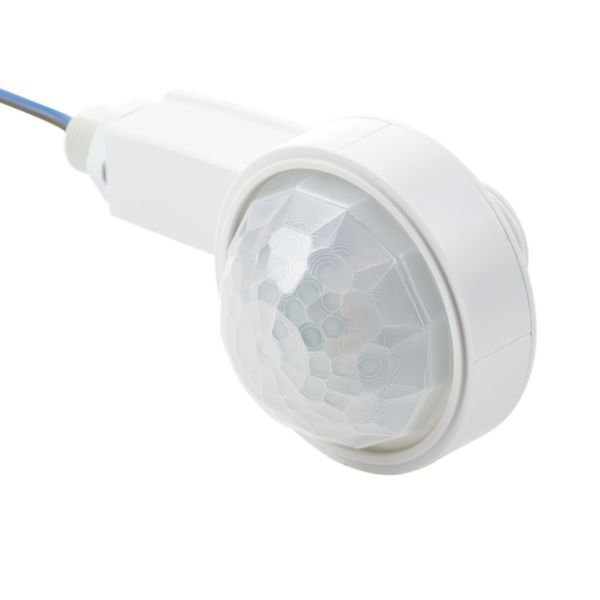

IP65 High Bay PIR Presence Detector | 40m Detection Range | 360° Detection Angle | by CP Electronics
The IP65 High Bay PIR Presence Detector is designed for efficient lighting control in industrial and commercial spaces. With a groundbreaking detection range of up to 40m and a 360° detection angle, it ensures optimal performance at mounting heights of 15m. Ideal for warehouses and factories, this sensor features adjustable masking shields and is compatible with various lighting types, providing energy savings through automatic control.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: IP65 High Bay PIR Presence Detector | 40m Detection Range | 360° Detection Angle | by CP Electronics
Brand: CP Electronics
SKU: EBDHS-MB-PRM
Alternatively Known As: High Bay PIR Presence Detector, Luminaire Mounted PIR Sensor, IP65 High Bay Motion Sensor, CP Electronics PRM PIR Detector
Technical Specifications
- Detection technology: Passive infrared (PIR)
- Detection range: Up to 40m diameter on floor
- Optimum mounting height: 15m
- Detection angle horizontal: 360°
- Switching power max: 460W
- Nominal voltage: 230V AC, 50Hz
- IP rating: IP65
- Impact rating: IK05
- Response value luminosity: 0-2000 lx adjustable
- Switch-off delay: 10 seconds
- Switch-on delay: 1 second
- Standby consumption: approx. 1.08 mA
- Material: Thermoplastic, halogen free
- Colour: White (RAL 9002)
- Mandatory neutral required
- Dimensions (H x L x W): 74mm x 172mm x 88mm
- Weight: 0.3 kg
Key Features
- Groundbreaking detection range up to 40m at 15m mounting height
- Unique lens technology for high sensitivity within detection range
- IP65 rated for damp and wash-down areas
- Adjustable masking shields for precise detection shape control
- Quick installation via M20 gland
- Supplied with two masking shields
- Programmable functionality via UHS5 or UNLCDHS handsets
- Switching with lux level sensing
- Suitable for incandescent, fluorescent, compact fluorescent, and LED lighting
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical standards and optimal sensor performance.
Applications
- High bay lighting control in warehouses
- Factories and industrial spaces with high mounting heights
- Commercial luminaires and basic battens retrofit
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy savings through presence detection and automatic lighting control
- Reduces unnecessary lighting usage, lowering power consumption
- Supports LED and energy-efficient lighting technologies
Warranty Information
Standard manufacturer warranty applies. Please refer to CP Electronics for specific warranty terms.
Available Now
The CP Electronics PRM Switching Retrofit IP65 High Bay PIR Presence Detector is available for immediate purchase, ideal for industrial and commercial high bay lighting control applications.
