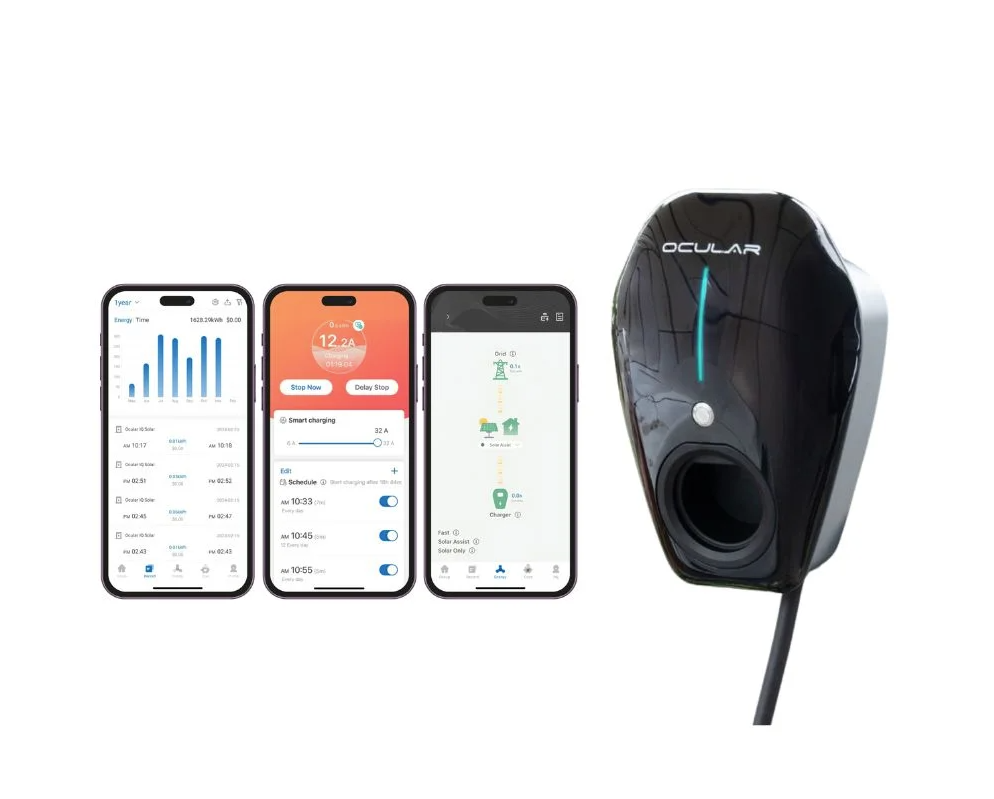

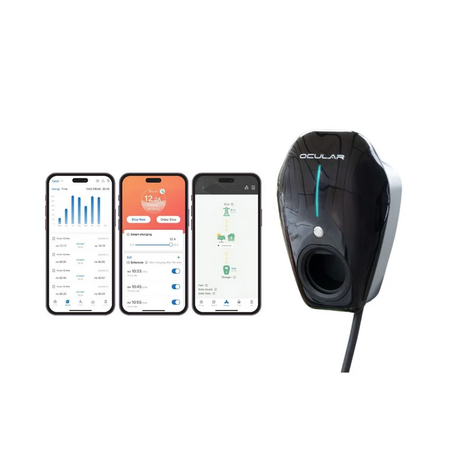

IQ Home Solar 22kW 3P EV Charger IP55 Universal CT Ocular
The IQ Home Solar 22kW 3P EV Charger delivers fast three phase charging with a universal socket and CT clamps for home solar integration. It features IP55 protection, 400V AC input and compatibility with standard EV connectors for reliable everyday charging. Designed for residential, small business and fleet charging applications, it complies with AS/NZS 3000, AS/NZS 3112 and AS/NZS 3820 requirements. View the complete specifications below for installation details, dimensions and supported charging modes.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: 22kW Three Phase EV Charger, Universal CT Clamp EV Charger, IP55 Rated EV Charger
Technical Specifications
- Power Output: 22kW
- Phase: Three Phase
- Ingress Protection: IP55
- Compatibility: Universal CT clamps for current measurement
- Voltage: 400V AC
- Connector Type: Compatible with standard EV connectors
- Dimensions (H x L x W): 450mm x 150mm x 350mm
- Weight: 15 kg
Key Features
- Three phase 22kW charging capacity
- Universal compatibility with CT clamps
- IP55 rated for dust and water resistance
- Designed for home solar integration
Professional Installation Requirements
- Installation must be performed by a licensed electrician experienced with three phase electrical systems and EV chargers.
Applications
- Residential: Home electric vehicle charging
- Commercial: Small business EV charging stations
- Industrial: Fleet vehicle charging
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
- AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Supports renewable energy use by integrating with home solar systems
- Reduces carbon footprint by enabling electric vehicle charging
Warranty Information
3 years manufacturer warranty covering parts and labor.
Available Now
The Ocular IQ Home Solar 22kW 3P EV Charger IP55 Universal CT is available for immediate purchase, ideal for residential and commercial EV charging applications.
FAQ
Q: What applications is this EV charger designed for?
A: It is suitable for residential home EV charging, small business charging stations and fleet vehicle charging applications.
Q: What features support home solar charging?
A: This charger includes universal CT clamps, IP55 protection and supports three solar charge modes for home solar integration.
Add an EV charging station pedestal where a floor-mounted installation is preferred.
Protect outdoor installations with an EV charging station enclosure designed for charging equipment.
Pair with an EV charging cable Type 2 to Type 2 for compatible charging connections where required.
Learn how to optimise solar charging performance with the three phase EV charger guide before installation.
