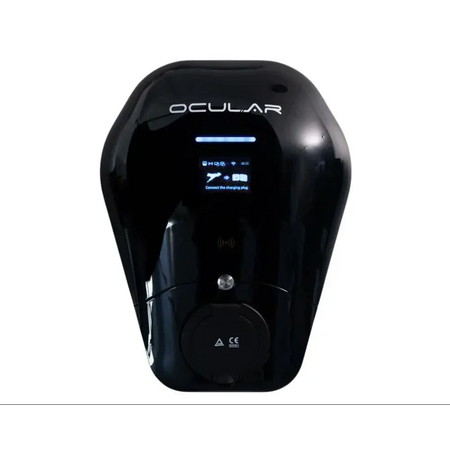

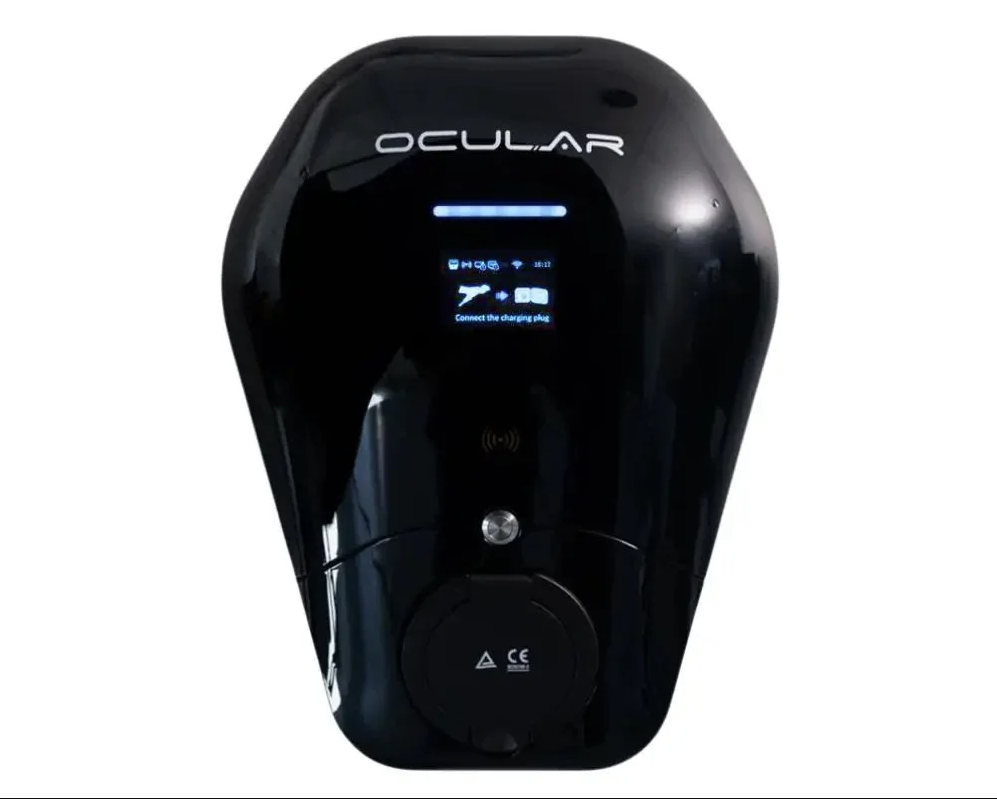

IQ Wallbox 22kW 3P EV Charger IP55 5m Type 2 OCPP Ocular
The IQ Wallbox 22kW 3P EV Charger delivers fast three-phase charging with a tethered 5m Type 2 cable for residential and commercial EV installations. It features IP55 protection, OCPP 1.6J/2.0 communication, a 2.8in LCD and a 400V AC three-phase input. Designed for residential electric vehicle charging, commercial EV charging stations, fleet vehicle charging and public parking facilities, it complies with AS/NZS 3000 and AS/NZS 3112 requirements. Continue below for the complete specifications, installation requirements and charging features.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: EV Charger Wallbox 22kW, Ocular EV Charger, Type 2 EV Charger, Three Phase EV Charger
Technical Specifications
- Charging Power: 22kW three phase
- Cable Type: Type 2, 5 meters length
- Ingress Protection: IP55
- Communication Protocol: OCPP
- Input Voltage: 400V AC three phase
- Connector Type: Type 2 socket and cable
- Dimensions (H x L x W): 400mm x 150mm x 300mm
- Weight: 15 kg
Key Features
- Three phase 22kW charging power for fast EV charging
- IP55 rated enclosure for dust and water resistance
- Includes 5m Type 2 charging cable
- Supports OCPP protocol for smart charging and network integration
Professional Installation Requirements
- Installation must be performed by a licensed electrician experienced with three phase electrical systems and EV charger installations.
Applications
- Residential electric vehicle charging
- Commercial EV charging stations
- Fleet vehicle charging
- Public and private parking facilities
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
Environmental Benefits
- Supports electric vehicle adoption reducing carbon emissions
- Energy efficient charging reduces overall power consumption
Warranty Information
3 years warranty covering manufacturing defects and performance issues.
Available Now
The Ocular IQ Wallbox 22kW 3P EV Charger is available for immediate purchase, ideal for fast and reliable electric vehicle charging in residential and commercial settings.
FAQ
Q: What applications is this EV charger suitable for?
A: It is designed for residential electric vehicle charging, commercial EV charging stations, fleet vehicle charging and public or private parking facilities.
Q: What smart charging features does this charger include?
A: The charger supports OCPP 1.6J/2.0 communication, includes a 2.8in LCD, IP55 protection and a tethered 5m Type 2 charging cable.
Pair this charger with an EV charging station enclosure to provide additional protection for outdoor charging equipment.
Install an EV charging station pedestal where a freestanding charging point is required.
Integrate an EV load management system to coordinate charging across multiple commercial charging locations.
Learn how smart charging systems operate by reading the commercial EV charger guide before planning your installation.
