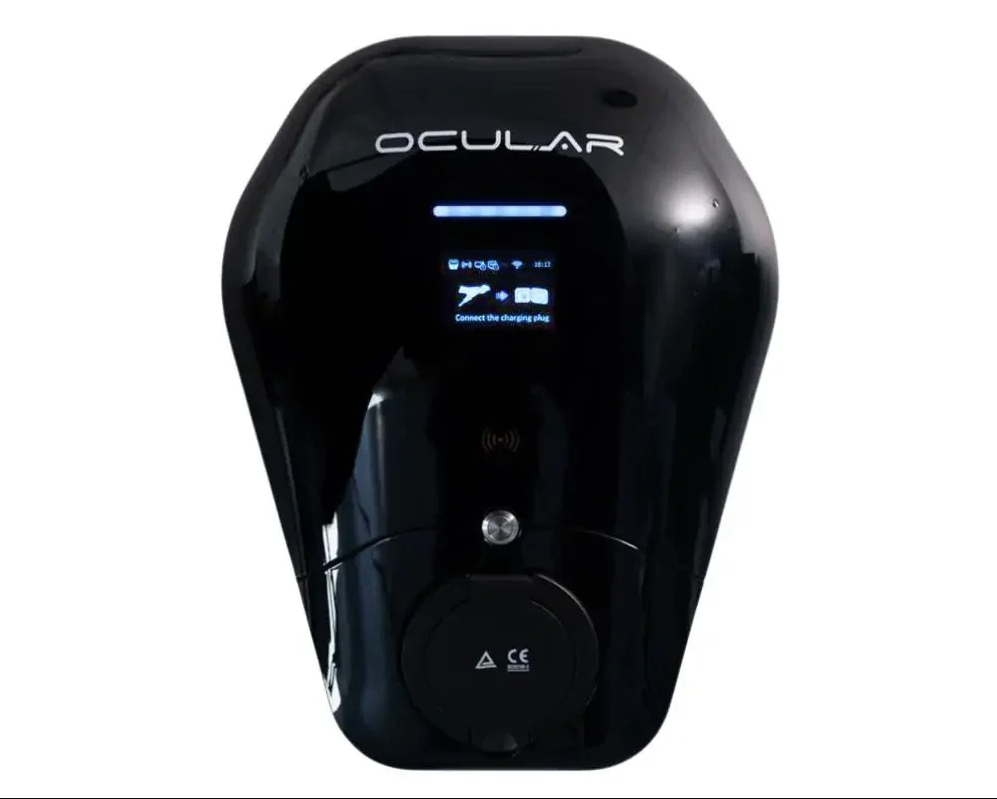

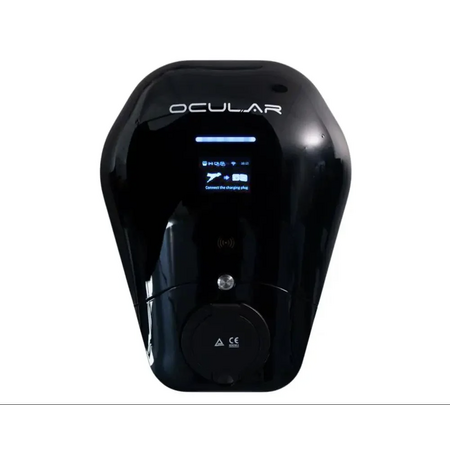

IQ Wallbox 7.6kW 1P EV Charger IP55 5m Type 2 OCPP Ocular
The IQ Wallbox 7.6kW 1P EV Charger delivers efficient single-phase charging with a tethered 5m Type 2 cable for residential and commercial EV installations. It features IP55 protection, OCPP communication, a 230V single-phase input and a 2.8in LCD for smart charging management. Designed for residential electric vehicle charging, commercial EV charging stations and workplace EV charging solutions, it complies with AS/NZS 3000 requirements. See the complete specifications below for installation guidance, dimensions and charging features.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: EV Charger Wallbox, Electric Vehicle Charger 7kW, Type 2 EV Charger, Single Phase EV Charger
Technical Specifications
- Charging Power: 7.6kW single phase
- Cable Length: 5 meters
- Connector Type: Type 2
- Ingress Protection: IP55
- Communication Protocol: OCPP
- Voltage: 230V single phase
- Current: Up to 32A
- Dimensions (H x L x W): 400mm x 150mm x 300mm
- Weight: 8 kg
Key Features
- 7.6kW single phase charging power
- IP55 rated for dust and water resistance
- Includes 5m Type 2 charging cable
- Supports OCPP protocol for smart charging management
Professional Installation Requirements
- Installation must be performed by a licensed electrician to ensure compliance with electrical safety standards and optimal charger performance.
Applications
- Residential electric vehicle charging
- Commercial EV charging stations
- Workplace EV charging solutions
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Promotes use of electric vehicles reducing carbon emissions
- Energy efficient charging reduces electricity waste
Warranty Information
3 years manufacturer warranty covering defects and performance issues.
Available Now
The Ocular IQ Wallbox 7.6kW Single Phase EV Charger with Type 2 5m cable is available for immediate purchase, ideal for residential and commercial EV charging applications.
FAQ
Q: What applications is this EV charger suitable for?
A: It is designed for residential electric vehicle charging, commercial EV charging stations and workplace EV charging solutions.
Q: What smart charging features are included with this charger?
A: The charger supports OCPP communication, includes a 2.8in LCD, IP55 protection and a tethered 5m Type 2 charging cable.
Pair this charger with an EV charging station enclosure to provide additional protection for outdoor charging equipment.
Install an EV charging station pedestal where a freestanding charging point is required.
Integrate an EV load management system to coordinate charging across multiple workplace charging locations.
Compare charging configurations by reading the single phase EV charger guide before choosing your charging setup.
Available now from SCHNAP — trusted by Australian electricians and electrical contractors.
