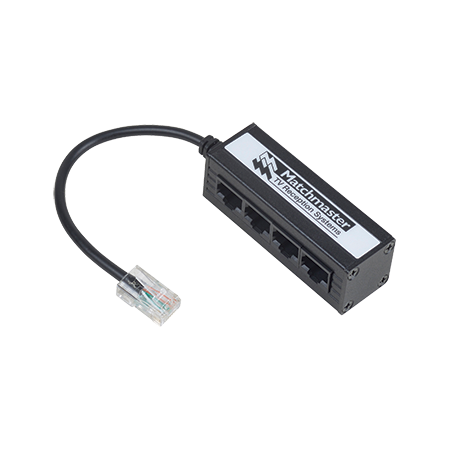

IR Expansion Block 1x RJ45 Plug to 4x RJ45 Socket | 1000 Mbps | Versatile Connectivity by Matchmaster
IR expansion block with 1x RJ45 plug and 4x RJ45 sockets—ideal for home and office networking. Built for versatile connectivity, supporting up to 1000 Mbps data rates and compatible with various devices.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: IR Expansion Block 1x RJ45 Plug to 4x RJ45 Socket
Brand: Matchmaster
SKU: 34MM-IR4X
Alternatively Known As: IR splitter block, IR signal expander, RJ45 IR distribution block, IR control expansion module
Technical Specifications
- Input: 1x RJ45 plug
- Output: 4x RJ45 sockets
- Compatible with 34MM-IR-RX receivers and 34MM-IR-TX emitters
- Maximum daisy chain: 8x 34MM-IR-RX receivers
- Connection type: RJ45 plug and socket
- Dimensions (H x L x W): 25mm x 100mm x 80mm
- Weight: 0.1 kg
Key Features
- Simple plug and play to add up to 4 IR receivers (34MM-IR-RX) for extended system control
- Allows addition of up to 4 dual IR transmitters (34MM-IR-TX) for controlling multiple components
- Can be daisy chained to increase connections up to 8 IR receivers
- Uses simple RJ45 connection for remote installation from main control unit
Professional Installation Requirements
- Professional installation is recommended to ensure proper integration with existing AV and IR control systems.
Applications
- Home automation systems for expanding IR control
- Audio video systems requiring additional IR receivers or transmitters
- Remote control extension in residential and commercial AV setups
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Reduces need for multiple remote control devices by centralizing IR control
- Supports energy-efficient home automation systems
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Matchmaster IR Expansion Block is available now for immediate purchase. Ideal for expanding IR control in residential and commercial audio video systems.
