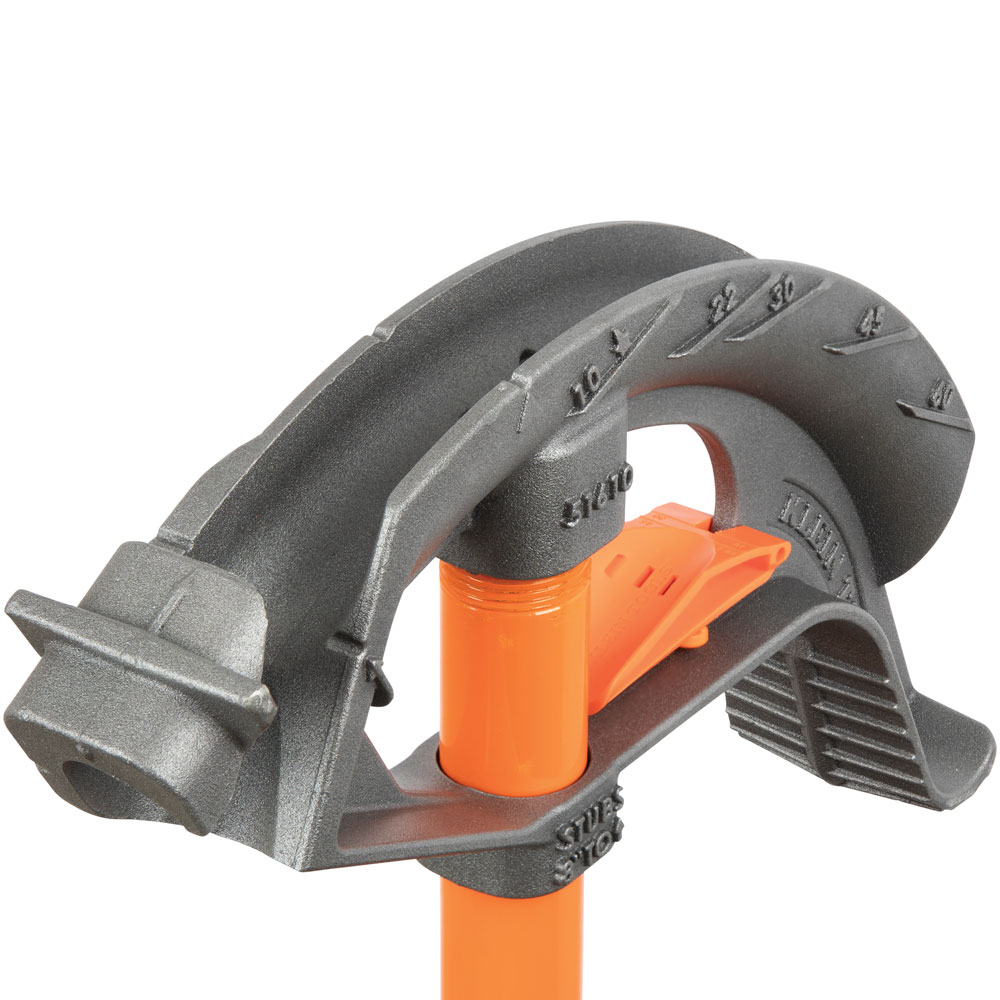

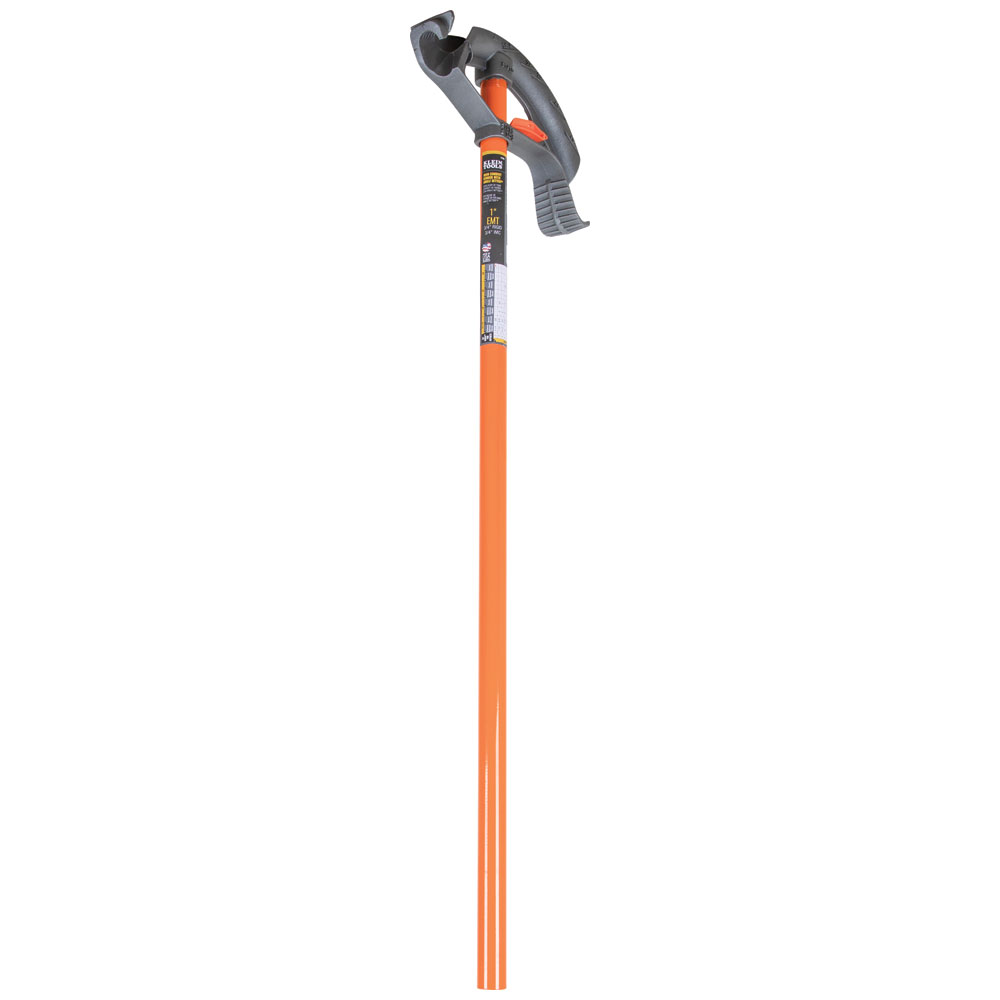

Iron Conduit Bender Full Assembly | 1-Inch EMT | Patent Pending Angle Setter™ | Heavy-Duty Cast Iron | by Wattmaster
The Iron Conduit Bender Full Assembly is designed for bending 1-inch EMT conduit with precision. Featuring patent pending Angle Setter™ technology, it allows for quick and accurate repeated bends, making it ideal for electrical contractors and professionals. Built from heavy-duty cast duct iron, this bender ensures durability and stability during use, with bold markings for easy alignment.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Iron Conduit Bender Full Assembly | 1-Inch EMT | Patent Pending Angle Setter™ | Heavy-Duty Cast Iron | by Wattmaster
Brand: Wattmaster
SKU: A-51605
Alternatively Known As: Conduit Bender, EMT Bender, Iron Conduit Bender, Angle Setter Conduit Bender, 1-Inch EMT Bender
Technical Specifications
- Material: Heavy-duty cast duct iron
- Conduit Size: 1 inch EMT, 3/4 inch Rigid and IMC
- Markings: 10°, 22.5°, 30°, 45°, 60° with offset multipliers
- Handle Length: 44 inches (1118 mm)
- Stub-Up Height: 8 inches (203 mm)
- Overall Height: 52.1 inches (1323 mm)
- Overall Width: 12.9 inches (329 mm)
- Overall Length: 2.5 inches (64 mm)
- Weight: 11.8 lb (5.4 kg)
- Dimensions (H x L x W): 1323mm x 64mm x 329mm
- Weight: 5.4 kg

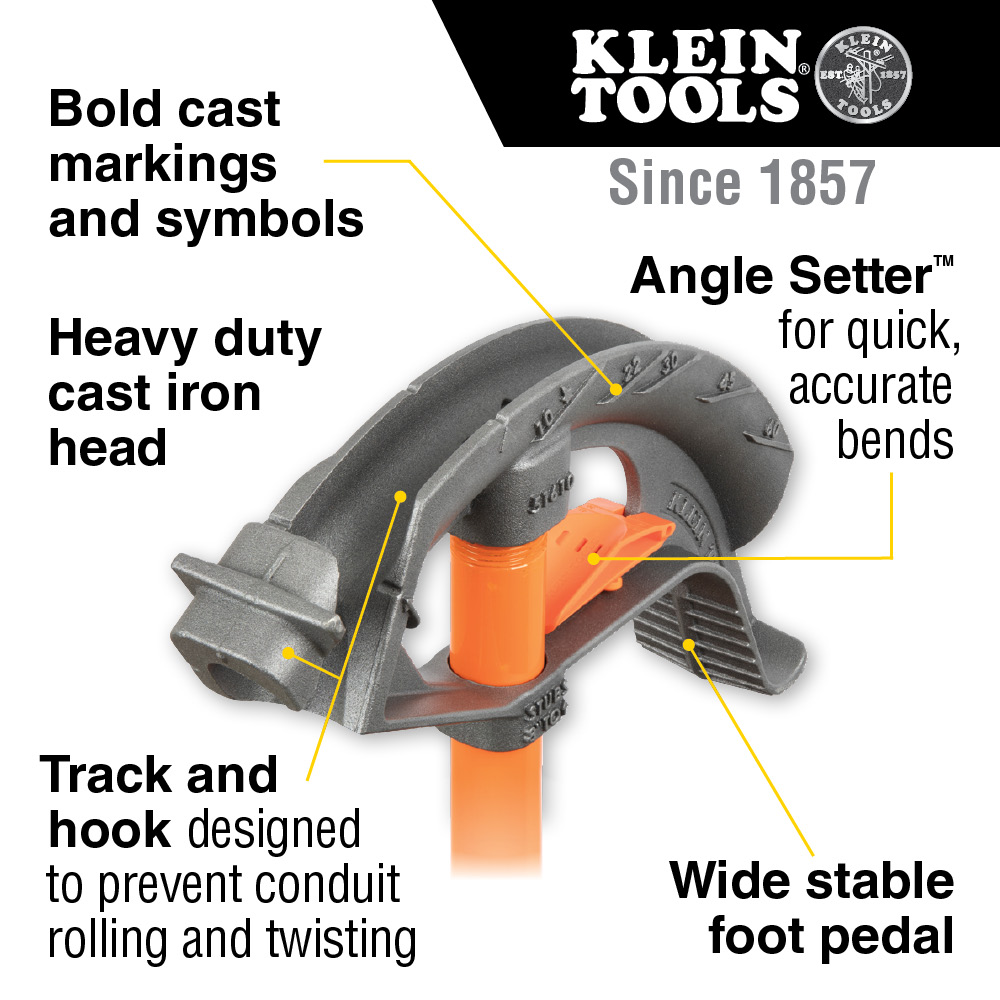

Key Features

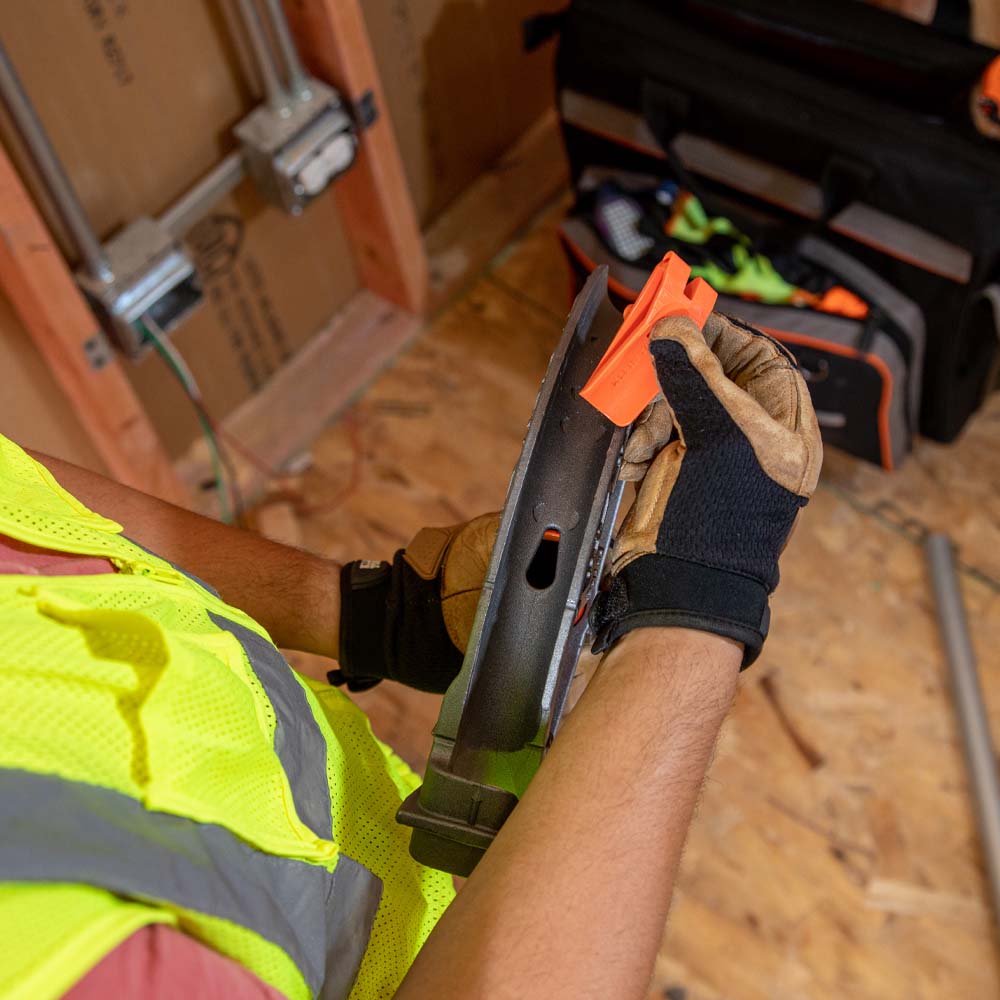

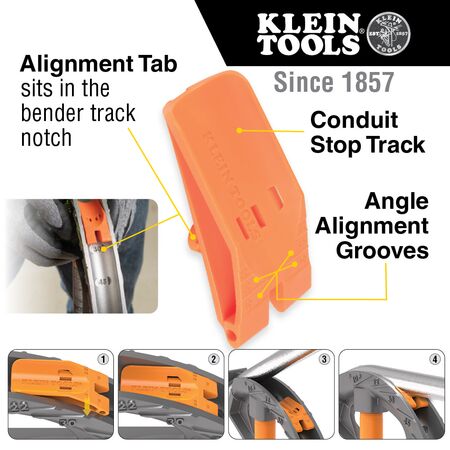

- Patent Pending Angle Setter™ technology for quick, accurate repeated bends
- Heavy-duty cast duct iron construction for durability

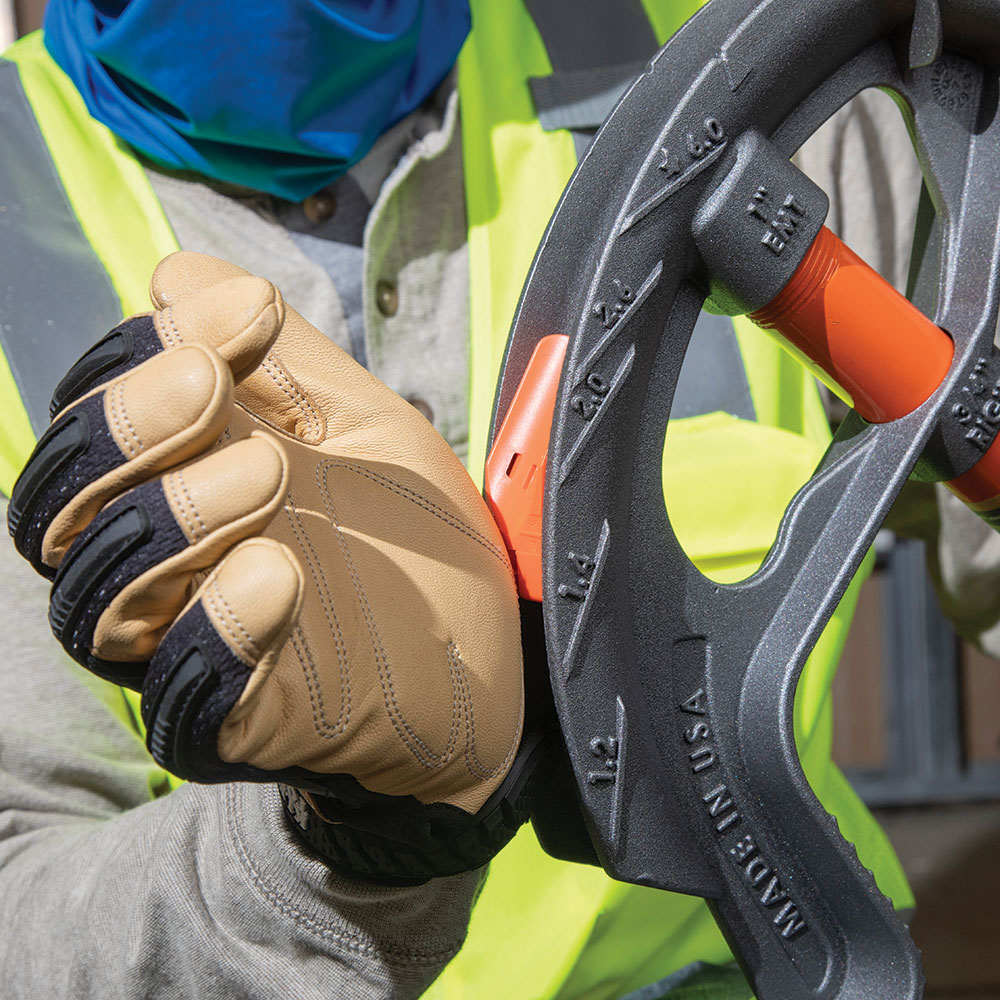

- Bold cast markings and symbols for fast conduit alignment

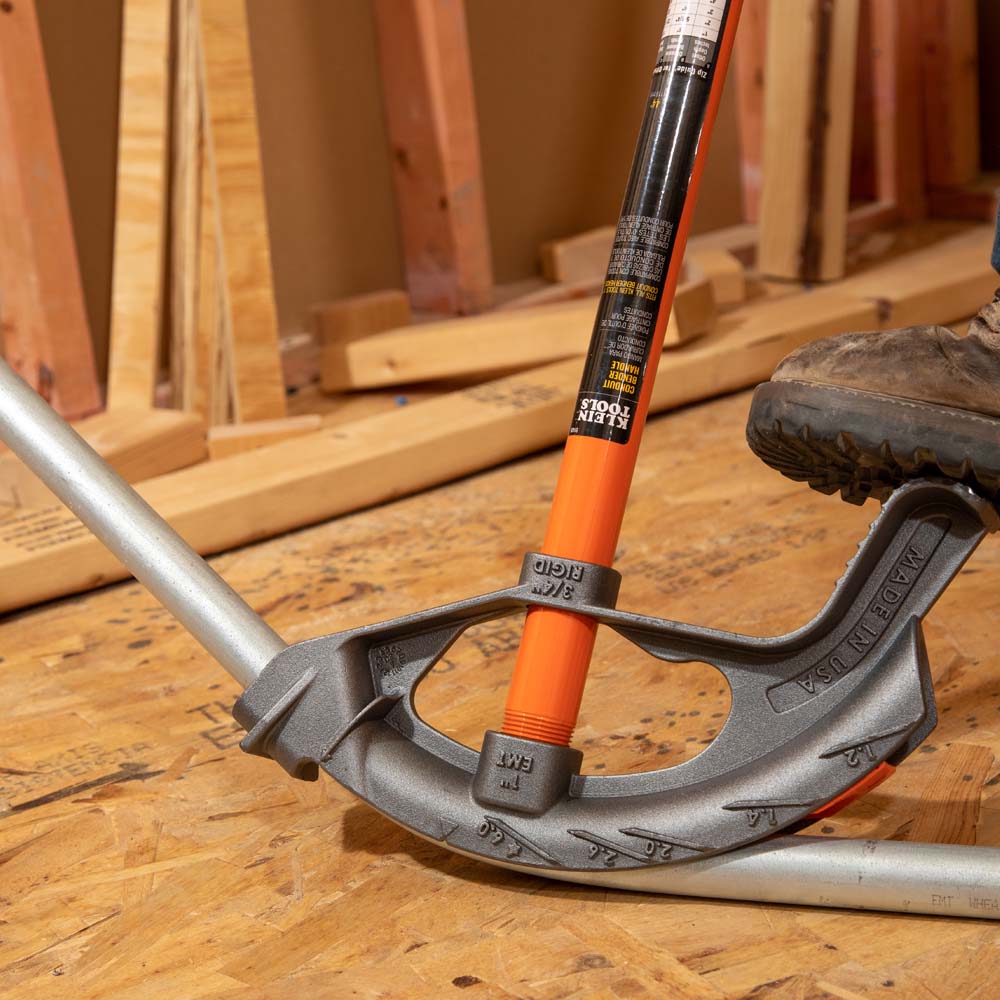

- Wide foot pedal for excellent stability, leverage, and comfort
- Interior hook surface prevents conduit rolling or twisting during bends

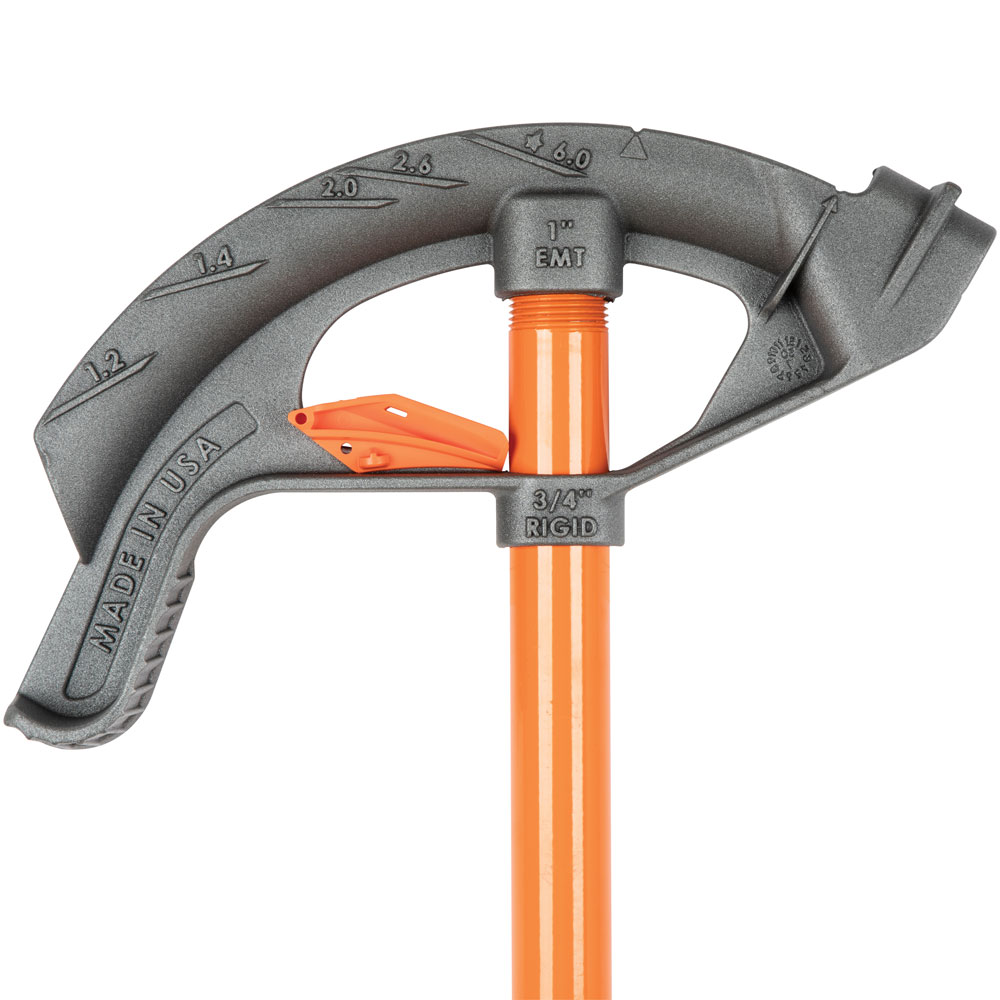

- Includes markings for 10°, 22.5°, 30°, 45°, and 60° bends with offset multipliers
- Designed for 1-inch EMT, 3/4-inch Rigid, and 3/4-inch IMC conduit
Professional Installation Requirements
- Recommended for use by trained professionals or under supervision to ensure safety and accuracy; always wear approved eye protection and maintain a safe work position.
Applications

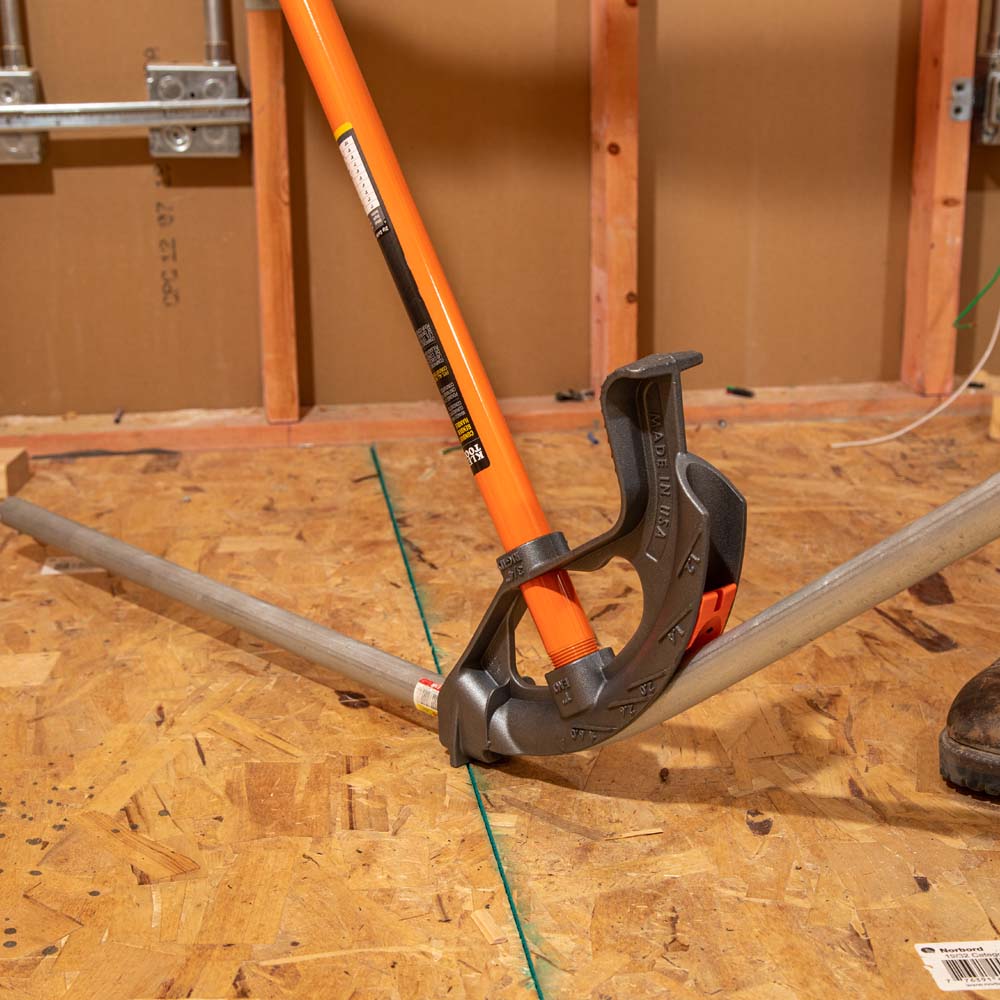

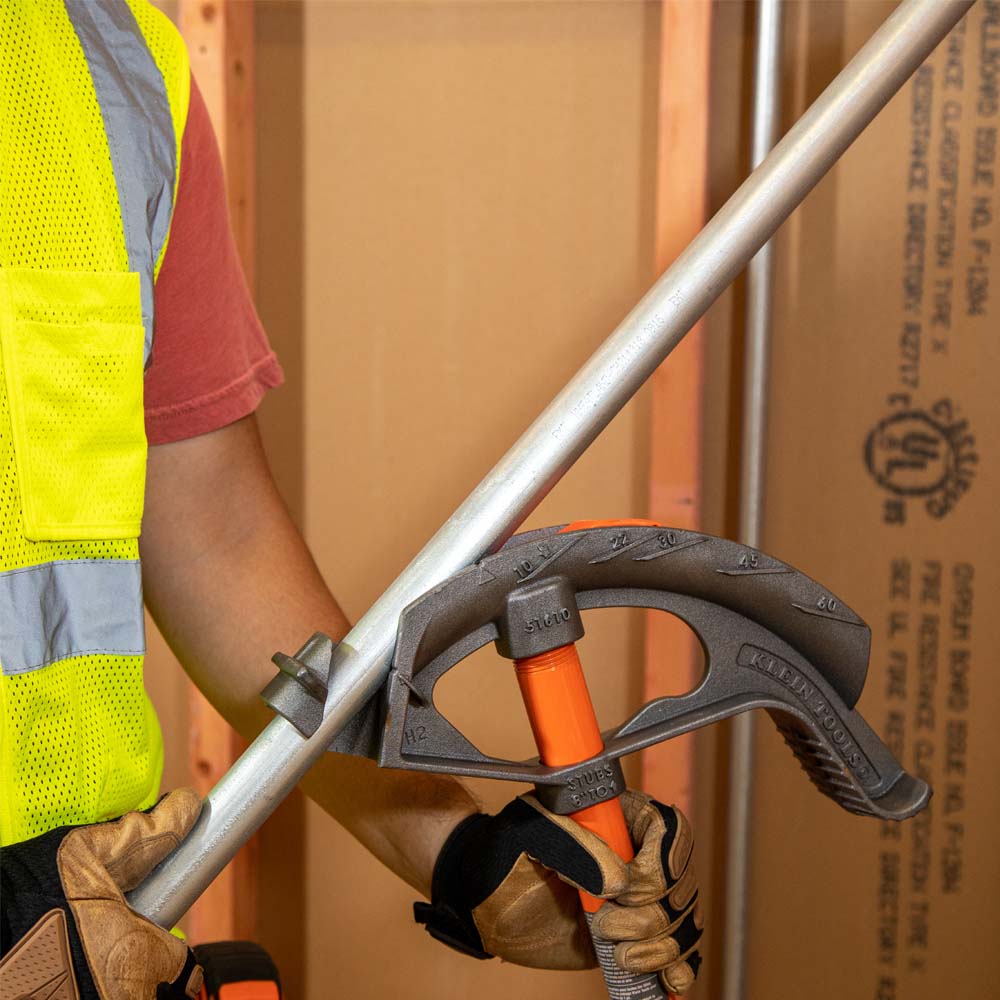

- Bending 1-inch EMT conduit
- Bending 3/4-inch Rigid and 3/4-inch IMC conduit
- Electrical conduit installation and shaping on construction sites
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable iron construction reduces the need for frequent replacements, minimizing waste
- Enables precise bends reducing conduit waste and material overuse
Warranty Information
Warranty details available from the manufacturer; typically includes coverage against manufacturing defects.
Available Now
The Wattmaster Iron Conduit Bender Full Assembly 1-Inch EMT with Angle Setter™ is available for immediate purchase, ideal for electrical contractors and professionals requiring precise conduit bending.
