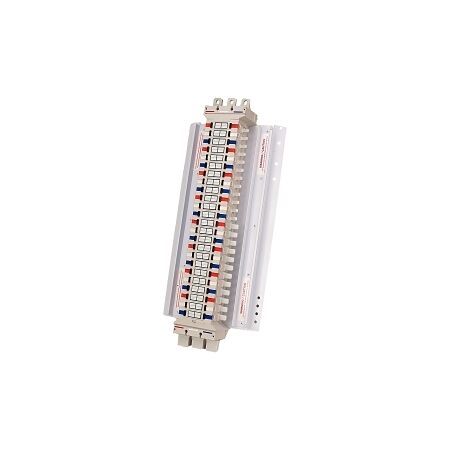

NHP POWERMAX GB Isolation Busbar Chassis DIN-T 250A 96 Way 1Pole Universal Red

Isolation Busbar Chassis 250A | 96 Way 1Pole | Universal Red by NHP

BRAND: NHP

SKU: GB296181U

$3,640.20 List price: $4,833.70

+ −

30 Days Return Delivery Options

Isolation busbar chassis with 250A rated current and 96 poles—ideal for industrial and commercial power distribution. Built for durability with encapsulated material housing and IP20 protection for indoor use.

Description
Attachments

Product Name/Title: NHP POWERMAX GB Isolation Busbar Chassis DIN-T 250A 96 Way 1Pole Universal Red

Brand: NHP

SKU: GB296181U

Alternatively Known As: NHP Busbar, Isolation Busbar, Power Distribution Busbar

Technical Specifications

Rated Current: 250 A
Number of Poles: 96
Nominal Voltage: 415 V
Short Time Withstand Current (0.2 sec): 25 kA
Short Time Withstand Current (0.3 sec): 20 kA
Short Time Withstand Current (1 sec): 10 kA
Assembly Arrangement: 18mm pitch
Material Housing: Encapsulated material
Tee Off Isolator: Yes
Capped Tee Offs: 0.5
Degree of Protection: IP20
Dimensions (H x L x W): 896mm x 300mm x 200mm
Weight: 5 kg

Key Features

Rated current of 250A with 96 poles for versatile applications.
Encapsulated material housing for enhanced durability.
IP20 protection degree suitable for indoor use.

Professional Installation Requirements

Professional installation by a qualified electrician is recommended for optimal safety.

Applications

Industrial: Power distribution in commercial and industrial settings
Electrical: Suitable for use in switchboards and distribution boards

Standards & Compliance

Complies with AS/NZS 3000 for electrical installations.

Environmental Benefits

Efficient power distribution reduces energy loss and enhances system performance.

Warranty Information

1 year warranty against manufacturing defects.

Available Now

The NHP POWERMAX GB Isolation Busbar Chassis DIN-T 250A 96 Way 1Pole Universal Red is available now for immediate purchase. Ideal for industrial and commercial power distribution applications.

Non-Returnable & Non-Cancellable

GB296181U-AU-Chassis-GB-DINT-250A-1-Pole-Universal-Feed-Datasheet.pdf (GB296181U-AU-Chassis-GB-DINT-250A-1-Pole-Universal-Feed-Datasheet.pdf, 519 Kb) [Download]
