Junction Box 1 Gang IP66 40A with Connectors Buffalo Trader

BRAND: Trader
SKU: BUJB1
$35.30 List price: $47.10
+ −
30 Days Return Electricians Unlock Trade Access
Trader junction box features 1 gang capacity, IP66 weatherproof rating and 40A connectors included. Ideal for outdoor and washdown wiring junctions.

Alternatively Known As: Buffalo Junction Box 1 Gang BUJB1

Technical Specifications
  • Ingress Protection Rating: IP66
  • Gang Capacity: 1 gang
  • Rated Current: 40 A
  • Conduit Entry Sizes: 2 × 20 mm and 1 × 25 mm
  • Rear Cut‑Out Diameter: 32 mm
  • Material: Polycarbonate lid, PVC back box
  • Connector Capacity: accepts 3 × 6 mm² or 4 × 2.5 mm² cables
  • Ambient Temperature Range: –25 °C to 75 °C

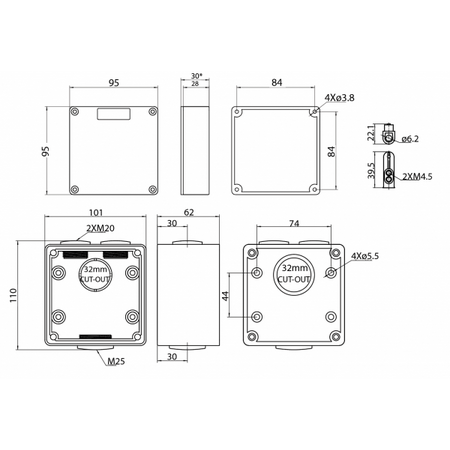

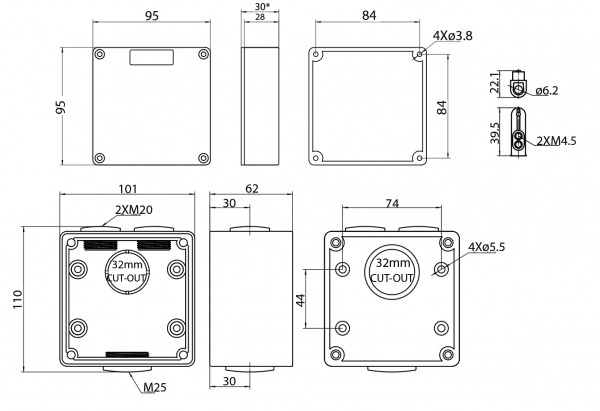

  • Dimensions (H x L x W): 91mm x 101mm x 101mm
  • Weight: 0.4 kg
Key Features
  • Polycarbonate lid for high impact strength
  • UV and chemical resistant construction

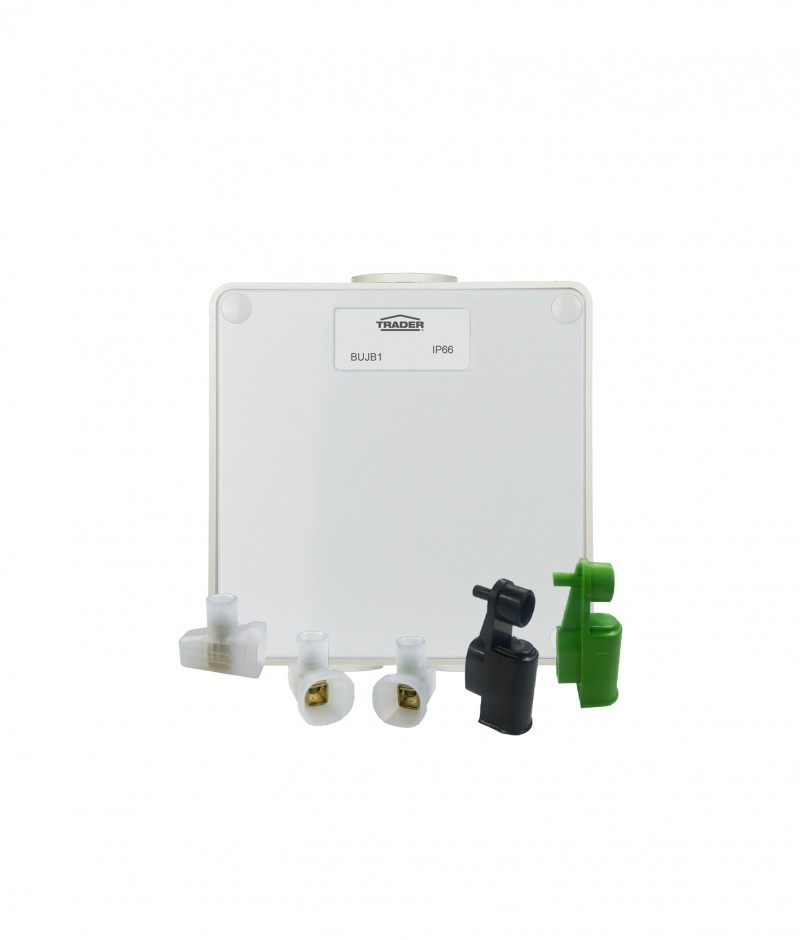

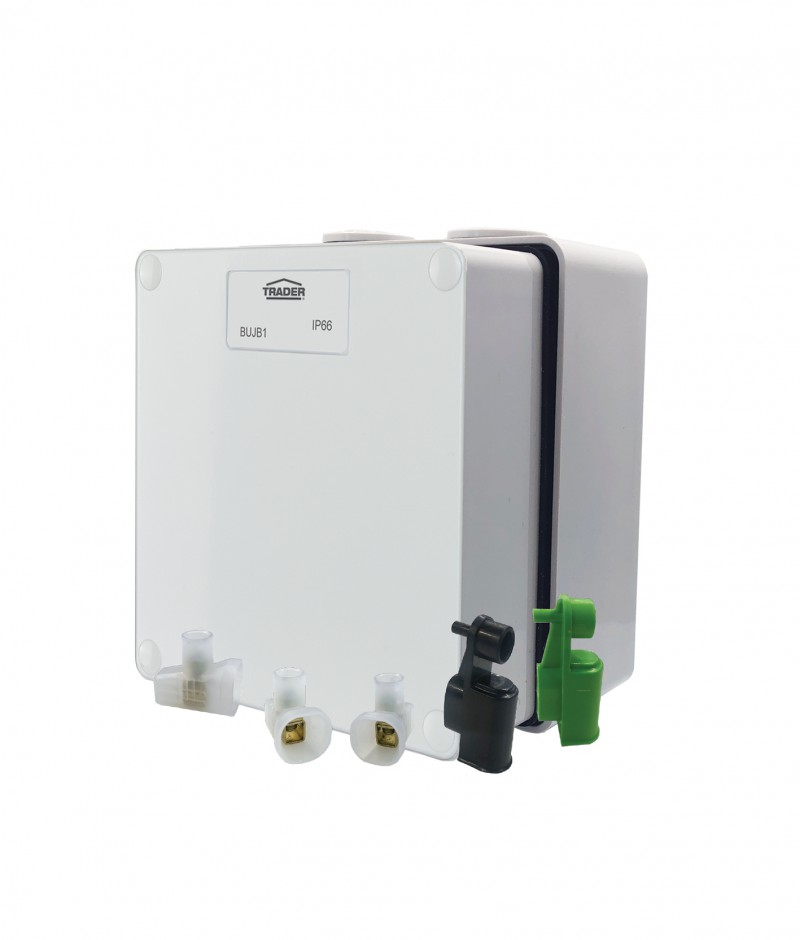

  • Supplied with 5 connectors (3‑phase, neutral & earth)
  • Includes sealing gasket, fixing screws and screw caps
  • Compatible with previous and current Buffalo range
  • IP66 protection against dust and powerful water jets
Applications
  • Outdoor and wash‑down wiring junctions
  • Industrial and harsh environment electrical terminations
  • Surface mounting of wiring connections requiring high ingress protection
Standards & Compliance
  • IP66 in accordance with AS 60529
Environmental Benefits
  • Durable UV and chemical‑resistant materials extend service life reducing waste
  • Polycarbonate and PVC are recyclable materials
Warranty Information

10‑year warranty under Trader Buffalo industrial switchgear range (current as at January 2025)

Available Now

Available through authorised Australian distributors
