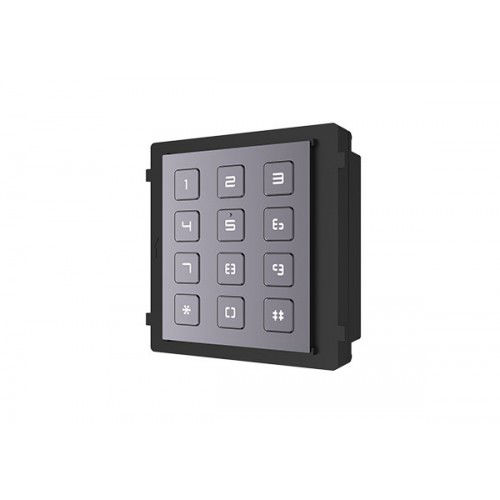

Keypad Module to Suit Intercom Hikvision
Hikvision intercom keypad module for modular door stations. Ideal for video intercom installs needing keypad entry.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Hikvision Intercom Keypad Module, Video Intercom Keypad, Modular Door Station PIN Keypad
Technical Specifications
- Model: DS-KD-KP / DS-KD-KP/S
- Operation Method: Physical buttons
- Physical Buttons: 12
- Power Supply: 12 VDC, powered by another module
- Power Consumption: 1 W
- Module Connection: RS-485, input and output connections
- Installation: Flush mounting or surface mounting
- Ingress Protection: IP65
- Impact Protection: IK07
- Operating Temperature: -40°C to +55°C
- Operating Humidity: 10% to 95%
- Application Environment: Outdoor
- Dimensions (H x L x W): 100.2mm x 98.2mm x 33.7mm
- Weight: 0.19 kg
Key Features
- Allows coded PIN entry for door unlocking
- Allows residents to be called by entering their room number
- Twelve physical keypad buttons with backlight compensation
- Designed to integrate with Hikvision modular video intercom door stations
- Requires a compatible main module and mounting bracket
- Suitable for apartment, commercial and villa intercom installations
Professional Installation Requirements
- Installation should be performed by a suitably qualified security or access-control technician. The module must be connected to a compatible Hikvision main door-station module and installed with the appropriate flush or surface mounting bracket.
Applications
- Apartment and multi-tenant building entry systems
- Residential villa intercom systems
- Commercial office access control
- Gated community entrance stations
- PIN-based door unlocking and resident calling
Standards & Compliance
- AS/NZS CISPR 32:2015 EMC compliance is identified in Hikvision product documentation for the DS-KD-KP series; confirm Australian-market conformity and RCM status for the supplied variant.
Environmental Benefits
- Low power consumption of approximately 1 W supports energy-efficient intercom operation
- Durable IP65 and IK07 construction can extend service life and reduce replacement waste
- Electronic components should be disposed of through appropriate e-waste recycling channels at end of life
Warranty Information
Hikvision access control and intercom products are generally covered by a 36-month manufacturer warranty in published Hikvision regional warranty documentation, subject to purchase through an authorised distributor and local warranty terms. Confirm the applicable Australian warranty at purchase.
Available Now
Available through Hikvision and authorised Australian security, access-control and intercom distributors.
