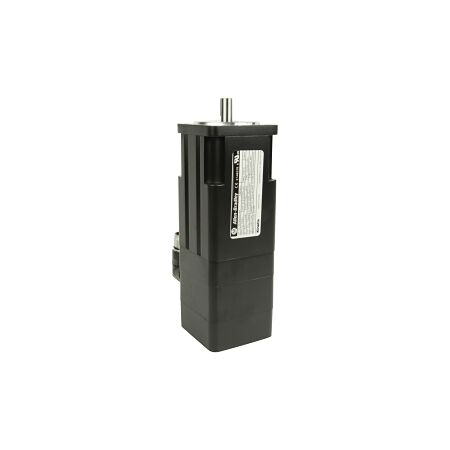

Kinetix MPL Servo Motor 460VAC | 5000 RPM | 2.10Nm Torque | Incremental Encoder by NHP
Kinetix MPL servo motor with 460VAC and 5000 RPM—ideal for industrial automation and control systems. Built for precision, with 2.10Nm torque and 2000 line incremental encoder for accurate feedback.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Allen-Bradley Kinetix MPL Servo Motor 460VAC 5000 RPM 2.10Nm Incremental Encoder 24VDC Brake Keyed
Brand: NHP
SKU: MPLB230PHJ74AA
Alternatively Known As: MPL Servo Motor, Kinetix Servo Motor, Allen-Bradley Servo Motor
Technical Specifications
- Voltage Class AC: 400 V
- Feedback Type: 2000 line incremental encoder
- Feedback Resolution: 2000 pulses/rev
- With Brake: Yes
- Magnet Stack Length: 76.2 mm
- Magnet Stack Number of Magnets: 30
- Degree of Protection: IP50
- Rotational Speed: 5000 1/min
- Nominal Torque: 8.2 Nm
- Torque: 2.1 Nm
- Max Shock Acceleration: 20 g
- Max Vibration Frequency Operational: 2000 Hz
- Max Vibration Acceleration: 2.5 m/s²
- Operating Temperature: 0-40 °C
- Allowable Relative Humidity: 5-95 %
- Ambient Temperature: -30-70 °C
- Dimensions (H x L x W): 76mm x 200mm x 76mm
- Weight: 0.003 kg
Key Features
- 2000 line incremental encoder for precise feedback.
- Nominal torque of 8.2 Nm and maximum torque of 2.1 Nm.
- IP50 rated for protection against dust and debris.
- Operating temperature range of -30 to 70 °C.
Professional Installation Requirements
- Professional installation by a qualified technician is recommended for optimal performance.
Applications
- Industrial automation and control systems
- Robotics and motion control
- CNC machinery and precision equipment
Standards & Compliance
- Complies with relevant Australian standards for electrical safety.
Environmental Benefits
- Designed for high efficiency and reduced energy consumption.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Allen-Bradley Kinetix MPL Servo Motor is available now for immediate purchase. Ideal for industrial automation and control applications.
