KNX Compact IP40 Ceiling Flush Mounted Microwave Detector | 16m Detection Range | Two ELV Switch Inputs | by CP Electronics

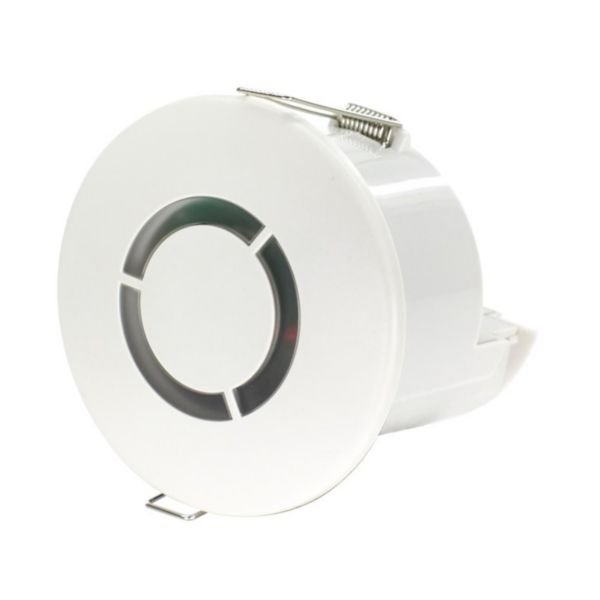

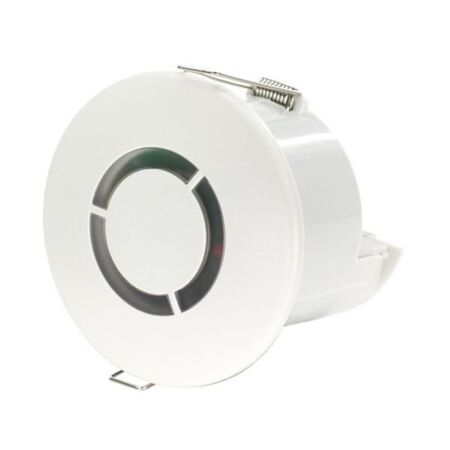

The KNX Compact IP40 Ceiling Flush Mounted Microwave Presence/Absence Detector is designed for efficient lighting control in commercial spaces. With a detection range of up to 16 meters and two ELV switch inputs for manual override, it ensures optimal energy savings and convenience. Ideal for automated lighting in meeting rooms and corridors, this detector is fully programmable using KNX ETS software, making it perfect for integrated KNX systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: KNX Compact IP40 Ceiling Flush Mounted Microwave Detector | 16m Detection Range | Two ELV Switch Inputs | by CP Electronics
Brand: CP Electronics
SKU: MWS6-KNX
Alternatively Known As: KNX Microwave Presence Detector, Flush Mounted Occupancy Sensor, KNX Presence Sensor
Technical Specifications
- Detection range: up to 16 meters at 2.8 meters mounting height
- Switch inputs: Two ELV switch inputs for manual override
- Programming: KNX ETS software, IR handset, and push switch
- IP Rating: IP40
- Mounting: Ceiling flush mounted or surface mount box
- Background monitoring: No
- Acoustic sensor: No
- Connection cable: Not included
- Dimensions (H x L x W): 40mm x 80mm x 80mm
- Weight: 0.2 kg
Key Features
- Low profile microwave detector suitable for flush mounting or surface mount box
- Range up to 16m at 2.8m mounting height
- Two ELV switch inputs for manual override of dimming levels or light on/off
- KNX programming mode accessible via IR handset or push switch
- Programmable logic block for custom conditions
- Full scene selection functionality via UHS7 infrared handset
- Fully programmable using KNX ETS commissioning software
- Manufactured in the UK
Professional Installation Requirements
- Installation and configuration should be performed by a qualified electrician or KNX system integrator to ensure compliance with electrical standards and proper KNX programming.
Applications
- Commercial and office lighting control
- Automated lighting in meeting rooms and corridors
- Energy-saving presence detection in KNX integrated systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Helps reduce energy consumption by automatically controlling lighting based on occupancy
- Supports energy-efficient building management systems
Warranty Information
Standard manufacturer warranty of 2 years against defects.
Available Now
The CP Electronics KNX Compact IP40 Ceiling Flush Mounted Microwave Presence/Absence Detector is available for immediate purchase, ideal for commercial and integrated KNX lighting control applications.
