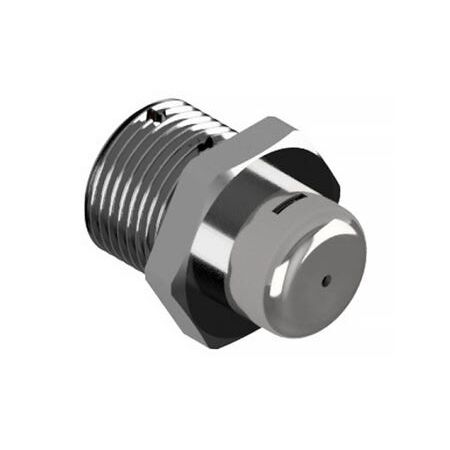

Kopex Metallic M20 IP66 -60°C +200°C Nickel-Plated Brass Cabac
Cabac Kopex Metallic Drain Valve M20 IP66 Rated -60°C to +200°C features nickel-plated brass finish. Suited for AS NZS 2053 conduit installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Temperature Range: -60°C to +200°C (-76°F to +392°F)
- IP Rating: IP66
- Material: Nickel-plated brass
- Certification: IMQ, 15 ATEX 012U, IECEx IMQ
- Explosion Protection: Ex II 2 GD, Ex e IIC Gb, Ex tb IIIC Db
- Dimensions (H x L x W): 40mm x 60mm x 40mm
- Weight: 0.2 kg
Key Features
- Increased safety with Ex e certification
- Suitable for Zone 1, 2, 21, and 22 hazardous areas
- Allows drainage from enclosure
- Certified by IMQ, 15 ATEX 012U, IECEx IMQ
- Temperature range from -60°C to +200°C
- IP66 rated for dust and water protection
- Made from nickel-plated brass for durability
Professional Installation Requirements
- Installation should be performed by a qualified professional experienced with hazardous area equipment to ensure compliance with safety standards.
Applications
- Suitable for hazardous areas to prevent water and condensation buildup inside enclosures
- Used in Zone 1, 2, 21, and 22 hazardous locations
Standards & Compliance
- Complies with AS/NZS 60035 – Electrical Equipment in Explosive Atmospheres
Environmental Benefits
- Prevents water and condensation buildup which can extend the life of electrical enclosures and reduce waste
- Durable nickel-plated brass construction reduces need for frequent replacements
Warranty Information
Standard manufacturer warranty applies. Please refer to Cabac warranty terms for details.
Available Now
The Cabac DV Series Ex e Drainage Device M20 is available now for immediate purchase. Ideal for use in hazardous area enclosures requiring safe drainage solutions.
FAQ
Q: Where can this metallic drain valve be used?
A: It is suitable for hazardous area enclosures in Zone 1, 2, 21, and 22 where water and condensation drainage is required.
Q: What certifications does this drain valve meet?
A: It is certified to IMQ, ATEX 012U, IECEx IMQ and complies with AS/NZS 60035 – Electrical Equipment in Explosive Atmospheres.
Pair this drain valve with a junction box lid to help protect electrical enclosure openings.
Install an ISO back box where protected enclosure mounting is required for electrical installations.
Add an inspection tee where conduit systems require accessible inspection and maintenance points.
