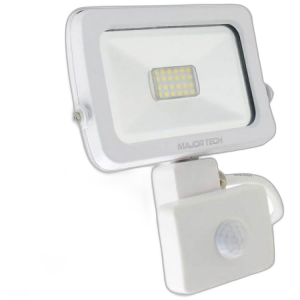

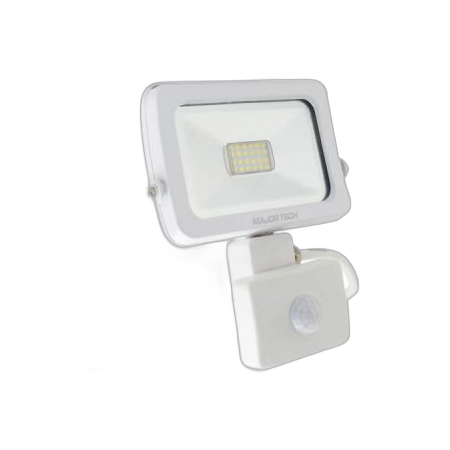

LED Floodlight 10W with PIR Sensor 4000K MajorTech

BRAND: Major Tech
SKU: SLF10CW
$66.20 List price: $88.20
+ −
30 Days Return Electricians Unlock Trade Access
MajorTech LED floodlight features 10W output, a PIR sensor and 4000K light. Ideal for outdoor security and area lighting.

Alternatively Known As: Major Tech SLF10CW, Slimline PIR Security Floodlight, 10W Motion Sensor Floodlight

Technical Specifications
  • LED Power: 10W
  • Luminous Flux: 900 lm
  • Luminous Efficacy: 90 lm/W
  • Colour Temperature: 4000K natural white
  • LED Type: SMD 2835
  • Input Voltage: 200–240V AC
  • Frequency: 50/60Hz
  • Power Factor: >0.9
  • Colour Rendering Index: >70
  • Beam Angle: 120°
  • Ingress Protection: IP54
  • PIR Detection Distance: 2–12m at temperatures below 24°C
  • PIR Detection Range: 180°
  • Sensor Delay: 5 seconds to 10 minutes, ±2 minutes
  • Ambient Light Adjustment: 2–2000 lux
  • Cable Length: 300mm
  • Recommended Installation Height: 1.8–2.5m
  • Rated Life: 30,000 hours
  • Housing: Corrosion-resistant aluminium with strengthened clear glass
  • Bracket Adjustment: 360° rotation
  • Dimensions (H x L x W): 55mm x 182mm x 150mm
  • Weight: 0.488 kg
Key Features
  • Integrated PIR motion sensor for security and area lighting
  • 900-lumen output from a 10W LED module
  • 4000K natural white illumination
  • 120° beam angle for broad coverage
  • IP54-rated housing for protected outdoor applications
  • 360° rotating mounting bracket for directional adjustment
  • Adjustable detection distance, delay time and ambient-light threshold
  • Low-maintenance SMD LED design
Professional Installation Requirements
  • Mains electrical connection should be completed by a qualified and licensed electrician in accordance with AS/NZS 3000 and the manufacturer's installation instructions. Connect the supplied live, neutral and earth conductors correctly before commissioning.
Applications
  • Residential driveways, entrances and pathways
  • Gardens, patios and outdoor living areas
  • Car parks and small commercial premises
  • Security lighting around sheds, garages and service areas
  • Billboards, signage and focal-feature illumination
Standards & Compliance
  • AS/NZS 60598.1: applicable general safety requirements for luminaires
  • AS/NZS 60598.2.5: applicable particular requirements for floodlights
  • AS/NZS 3000: applicable wiring and installation requirements for fixed mains-connected lighting equipment
Environmental Benefits
  • 90 lm/W efficacy provides efficient illumination for a 10W connected load
  • 30,000-hour rated LED life can reduce replacement frequency and material waste
  • Aluminium housing is durable and widely recyclable at end of service life
  • LED technology and low-maintenance construction can reduce ongoing energy and replacement requirements
Warranty Information

Major Tech lists SLF floodlights with a 2-year extended warranty. Australian warranty registration may be required within 30 days, and claims are handled through the distributor or retailer. ([majortech.com.au](https://www.majortech.com.au/shipping-returns?utm_source=openai))

Available Now

Available through MajorTech and authorised Australian electrical distributors, subject to distributor stock levels.
