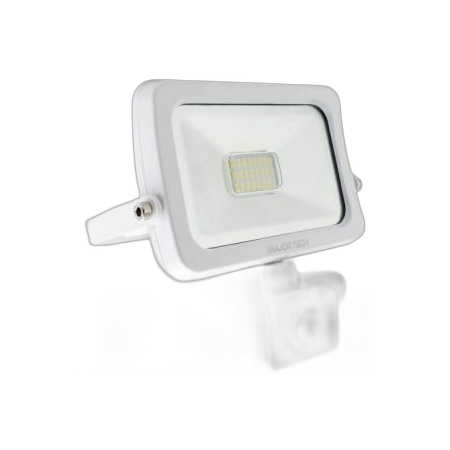

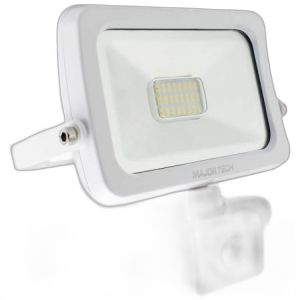

LED Floodlight 20W with PIR Sensor 4000K MajorTech
MajorTech LED floodlight features 20W output, a PIR sensor and 4000K light. Ideal for outdoor security and area lighting.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Major Tech SLF20CW Slimline LED Security Floodlight, 20W PIR LED Floodlight
Technical Specifications
- Model: SLF20CW
- Rated Power: 20W
- Luminous Flux: 1,800 lm
- Luminous Efficacy: 90 lm/W
- Colour Temperature: 4000K natural white
- LED Type: SMD 2835
- Rated Life: 30,000 hours
- Input Voltage: 200–240V AC
- Frequency: 50/60Hz
- Power Factor: >0.9
- Colour Rendering Index: >70
- Beam Angle: 120°
- Ingress Protection: IP54
- PIR Detection Distance: 2–12m at temperatures below 24°C
- PIR Detection Range: 180°
- Time Delay: 5 seconds to 10 minutes
- Ambient Light Adjustment: 2–2,000 lux
- Installation Height: 1.8–2.5m
- Cable Length: 300mm
- Operating Temperature: -20°C to 45°C
- Operating Humidity: <93% RH
- Dimensions (H x L x W): 55mm x 230mm x 230mm
- Weight: 1.16 kg
Key Features
- Integrated PIR motion sensor for automatic security lighting
- 1,800 lumen output from a 20W LED module
- 4000K natural white light suitable for outdoor security and general area lighting
- Slimline housing with adjustable mounting bracket
- 360-degree bracket rotation for directional positioning
- 120-degree beam angle for broad coverage
- IP54-rated construction for protected outdoor applications
- Adjustable ambient-light threshold and activation delay
- SMD 2835 LED technology
- 30,000-hour rated LED life
Professional Installation Requirements
- Mains-voltage outdoor installation should be completed by a licensed electrician in accordance with AS/NZS 3000 and the manufacturer's installation instructions. Position the PIR sensor and luminaire to avoid unwanted triggering and ensure the IP54 protection is maintained.
Applications
- Residential outdoor security lighting
- Driveways, paths and entrances
- Garages, sheds and carports
- Commercial building perimeters
- Outdoor work areas and general area lighting
- Replacement of conventional mains-powered security floodlights
Standards & Compliance
- AS/NZS 60598.1:2017 — Luminaires, general requirements and tests
- AS/NZS 60598.2.5 — Particular requirements for floodlights
- AS/NZS 3000 — Electrical installations, relevant to mains installation
Environmental Benefits
- Produces approximately 90 lumens per watt, reducing energy use compared with many conventional floodlights
- 30,000-hour rated LED life can reduce replacement frequency and associated waste
- LED light source avoids routine lamp replacement during its rated service life
Warranty Information
Two-year warranty for SLF floodlights under MajorTech's Australian warranty policy, subject to the manufacturer's terms and conditions.
Available Now
Available through MajorTech and authorised Australian electrical and lighting distributors.
