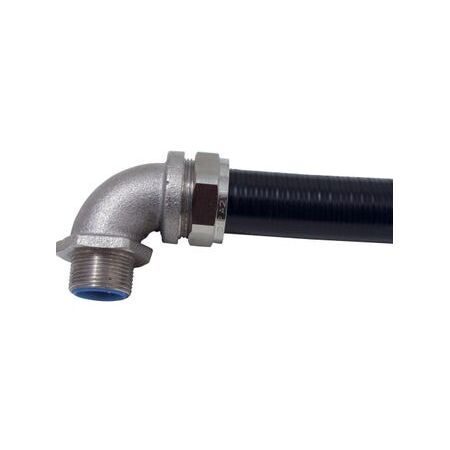

Liquid Tight 90 Degree 304 IP66 40mm Stainless Steel Cabac
Cabac Liquid Tight 90 Degree Fitting 304 Grade IP66 Rated 40mm features stainless steel finish. Suited for AS NZS 2053 conduit installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connector body: 304 Stainless Steel
- Hexagonal nut: 304 Stainless Steel
- Sealing ring: Nylon 66
- Ferrule: Galvanised steel
- Thread size: 40mm
- Conduit size: 40mm
- Tested and Certified to IEC60079-0: 2007-10 and IEC60079-31: 2008
- Ex ta IIIC IP66 Hazardous Area Type Protection
- IEC Ex TSA 11.0026 Hazard Area Certification Number
- Dimensions (H x L x W): 98mm x 59mm x 70mm
- Weight: 0.3 kg
Key Features
- 304 grade stainless steel construction for superior corrosion and chemical resistance
- Male thread with external thread for threaded entries and knockouts
- Dust proof, liquid tight seal providing mechanical and environmental protection
- Supplied with sealing ring and flanged grounding cone for excellent pull-out strength
- One-piece installation with swivel fitting for easy use
Professional Installation Requirements
- Professional installation by a qualified electrician or technician is recommended to ensure compliance with safety standards and proper sealing.
Applications
- Machining centres and robotics
- General wiring for OEM applications
- Low fire hazard applications
- Underfloor wiring in office buildings
- Narrow space static installations
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel construction reduces need for frequent replacements
- Corrosion resistance extends product life, minimizing waste
- Supports safe and secure wiring installations reducing environmental hazards
Warranty Information
Standard manufacturer warranty applies. Please refer to Cabac warranty terms for details.
Available Now
The Cabac Liquid Tight 90 Degree Stainless Steel Fitting 40mm is available now for immediate purchase. Ideal for industrial and commercial conduit wiring applications requiring high corrosion resistance and hazardous area protection.
FAQ
Q: What conduit size is this fitting designed for?
A: This fitting is designed for 40mm conduit installations.
Q: What applications is this stainless steel fitting suitable for?
A: It is suitable for machining centres, robotics, OEM wiring, low fire hazard applications, underfloor office wiring, and narrow space static installations.
Use a liquid tight conduit fitting 45 degree where conduit runs require a sealed directional transition.
Add a liquid tight conduit fitting for straight conduit entries that require dependable environmental sealing.
Pair this fitting with a liquid tight conduit fitting 90 degree when building sealed conduit systems with multiple bends.
