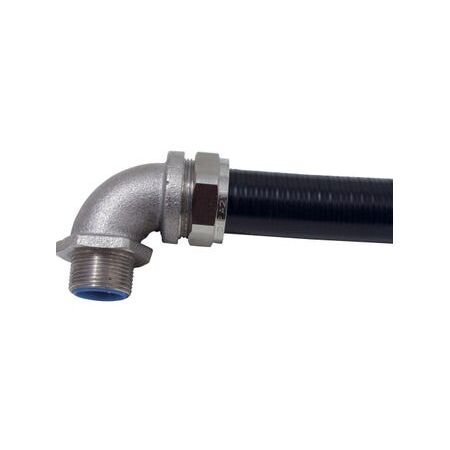

Liquid Tight 90 Degree Fitting 32mm Thread Stainless Steel Cabac
Cabac Liquid Tight 90 Degree Fitting 32mm Thread Size Dust Proof & Liquid Tight Seal IEC Ex Certified features stainless steel finish.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connector body: 304 Stainless Steel
- Hexagonal nut: 304 Stainless Steel
- Sealing ring: Nylon 66
- Ferrule: Galvanised steel
- Thread size: 32mm
- Conduit size: 32mm
- Dust proof and liquid tight seal
- Mechanical and environmental protection
- Certified to IEC60079-0: 2007-10 and IEC60079-31: 2008
- Dimensions (H x L x W): 80mm x 46.5mm x 55mm
- Weight: 0.3 kg
Key Features
- 304 grade stainless steel construction for superior corrosion and chemical resistance
- Male thread with external thread for threaded entries and knockouts
- Dust proof, liquid tight seal providing mechanical and environmental protection
- Supplied with sealing ring and flanged grounding cone for excellent pull-out strength
- One-piece installation with swivel fitting for easy use
- Tested and Certified to IEC60079-0: 2007-10 and IEC60079-31: 2008
- Ex ta IIIC IP66 Hazardous Area Type Protection
- IEC Ex TSA 11.0026 Hazard Area Certification Number
Professional Installation Requirements
- Professional installation by a qualified electrician or technician is recommended to ensure proper sealing and compliance with safety standards.
Applications
- Machining centres and robotics
- General wiring for OEM applications
- Low fire hazard applications
- Underfloor wiring in office buildings
- Narrow space static installations
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel construction reduces need for frequent replacements
- Corrosion resistance extends product life, minimizing waste
- Supports safe and secure wiring installations reducing environmental hazards
Warranty Information
Standard manufacturer warranty applies. Please refer to Cabac warranty terms for details.
Available Now
The Cabac Liquid Tight 90 Degree Stainless Steel Fitting 32mm is available now for immediate purchase. Ideal for industrial, commercial, and hazardous area conduit wiring applications.
FAQ
Q: What conduit size is this fitting designed for?
A: This fitting is designed for 32mm conduit installations.
Q: Where can this stainless steel fitting be used?
A: It is suitable for machining centres, robotics, OEM wiring, low fire hazard applications, underfloor office wiring, and narrow space static installations, with a liquid tight and dust proof seal for added protection.
Complete your conduit installation with a liquid tight conduit fitting 45 degree where directional cable entry is required.
Pair this fitting with a liquid tight conduit fitting for straight conduit terminations in sealed installations.
Install alongside a liquid tight conduit fitting 90 degree to maintain consistent conduit routing through multiple connection points.
See our conduit fittings Australia guide for practical information on selecting conduit fittings for electrical installations.
Available now from SCHNAP — trusted by Australian electricians and electrical contractors.
