Trade Discount 25%

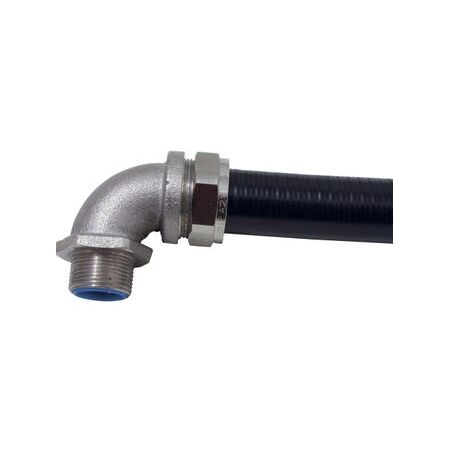

Liquid Tight 90 Degree Fitting 50mm IP66 Stainless Steel Cabac
Cabac Liquid Tight 90 Degree Fitting 50mm Thread Size IP66 Protection features stainless steel finish. Suited for AS NZS 2053 conduit installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connector body: 304 Stainless Steel
- Hexagonal nut: 304 Stainless Steel
- Sealing ring: Nylon 66
- Ferrule: Galvanised steel
- Thread size: 50mm
- Conduit size: 50mm
- Tested and Certified to IEC60079-0: 2007-10 and IEC60079-31: 2008
- Ex ta IIIC IP66 Hazardous Area Type Protection
- IEC Ex TSA 11.0026 Hazard Area Certification Number
- Dimensions (H x L x W): 73mm x 67mm x 97mm
- Weight: 0.3 kg
Key Features
- 304 grade stainless steel construction for superior corrosion and chemical resistance
- Male thread with external thread for threaded entries and knockouts
- Dust proof, liquid tight seal providing mechanical and environmental protection
- Supplied with sealing ring and flanged grounding cone for excellent pull-out strength
- One-piece installation with swivel fitting for easy use
Professional Installation Requirements
- Professional installation by a qualified electrician or technician is recommended to ensure proper sealing and compliance with hazardous area requirements.
Applications
- Machining centres and robotics
- General wiring for OEM applications
- Low fire hazard applications
- Underfloor wiring in office buildings
- Narrow space static installations
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel construction reduces need for frequent replacements
- Corrosion resistance extends product life, minimizing waste
Warranty Information
Warranty details available upon request from manufacturer.
Available Now
The Cabac Liquid Tight 90 Degree Stainless Steel Fitting 50mm is available now for immediate purchase. Ideal for industrial, commercial, and hazardous area conduit installations.
FAQ
Q: What conduit size is this fitting designed for?
A: This fitting is designed for 50mm conduit installations.
Q: What applications is this stainless steel fitting suitable for?
A: It is suitable for machining centres, robotics, OEM wiring, low fire hazard applications, underfloor office wiring, and narrow space static installations.
Install a liquid tight conduit fitting 45 degree where conduit runs require a sealed change of direction.
Pair this installation with a liquid tight conduit fitting for straight conduit entries requiring environmental sealing.
Include a liquid tight conduit fitting 90 degree when creating multiple sealed conduit junctions throughout the installation.
Review the conduit fittings Australia guide for practical information on choosing conduit fittings for electrical installations.
Available now from SCHNAP — trusted by Australian electricians and electrical contractors.
