Liquid Tight Fitting 20mm Thread Size Stainless Steel Cabac
Cabac Liquid Tight Fitting 20mm Thread Size features stainless steel finish. Suited for AS NZS 2053 conduit installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connector body: 304 Stainless Steel
- Hexagonal nut: 304 Stainless Steel
- Sealing ring: Nylon 66
- Ferrule: Galvanised steel
- Thread size: 20mm
- Conduit size: 20mm
- Tested and Certified to IEC60079-0: 2007-10 and IEC60079-31: 2008
- Ex ta IIIC IP66 Hazardous Area Type Protection
- IEC Ex TSA 11.0026 Hazard Area Certification Number
- Dimensions (H x L x W): 36mm x 56mm x 56mm
- Weight: 0.1 kg
Key Features
- 304 grade stainless steel construction for superior corrosion and chemical resistance
- Male thread with external thread for threaded entries and knockouts
- Dust proof, liquid tight seal providing mechanical and environmental protection
- Supplied with sealing ring and flanged grounding cone for excellent pull-out strength
- One-piece installation with swivel fitting for easy use
Professional Installation Requirements
- Installation should be performed by a qualified professional to ensure compliance with hazardous area standards and proper sealing.
Applications
- Machining centres and robotics
- General wiring for OEM applications
- Low fire hazard applications
- Underfloor wiring in office buildings
- Narrow space static installations
Standards & Compliance
- AS/NZS 60035 – Electrical Equipment in Explosive Atmospheres
Environmental Benefits
- Durable stainless steel construction reduces need for frequent replacements
- Corrosion resistance extends product life, minimizing waste
Warranty Information
Standard manufacturer warranty applies. Please refer to Cabac warranty terms for details.
Available Now

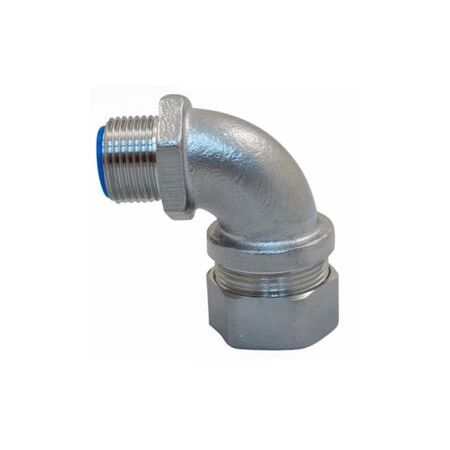

The Cabac Liquid Tight 90 DEG Stainless Steel Fitting 20MM is available now for immediate purchase. Ideal for industrial and commercial conduit wiring requiring hazardous area protection.
FAQ
Q: What is this fitting made from?
A: The fitting features a 304 stainless steel connector body and hexagonal nut, a nylon 66 sealing ring and a galvanised steel ferrule.
Q: What applications is this fitting suitable for?
A: It is suitable for machining centres and robotics, OEM wiring, low fire hazard applications, underfloor office wiring and narrow space static installations, with hazardous area certification shown on the product page.
Pair this fitting with a compatible Liquid Tight Stainless Steel Fitting for straight conduit connections within the same installation.
Complete threaded conduit entries with a matching Locknut Stainless Steel 304 M20 for a secure installation.
Install a compatible Liquid Tight Connector where conduit systems require sealed cable entry points.
