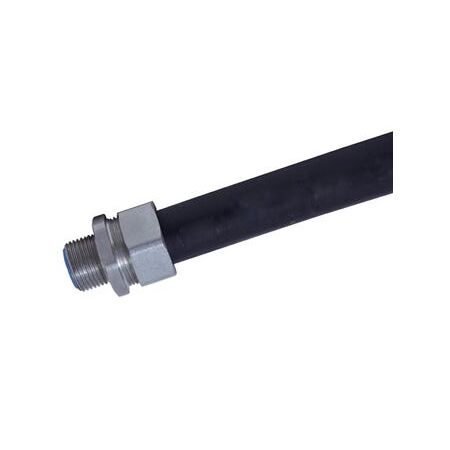

Liquid Tight Fitting 40mm 304 Grade IP66 Stainless Steel Cabac
Cabac Liquid Tight Fitting 40mm 304 Grade Dust Proof & Liquid Tight Seal Ex Ta IIIC IP66 features stainless steel finish.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connector body: 304 Stainless Steel
- Hexagonal nut: 304 Stainless Steel
- Sealing ring: Nylon 66
- Ferrule: Galvanised steel
- Thread size: 40mm
- Conduit size: 40mm
- Dimensions (H x L x W): 33mm x 18.2mm x 59mm
- Weight: 0.1 kg
Key Features
- 304 grade stainless steel construction for superior corrosion and chemical resistance
- Male thread with external thread for threaded entries and knockouts
- Dust proof, liquid tight seal providing mechanical and environmental protection
- Supplied with sealing ring and flanged grounding cone for excellent pull-out strength
- One-piece installation with swivel fitting for easy use
- Tested and Certified to IEC60079-0: 2007-10 and IEC60079-31: 2008
- Ex ta IIIC IP66 Hazardous Area Type Protection
- IEC Ex TSA 11.0026 Hazard Area Certification Number
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure proper sealing and compliance with hazardous area requirements.
Applications
- Machining centres and robotics
- General wiring for OEM applications
- Low fire hazard applications
- Underfloor wiring in office buildings
- Narrow space static installations
Standards & Compliance
- Complies with AS/NZS 60035 – Electrical Equipment in Explosive Atmospheres
Environmental Benefits
- Durable stainless steel construction reduces need for frequent replacements
- Corrosion resistance extends product life, minimizing waste
- Supports safe and secure wiring installations reducing environmental hazards
Warranty Information
Warranty details available upon request from manufacturer.
Available Now
The Cabac Liquid Tight STR Stainless Steel Fitting 40MM is available now for immediate purchase. Ideal for industrial and commercial conduit wiring applications requiring high corrosion resistance and hazardous area protection.
FAQ
Q: What materials are used in this fitting?
A: The fitting features a 304 stainless steel connector body and hexagonal nut, a nylon 66 sealing ring and a galvanised steel ferrule.
Q: What applications is this fitting suitable for?
A: It is suitable for machining centres and robotics, OEM wiring, low fire hazard applications, underfloor office wiring, narrow space installations and hazardous area conduit systems.
Pair this fitting with a compatible Liquid Tight Stainless Steel Fitting where a right-angle conduit connection is required.
Secure threaded conduit entries with a Locknut Stainless Steel 304 M40 for a dependable installation.
Install a compatible Liquid Tight Connector where conduit systems require sealed cable entry points.
