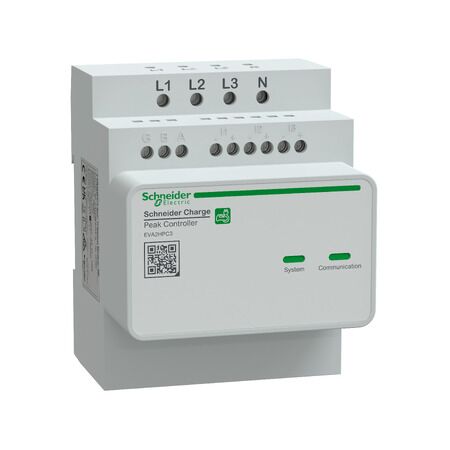

Load Shedder 3P Auto 50A Max Current LED Indicators Clipsal

BRAND: Clipsal
SKU: SCHEVA2HPC3
$378.20 List price: $471.30
+ −
30 Days Return Electricians Unlock Trade Access
Clipsal Load Shedder Auto Max Current LED Indicators features 5W, 220-230V AC 50 60Hz + 10% and -30 to 50 °C. Ideal for electric vehicle charging stations.
Technical Specifications
  • Power consumption: 5W
  • Operating voltage: 220-230V AC 50/60Hz +/- 10%
  • Operating temperature: -30 to 50 °C
  • Storage temperature: -40 to 85 °C
  • Relative humidity: 5 to 95%
  • Overvoltage category: III
  • Pollution degree: 2
  • Dimensions (H x L x W): 72mm x 75mm x 89mm
  • Weight: 0.18 kg
Key Features
  • Automatically sets maximum current to charging station up to 50A.
  • Designed for three-phase connectivity.
  • Local signaling with LED indicators for control and fault indication.
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Electric vehicle charging stations
  • Commercial and residential energy management
Standards & Compliance
  • Complies with EN 61010-1:2010 and EN 61326-1:2013 standards.
Environmental Benefits
  • Complies with environmental standards for safety and performance.
Warranty Information

Standard warranty applies.

Available Now

The Clipsal Schneider Charge Load-shedder is available now for immediate purchase. Ideal for electric vehicle charging applications.

FAQ

Q: What is the maximum current setting supported by this load shedder?
A: The load shedder automatically sets the charging station current up to a maximum of 50A.

Q: Where can this load shedder be used?
A: It is designed for electric vehicle charging stations and commercial or residential energy management applications.


Pair this load shedder with an EV load management system for 6 charge points to support coordinated charging control.
An EV charging station enclosure helps protect charging equipment installed in demanding environments.
Complete your installation with an EV charging station pedestal for secure freestanding charger mounting.

Understand installation planning with this commercial EV charger selection guide before specifying load management equipment.

Register for a trade account to access exclusive pricing on this and other electrical products.


EVA2HPC3 (EVA2HPC3, 206 Kb) [Download]
