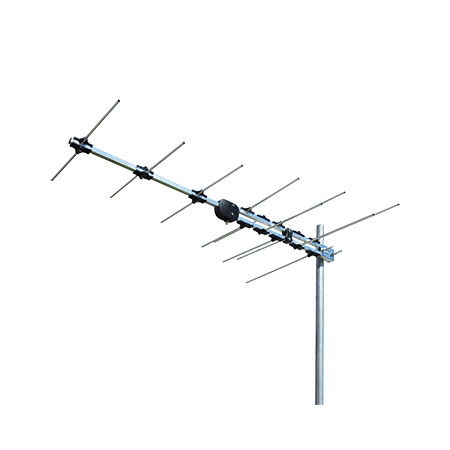

Log Periodic Digital TV Antenna VHF 6-12 | 8 Elements | 10 dBi Gain | Horizontal/Vertical by Matchmaster

SKU: 03MM-LP03VF
$113.70 List price: $137.60
Free pick up (over 1 meter)
For delivery quote message
Log periodic digital TV antenna with VHF 6-12 frequency range and 8 elements—ideal for homes and commercial buildings. Built for optimal reception, with 10 dBi gain and horizontal/vertical polarization.

Product Name/Title: Log Periodic Digital TV Antenna VHF (6-12) 8 Elements

Brand: Matchmaster

SKU: 03MM-LP03VF

Alternatively Known As: VHF Log Periodic TV Antenna, 8 Element VHF Yagi Antenna, Digital TV VHF Antenna, 4G/5G LTE Filtered TV Antenna

Technical Specifications
  • Elements: 8
  • Channels: VHF (6-12)
  • AV VSWR: <2:1
  • Maximum Gain: 6dB
  • Front/Back Ratio: 16dB
  • Balun: 'F' Type PCB
  • 4G/5G LTE Filter: 652MHz low pass
  • Dimensions (H x L x W): 300mm x 1200mm x 800mm
  • Weight: 1.2 kg
Key Features
  • 8 element VHF log periodic antenna
  • Receives channels 6-12
  • 4G/5G LTE 652MHz low pass filter to reduce mobile cellular signal interference
  • 7.0mm extruded aluminium tube snap lock design for durability
  • 6.0dB maximum gain
  • Mounting clamp at the rear creates stub for improved VSWR

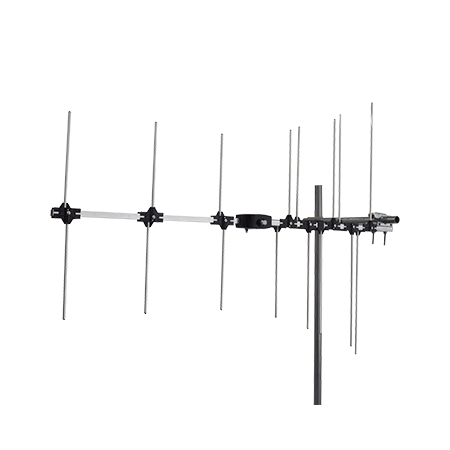

  • Can be mounted in horizontal or vertical polarities
Professional Installation Requirements
  • Professional installation by a qualified technician is recommended to ensure optimal antenna positioning and secure mounting.
Applications
  • Residential: Homes requiring VHF digital TV reception
  • Commercial: Small businesses and offices needing reliable VHF TV signal
  • Outdoor: Suitable for mounting on rooftops or outdoor poles
Standards & Compliance
  • Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
  • Improves signal reception reducing the need for additional electronic amplifiers, lowering energy consumption.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Matchmaster Log Periodic Digital TV Antenna VHF (6-12) 8 Elements is available now for immediate purchase. Ideal for residential and commercial digital TV reception in Australian VHF broadcast zones.

Brochure (03mm-lp03vf_brochure.pdf, 394 Kb) [Download]

Full Product Catalogue (full-product-catalogue.pdf, 25,988 Kb) [Download]
