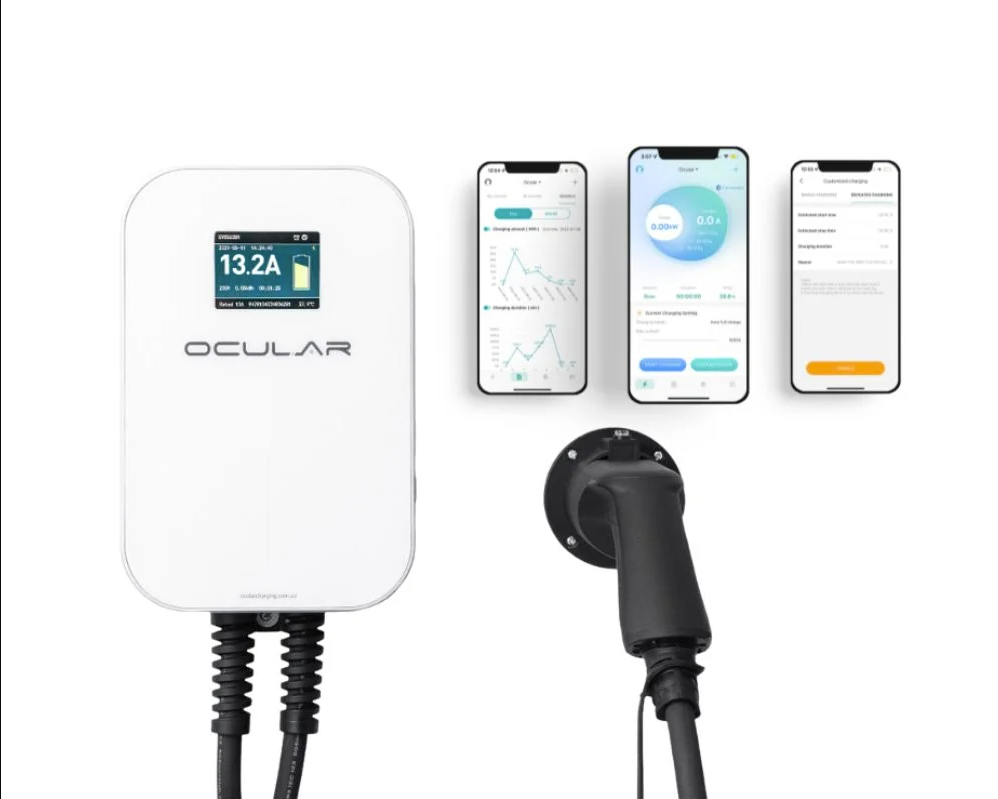

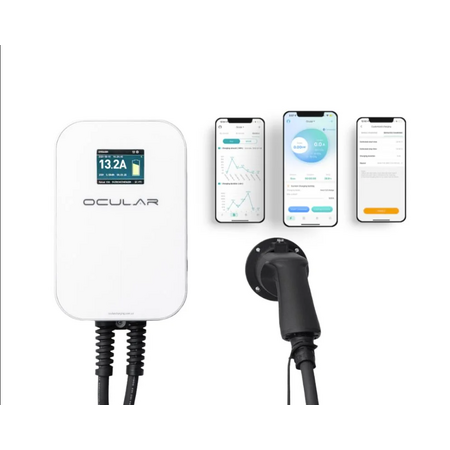

LTE Plus 22kW 3P EV Charging Station w/ 6m Type 2 Cable Ocular
Deliver fast EV charging with this 22kW three-phase charging station featuring a tethered 6m Type 2 cable and Bluetooth mobile app control. Designed with 400V AC three-phase input, Mode 3 charging and an outdoor-rated enclosure for residential, commercial and public charging locations. Complies with AS/NZS 3000 and AS/NZS 3112 requirements shown on this page. See the full specifications below for dimensions, installation requirements and operating features.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: EV Charger 22kW, Three Phase EV Charger, Type 2 EV Charging Station, Fast EV Charger
Technical Specifications
- Charging Power: 22kW three phase
- Cable Type: Type 2, 6 meters length
- Connectivity: LTE with mobile app control
- Input Voltage: 400V AC three phase
- Charging Mode: Mode 3
- Ingress Protection: IP54 rated for outdoor use
- Dimensions (H x L x W): 500mm x 150mm x 300mm
- Weight: 15 kg
Key Features
- Three phase 22kW charging power for fast EV charging
- Includes 6 meter Type 2 charging cable
- Integrated mobile app for monitoring and control
- Durable and weather-resistant design suitable for outdoor installation
Professional Installation Requirements
- Installation must be performed by a licensed electrician experienced with three phase electrical systems and EV charging stations.
Applications
- Residential EV charging
- Commercial EV charging stations
- Public EV charging infrastructure
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
Environmental Benefits
- Supports electric vehicle adoption reducing greenhouse gas emissions
- Energy efficient charging technology minimizes power loss
- Encourages use of renewable energy sources when paired with solar systems
Warranty Information
3 years warranty covering manufacturing defects and performance issues.
Available Now
The Ocular LTE Plus 22kW 3P EV Charging Station with 6m Type 2 Cable is available for immediate purchase, ideal for residential, commercial, and public EV charging applications.
FAQ
Q: What charging cable is included with this EV charging station?
A: The unit includes a tethered 6 metre Type 2 charging cable for Mode 3 EV charging.
Q: Where can this EV charging station be installed?
A: It is suitable for residential EV charging, commercial EV charging stations and public EV charging infrastructure when installed by a licensed electrician.
Pair this charging station with an EV charging station pedestal for secure freestanding installation where wall mounting is not suitable.
Add an EV charging cable holder to keep the Type 2 charging cable neatly stored when the charger is not in use.
Integrate an EV load management system for 6 charge points to support coordinated charging across multiple installations.
Review this three-phase EV charger guide when selecting charging equipment for higher power installations.
Available now from SCHNAP — trusted by Australian electricians and electrical contractors.
