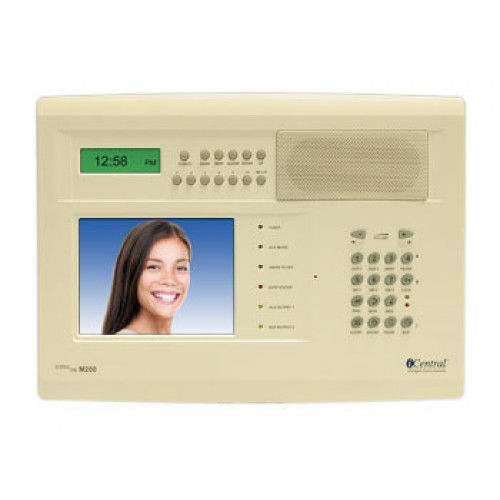

M200 Compact Video Master Station Ivory AM/FM Radio iCentral
iCentral M200 compact video master station features AM/FM radio and an ivory finish. Ideal for System One music and video intercom systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: System One M200 Compact Master Station, iCentral M200 Video Intercom Master, M200CI Ivory Master Station
Technical Specifications
- Model: M200 Compact Master Station
- Finish: Ivory
- Display: 5.6-inch colour TFT LCD with graphical user interface
- Radio: AM/FM tuner with clock, wake-up alarm and station presets
- Power Supply: 13.8 V DC; compatible with iCentral 840-002 or 840-003 supplies
- System Capacity: Supports a master station and combinations of up to 20 room and door stations
- Video Inputs: 3 inputs for door stations, CCTV cameras or TV sources
- Video Output: Output for an additional monitor
- Audio Input: Auxiliary input for iPod, CD, MP3 player or other audio source
- Outputs: 2 programmable automation outputs
- Dimensions (H x L x W): 232mm x 75mm x 320mm
- Weight: 1.5 kg
Key Features
- Compact master station for iCentral System One music, video and intercom systems
- 5.6-inch colour TFT monitor for front-door and connected video sources
- AM/FM radio with clock, wake-up alarm and preset stations
- Compatible with System One D200 video door stations and other System One stations
- Fully programmable through the on-screen graphical user interface
- Supports CCTV camera or TV monitoring through the video inputs
- Includes auxiliary music input and additional video output
- Ivory finish for residential interior installations
- Designed and manufactured in Australia
Professional Installation Requirements
- Professional installation is recommended because the unit requires recessed wall mounting, 13.8 V DC power, intercom cabling, antenna connections and system programming. Installation should be completed by a suitably competent security or communications technician, with any fixed mains wiring carried out by a licensed electrician.
Applications
- Residential video intercom systems
- Front-door monitoring and hands-free communication
- Multi-station home communication systems
- Monitoring compatible CCTV cameras or TV video sources
- Whole-home radio and auxiliary music distribution
- Control of compatible auxiliary devices such as door locks or automation equipment
Standards & Compliance
- AS/NZS 62368.1:2022 is the relevant Australian/New Zealand safety standard for audio, video and communication technology equipment; product-specific compliance should be confirmed from the manufacturer or supplier.
Environmental Benefits
- Combines intercom, video monitoring, clock and AM/FM radio functions in one wall-mounted unit, potentially reducing the need for multiple separate devices
- Replaceable system components and manufacturer support can extend service life and reduce electronic waste
- Operates from a low-voltage 13.8 V DC supply when used with the specified power supply
Warranty Information
iCentral intercom systems are covered by a three-year warranty from the date of purchase against defective components. On-site cover for defective workmanship or materials is provided for the first 90 days when installed by an authorised dealer; warranty claims after this period generally require return to iCentral, with return freight payable by the purchaser. Australian Consumer Law rights also apply.
Available Now
Available through iCentral, Valet and authorised Australian distributors, subject to current range and distributor availability.
