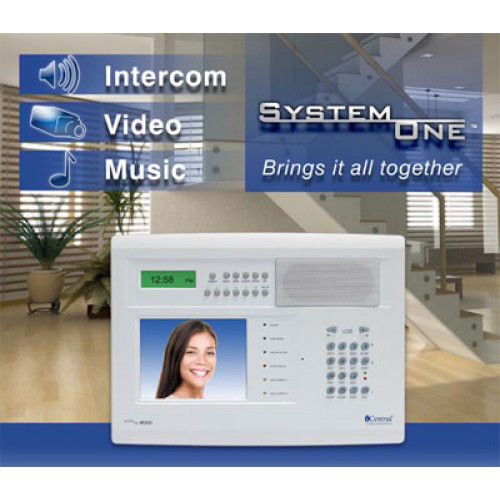

M200 Compact Video Master Station White AM/FM Radio iCentral
iCentral M200 compact video master station features AM/FM radio and a white finish. Ideal for System One music and video intercom systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: System One M200 Compact Master Station, iCentral M200 Video Intercom Master, M200 Master Compact White AM/FM
Technical Specifications
- Radio: AM/FM with digital clock, station presets and wake-up alarm
- Display: 5.6-inch colour TFT LCD with graphical user interface
- System Compatibility: iCentral System One door and room stations
- Video Inputs: 3 inputs for door stations, CCTV cameras or TV sources
- Video Output: Output for an additional video monitor
- Audio Input: Auxiliary input for iPod, MP3, CD or other audio sources
- Automation Outputs: Dual programmable auxiliary outputs
- Power Supply: 13.8 VDC; compatible supplies 840-002 or 840-003
- Cabling: Compatible with 6-wire or 8-wire System One cabling
- Finish: White
- Dimensions (H x L x W): 232mm x 320mm x 75mm
- Weight: 1.8 kg
Key Features
- Compact master station for System One music, video and intercom systems
- AM/FM radio with clock, presets and wake-up alarm
- Front-door video monitoring with compatible System One door stations
- Three video inputs for CCTV cameras or TV sources
- On-screen menu-driven programming via graphical user interface
- Supports room-to-room intercom and hands-free door communication
- Auxiliary music input for external audio sources
- Compatible with up to 20 combined System One stations
Professional Installation Requirements
- Installation should be performed by a suitably qualified security, intercom or communications technician. The unit requires low-voltage system wiring, antenna installation and connection to a compatible 13.8 VDC power supply; any mains connection to the power supply must comply with applicable electrical regulations.
Applications
- Residential video intercom systems
- System One front-door answering and monitoring
- Multi-room audio and intercom installations
- CCTV or auxiliary video monitoring
- Distributed AM/FM radio and music systems
- Home automation control through programmable auxiliary outputs
Standards & Compliance
- AS/NZS 62368.1:2026 is the applicable Australian/New Zealand safety standard category for audio, video and communication equipment; product-specific certification is not stated by the manufacturer.
Environmental Benefits
- Multi-function intercom, video monitoring and radio capability can reduce the need for separate equipment installations
- Durable fixed-installation design can support extended service life and reduce replacement waste
- Replaceable system components and accessories may extend the usable life of the overall System One installation
Warranty Information
iCentral intercom systems are covered for three years from the date of purchase, with defective components repaired or replaced subject to the manufacturer’s warranty terms. An initial 90-day on-site cover applies to systems installed by an authorised dealer; warranty registration may provide an additional year where applicable.
Available Now
Available through iCentral/Ness Corporation and authorised Australian security and communications distributors; confirm current stock and compatibility before ordering.
