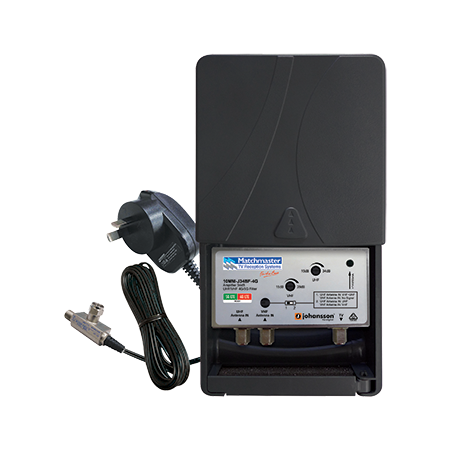

Masthead Amplifier 34dB VHF UHF 4G 5G Filter PSU Grey Matchmaster
Matchmaster VHF UHF masthead amplifier gives 34dB gain, 4G 5G LTE filter and includes 14V DC power supply.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Frequency Range: VHF 174-230MHz, UHF 520-694MHz
- Maximum Gain: VHF 28dB, UHF 34dB
- Gain Control: -15dB
- Input Voltage: 14V DC
- Noise Figure: VHF 3.5dB, UHF 2.5dB
- Maximum Input: 35dBµV
- Maximum Output: 105dBµV
- Dimensions (H x L x W): 60mm x 150mm x 120mm
- Weight: 0.3 kg
Key Features
- 34dB gain combination low noise amplifier with 13dB VHF and 24dB UHF gain adjustment
- Built-in 4G/5G LTE 694MHz low pass filter to eliminate unwanted frequencies
- Selectable VHF and UHF separated or combined input

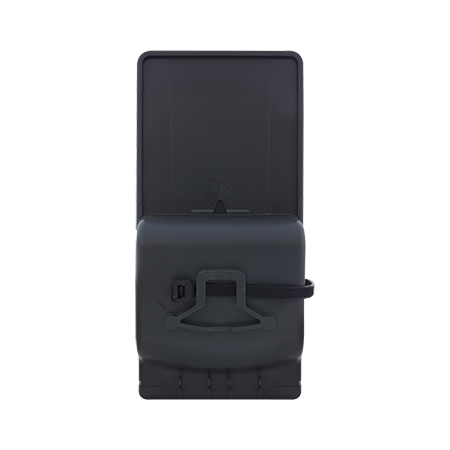

- U/V stabilised weatherproof housing with cable tie
- Wide range DC voltage operation (5-24V DC)
- Includes 14V DC power supply
Professional Installation Requirements
- Professional installation by a qualified technician is recommended to ensure optimal signal performance and compliance with electrical safety standards.
Applications
- Residential: Enhance TV signal reception for homes
- Commercial: Improve signal quality in offices and commercial buildings
- Outdoor: Suitable for antenna installations requiring signal amplification
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Improves signal quality reducing the need for multiple devices and lowering electronic waste
- Energy-efficient operation with wide DC voltage range
Warranty Information
2 years warranty against manufacturing defects.
Available Now
The Matchmaster Masthead Amplifier VHF/UHF 34dB with 4G/5G Filter and Power Supply is available now for immediate purchase. Ideal for residential and commercial antenna signal enhancement.
