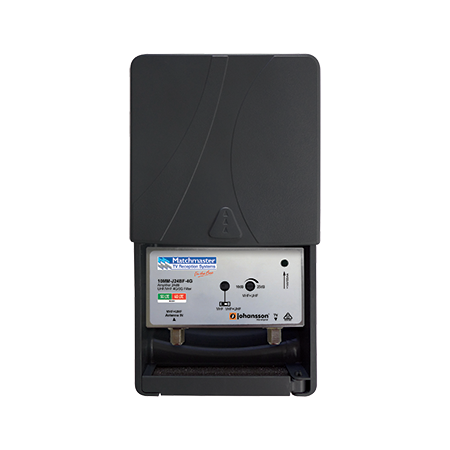

Masthead Amplifier VHF/UHF 24dB | 4G/5G Filter | Signal Booster by Matchmaster

SKU: 10MM-J24BF-4G
$106.60 List price: $129.10
+
Masthead amplifier with 24dB gain and integrated 4G/5G filter—ideal for enhancing VHF/UHF signal reception. Built for homes and commercial spaces, with reduced interference for clearer TV signals.

Product Name/Title: Masthead Amplifier VHF/UHF 24dB with 4G/5G Filter

Brand: Matchmaster

SKU: 10MM-J24BF-4G

Alternatively Known As: VHF/UHF Masthead Amplifier, 4G/5G Filtered TV Signal Amplifier, Low Noise Masthead Amplifier

Technical Specifications
  • Frequency Range: VHF 174-230MHz, UHF 520-694MHz
  • Maximum Gain: 24dB
  • Gain Control: 14dB
  • Input Voltage: 14V DC
  • Noise Figure: 3.5dB
  • Maximum Input: 35dBµV
  • Maximum Output: 105dBµV
  • Dimensions (H x L x W): 40mm x 120mm x 100mm
  • Weight: 0.3 kg
Key Features
  • 24dB gain combination low noise amplifier with 15dB gain adjustment
  • Built-in 4G/5G LTE 694MHz low pass filter to eliminate unwanted frequencies
  • Selectable VHF only or combined VHF/UHF input

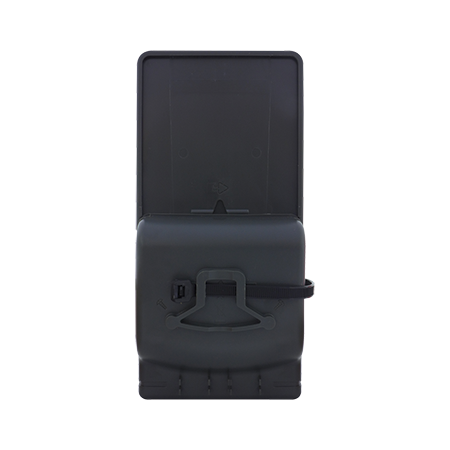

  • U/V stabilised weatherproof housing with cable tie
  • Wide range DC voltage operation from 5-24V DC
Professional Installation Requirements
  • Professional installation by a qualified technician or electrician is recommended to ensure optimal performance and compliance with electrical standards.
Applications
  • Residential: Enhance TV signal reception for homes
  • Commercial: Improve signal quality in offices and commercial buildings
  • Outdoor: Suitable for antenna installations requiring signal amplification
Standards & Compliance
  • Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
  • Improves signal quality reducing the need for multiple repeaters and additional equipment
  • Energy efficient operation with low power consumption
Warranty Information

2 years warranty against manufacturing defects.

Available Now

The Matchmaster Masthead Amplifier VHF/UHF 24dB with 4G/5G Filter is available now for immediate purchase. Ideal for residential and commercial antenna signal enhancement applications.

Brochure (10mm-j24bf-4g_brochure.pdf, 657 Kb) [Download]

Manual (10mm-j24bf-4g_manual.pdf, 56 Kb) [Download]
