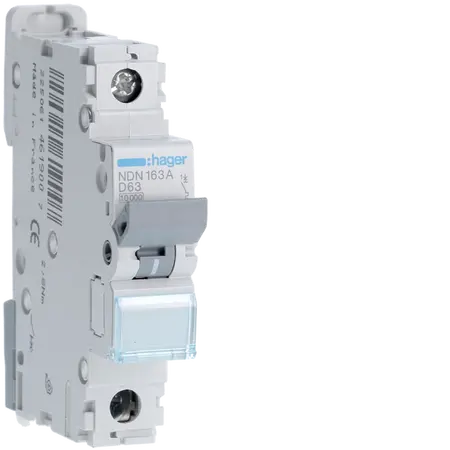

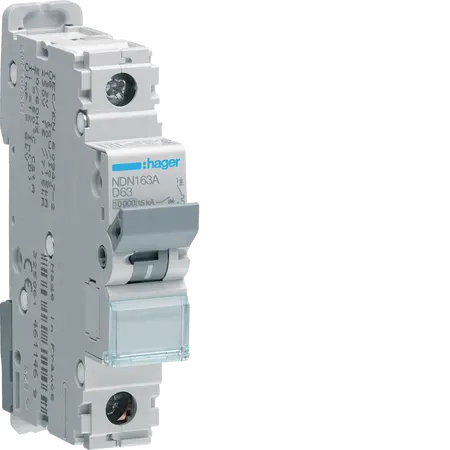

MCB 1P 10kA/15kA D-63A | Modular DIN Rail | IP20 Rated by Hager

BRAND: :hager

SKU: NDN163A

$62.00 List price: $79.30

+ −

30 Days Return Delivery Options

Miniature circuit breaker with 63A rated current and 10kA breaking capacity—ideal for residential, commercial, and light industrial applications. Built for modular DIN rail installation, with IP20 protection and energy efficiency.

Description
Attachments

Product Name/Title: MCB 1P 10kA/15kA D-63A 1M

Brand: Hager

SKU: NDN163A

Alternatively Known As: Miniature Circuit Breaker, MCB, Circuit Protection Device

Technical Specifications

Rated operational voltage: 230 - 400 V
Rated insulation voltage: 500 V
Rated impulse withstand voltage: 6000 V
Frequency: 50 - 60 Hz
Total power loss under IN: 5.73 W
Electric endurance: 4000 cycles
Mechanical operations: 20000 cycles
Operating temperature: -25 to 70 °C
Dimensions (H x L x W): 83mm x 70mm x 17.5mm
Weight: 0.5 kg

Key Features

Rated current of 63 A with a breaking capacity of 10 kA.
Designed for modular installation on DIN rails.
IP20 ingress protection rating.

Professional Installation Requirements

Professional installation by a qualified electrician is recommended for optimal safety.

Applications

Residential: Homes, apartments, and small buildings
Commercial: Offices and retail spaces
Industrial: Light industrial applications requiring circuit protection

Standards & Compliance

Complies with AS/NZS 3000 for electrical installations.

Environmental Benefits

RoHS compliant, contributing to reduced environmental impact.
Designed to improve energy efficiency and reduce carbon footprint.

Warranty Information

2 years warranty against manufacturing defects.

Available Now

The Hager MCB 1P 10kA/15kA D-63A 1M is available now for immediate purchase. Ideal for residential, commercial, and industrial applications.

NDN163A (NDN163A, 123 Kb) [Download]

(PEP_HAGE-00928-V02.01-EN.pdf, 40,154 Kb) [Download]

reach_declaration_NDN163A3.pdf (reach_declaration_NDN163A3.pdf, 103 Kb) [Download]

rohs_declaration_NDN163A3.pdf (rohs_declaration_NDN163A3.pdf, 104 Kb) [Download]

(NDN_MCBS_10KA_D.pdf, 92 Kb) [Download]

(TRANSFORMERPROTECTIONVALUEV2.pdf, 205 Kb) [Download]

(DECLARATION_24_3602_09_24.pdf, 650 Kb) [Download]

(DECLARATION_24_3594_09_24.pdf, 654 Kb) [Download]
