MCB 1P 10kA C-125A | Screw Terminal | Compact Design by Hager
Miniature circuit breaker with 1 pole and 125A rated current—ideal for residential, commercial, and light industrial applications. Built for reliable circuit protection, with 10kA breaking capacity and easy screw terminal installation.
Sign in
Please login to continue to your account.

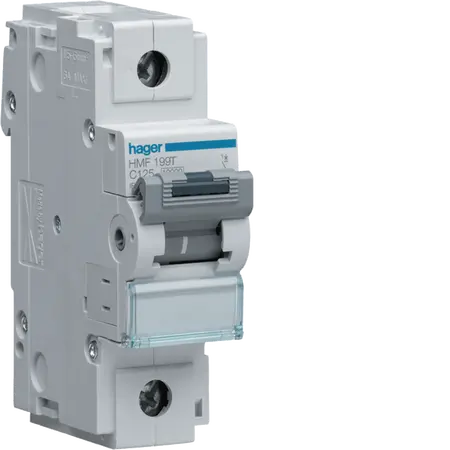

Product Name/Title: MCB 1P 10kA C-125A 1.5M
Brand: Hager
SKU: HMF199T
Alternatively Known As: Miniature Circuit Breaker, MCB, Circuit Protection Device
- Type of pole: 1P
- Rated operational voltage: 240 - 415 V
- Rated insulation voltage: 500 V
- Rated impulse withstand voltage: 6000 V
- Frequency: 50 - 60 Hz
- Rated current: 125 A
- Total power loss under IN: 9.93 W
- Electric endurance: 4000 cycles
- Mechanical operations: 20000 cycles
- Cross-section for massive conductors: 1 - 70 mm²
- Cross-section for flexible conductors: 1 - 50 mm²
- Dimensions (H x L x W): 90mm x 70mm x 27mm
- Weight: 0.5 kg
- 1 Pole configuration with a rated current of 125A.
- 10kA short-circuit breaking capacity.
- Screw terminal connections for easy installation.
- Professional installation by a qualified electrician is recommended for optimal safety.
- Residential: Homes, apartments, and small buildings
- Commercial: Offices and retail spaces
- Industrial: Light industrial applications requiring circuit protection
- Complies with AS/NZS 60947-2 for circuit protection devices.
- RoHS and REACH compliant, contributing to reduced environmental impact.
2 years warranty against manufacturing defects.
The Hager MCB 1P 10kA C-125A 1.5M is available now for immediate purchase. Ideal for residential, commercial, and industrial applications requiring reliable circuit protection.
