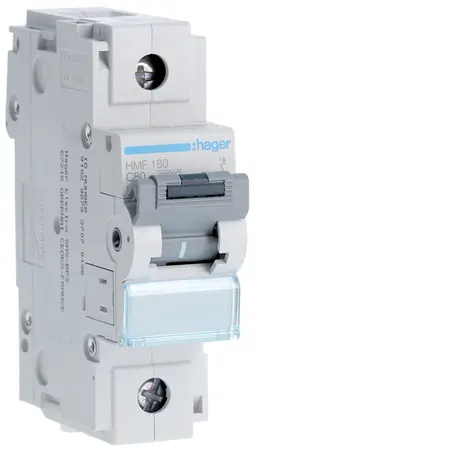

MCB 1P 10kA C-80A | Screw Terminal | Compact Design by Hager

BRAND: :hager
SKU: HMF180T
$114.90 List price: $147.00
+
Miniature circuit breaker with 1 pole and 10kA breaking capacity—ideal for residential, commercial, and light industrial applications. Built for safety and reliability, with easy screw terminal installation.

Product Name/Title: MCB 1P 10kA C-80A 1.5M

Brand: Hager

SKU: HMF180T

Alternatively Known As: Miniature Circuit Breaker, MCB, Circuit Protection Device

Technical Specifications
  • Type of pole: 1P
  • Rated operational voltage: 240 - 415 V
  • Rated insulation voltage: 500 V
  • Rated impulse withstand voltage: 6000 V
  • Frequency: 50 - 60 Hz
  • Rated current: 80 A
  • Rated short-circuit breaking capacity: 10 kA
  • Electric endurance: 4000 cycles
  • Mechanical operations: 20000 cycles
  • Cross-section for massive conductors: 1 - 70 mm²
  • Cross-section for flexible conductors: 1 - 50 mm²
  • Dimensions (H x L x W): 90mm x 70mm x 27mm
  • Weight: 0.5 kg
Key Features
  • 1 Pole configuration with C curve for standard applications.
  • Rated current of 80A and breaking capacity of 10kA.
  • Screw terminal connections for easy installation.
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Residential: Homes, apartments, and small buildings
  • Commercial: Offices and retail spaces
  • Industrial: Light industrial applications requiring circuit protection
Standards & Compliance
  • Complies with AS/NZS 60898 for safety and performance standards.
Environmental Benefits
  • RoHS and REACH compliant, contributing to reduced environmental impact.
Warranty Information

2 years warranty against manufacturing defects.

Available Now

The Hager MCB 1P 10kA C-80A 1.5M is available now for immediate purchase. Ideal for residential, commercial, and industrial applications.

HMF180T (HMF180T, 109 Kb) [Download]

(PEP_HAGE-00928-V02.01-EN.pdf, 40,154 Kb) [Download]

reach_declaration_HMF180T5.pdf (reach_declaration_HMF180T5.pdf, 103 Kb) [Download]

rohs_declaration_HMF180T5.pdf (rohs_declaration_HMF180T5.pdf, 104 Kb) [Download]

(DECLARATION_21_2310_07_21.pdf, 101 Kb) [Download]

(DECLARATION_23_3059_05_2023.pdf, 439 Kb) [Download]

(DECLARATION_23_2310_05_23.pdf, 455 Kb) [Download]
