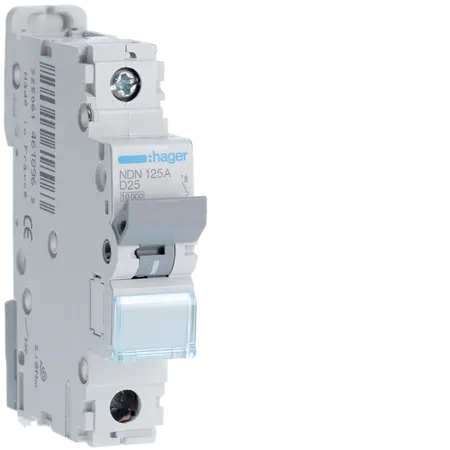

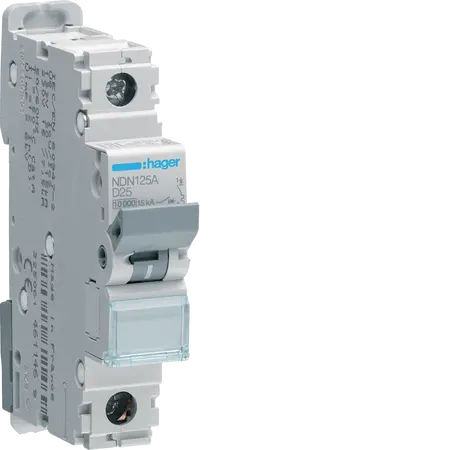

MCB 1P 10kA D-25A | Compact DIN Rail | IP20 by Hager

BRAND: :hager
SKU: NDN125A
$62.00 List price: $79.30
+ −
30 Days Return Delivery Options
Miniature circuit breaker with 25A rated current and 10kA breaking capacity—ideal for residential, commercial, and light industrial applications. Built for safety and reliability, with compact DIN rail mounting and IP20 protection.

Product Name/Title: MCB 1P 10kA/15kA D-25A 1M

Brand: Hager

SKU: NDN125A

Alternatively Known As: Miniature Circuit Breaker, MCB, Circuit Protection Device

Technical Specifications
  • Rated current: 25 A
  • Rated short-circuit breaking capacity: 10 kA
  • Rated operational voltage: 230 - 400 V
  • Rated insulation voltage: 500 V
  • Rated impulse withstand voltage: 6000 V
  • Frequency: 50 - 60 Hz
  • Ingress Protection (IP) class: IP20
  • Operating temperature: -25 to 70 °C
  • Total power loss under IN: 3.37 W
  • Electrical endurance: 4000 cycles
  • Mechanical operations: 20000 cycles
  • Dimensions (H x L x W): 83mm x 70mm x 17.5mm
  • Weight: 0.5 kg
Key Features
  • Rated current of 25 A with a short-circuit breaking capacity of 10 kA.
  • Single pole design with a D curve for overload protection.
  • Compact size for DIN rail mounting.
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Residential: Homes, apartments, and small buildings
  • Commercial: Offices and retail spaces
  • Industrial: Light industrial applications requiring circuit protection
Standards & Compliance
  • Complies with AS/NZS 60898 for safety and performance standards.
Environmental Benefits
  • RoHS compliant, contributing to reduced environmental impact.
  • Commitment to improving environmental performance by reducing carbon footprint.
Warranty Information

2 years warranty against manufacturing defects.

Available Now

The Hager MCB 1P 10kA/15kA D-25A 1M is available now for immediate purchase. Ideal for residential, commercial, and industrial applications.

NDN125A (NDN125A, 122 Kb) [Download]

reach_declaration_NDN125A3.pdf (reach_declaration_NDN125A3.pdf, 103 Kb) [Download]

rohs_declaration_NDN125A3.pdf (rohs_declaration_NDN125A3.pdf, 104 Kb) [Download]

(NDN_MCBS_10KA_D.pdf, 92 Kb) [Download]

(TRANSFORMERPROTECTIONVALUEV2.pdf, 205 Kb) [Download]

(DECLARATION_24_3602_09_24.pdf, 650 Kb) [Download]

(DECLARATION_24_3594_09_24.pdf, 654 Kb) [Download]
