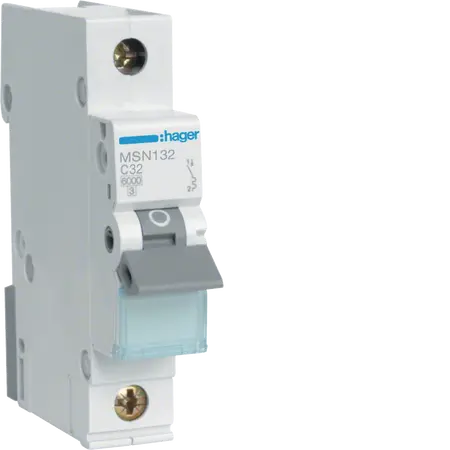

MCB 1P 6kA C-32A | IP20 Rated | -25 to 70°C | Compact Design by Hager

BRAND: :hager
SKU: MSN132
$9.00 List price: $11.50
+
Miniature circuit breaker with 6kA breaking capacity and 32A rated current—ideal for residential, commercial, and light industrial applications. Built for diverse climates, with IP20 protection and compact design for easy installation.

Product Name/Title: MCB 1P 6kA C-32A 1M

Brand: Hager

SKU: MSN132

Alternatively Known As: Miniature Circuit Breaker, MCB, Circuit Protection Device

Technical Specifications
  • Rated short-circuit breaking capacity: 6 kA
  • Rated operational voltage: 240 - 415 V
  • Frequency: 50 - 60 Hz
  • Nominal tightening torque: 2.80 Nm
  • Cross-section of input and output: 1 - 35 mm² for massive conductors, 1 - 25 mm² for flexible conductors
  • Operating temperature: -25 to 70 °C
  • Dimensions (H x L x W): 83mm x 70mm x 17.5mm
  • Weight: 0.5 kg
Key Features
  • Rated current of 32 A with a breaking capacity of 6 kA.
  • Suitable for use in various climates with an operating temperature range of -25 to 70 °C.
  • IP20 ingress protection for indoor use.
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Residential: Homes, apartments, and small buildings
  • Commercial: Offices and retail spaces
  • Industrial: Light industrial applications requiring circuit protection
Standards & Compliance
  • Complies with AS/NZS 3000 for electrical installations.
Environmental Benefits
  • RoHS and REACH compliant, contributing to reduced environmental impact.
Warranty Information

2 years warranty against manufacturing defects.

Available Now

The Hager MCB 1P 6kA C-32A 1M is available now for immediate purchase. Ideal for residential, commercial, and industrial applications.

MSN132 (MSN132, 116 Kb) [Download]

reach_declaration_MSN1322.pdf (reach_declaration_MSN1322.pdf, 103 Kb) [Download]

rohs_declaration_MSN1322.pdf (rohs_declaration_MSN1322.pdf, 104 Kb) [Download]

(MSN1_2_3XX_MCBS_6KA_C.pdf, 110 Kb) [Download]

(DECLARATION_24_3601_10_24.pdf, 537 Kb) [Download]

(DECLARATION_24_3593_10_24.pdf, 542 Kb) [Download]
