Trade Discount 22%
MCB 1P 6kA D-40A | IP20 Rated | -25°C to 70°C | Compact Design by Hager
Miniature circuit breaker with 40A current and 6kA breaking capacity—ideal for residential and commercial electrical installations. Built for safety, with IP20 rating and wide temperature range.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

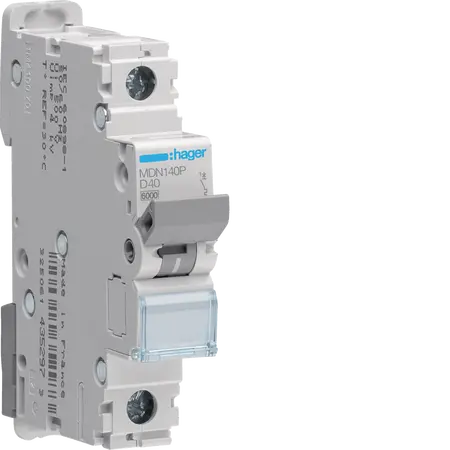

Product Name/Title: MCB 1P 6kA D-40A 1M
Brand: Hager
SKU: MDN140P
Alternatively Known As: Miniature Circuit Breaker, MCB, Circuit Protection Device
Technical Specifications
- Rated operational voltage: 240-415 V
- Rated insulation voltage: 500 V
- Rated impulse withstand voltage: 4000 V
- Frequency: 50-60 Hz
- Nominal tightening torque: 2.80 Nm
- Cross-section for massive conductors: 1-35 mm²
- Cross-section for flexible conductors: 1-25 mm²
- Total power loss under IN: 4.84 W
- Dimensions (H x L x W): 85mm x 70mm x 18mm
- Weight: 0.5 kg
Key Features
- Rated current of 40 A with a short-circuit breaking capacity of 6 kA.
- Wide operational temperature range from -25°C to 70°C.
- IP20 ingress protection rating.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Residential: Homes, apartments, and electrical installations
- Commercial: Offices, retail spaces, and industrial applications
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installations.
Environmental Benefits
- RoHS compliant, contributing to reduced environmental impact.
- Commitment to improving environmental performance by reducing carbon footprint.
Warranty Information
2 years warranty against manufacturing defects.
Available Now
The Hager MCB 1P 6kA D-40A 1M is available now for immediate purchase. Ideal for residential and commercial electrical installations.
