MCB 2P 10kA/15kA D-32A | Modular Installation | IP20 Rated by Hager
Miniature circuit breaker with 32A rated current and 15kA breaking capacity—ideal for residential, commercial, and light industrial applications. Built for modular installation, with IP20 rating for reliable circuit protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

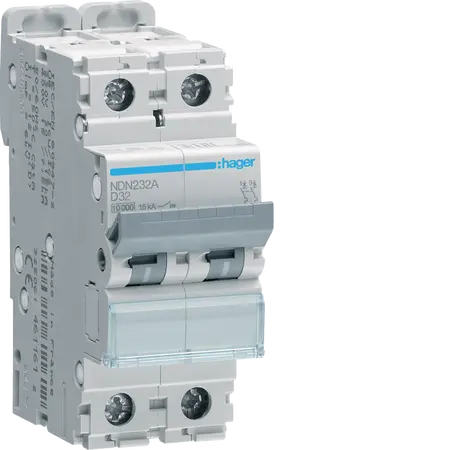

Product Name/Title: MCB 2P 10kA/15kA D-32A 2M
Brand: Hager
SKU: NDN232A
Alternatively Known As: Miniature Circuit Breaker, MCB, Circuit Protection Device
Technical Specifications
- Rated current: 32 A
- Rated ultimate short-circuit breaking capacity: 15 kA
- Rated insulation voltage: 500 V
- Rated impulse withstand voltage: 6000 V
- Frequency: 50 - 60 Hz
- Ingress Protection (IP) class: IP20
- Total power loss under IN: 8 W
- Electric endurance: 4000 cycles
- Mechanical operations: 20000
- Dimensions (H x L x W): 83mm x 70mm x 35mm
- Weight: 0.5 kg
Key Features
- Rated current of 32 A with a breaking capacity of 15 kA.
- Designed for modular installation with 2 poles.
- Wide operating temperature range from -25°C to 70°C.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Residential: Homes, apartments, and small buildings
- Commercial: Offices and retail spaces
- Industrial: Light industrial applications requiring circuit protection
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installations.
Environmental Benefits
- RoHS compliant, contributing to reduced environmental impact.
- Commitment to improving environmental performance by reducing carbon footprint.
Warranty Information
2 years warranty against manufacturing defects.
Available Now
The Hager MCB 2P 10kA/15kA D-32A 2M is available now for immediate purchase. Ideal for residential, commercial, and industrial applications requiring reliable circuit protection.
